Center Enamel Provides Glass-Lined Steel Potable Water Storage Tanks for Customers Around the World

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C,T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Adhesion: 3,450N/cm
Service Life: ≥30 Years Steel Grade: ART 310
Size Of Panel: 2.4M * 1.2M Capactiy Available: 20 M3 To 20,000 M3
Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height
Easy To Cle: Smooth, Glossy, Inert, Anti-adhesion Warranty Period: 2 Years Free Of Charge
Impact Resistance: Excellent Foundation: Concrete Or Glass Fused Steel
Installation: By Jacking Machine Or Steel Pole, Fast In Installation Chemical Resistance: Excellent
Highlight:

2400mmX1200m Plate Potable Water Storage Tanks

,

20000m3 Potable Water Storage Tanks

Product Description

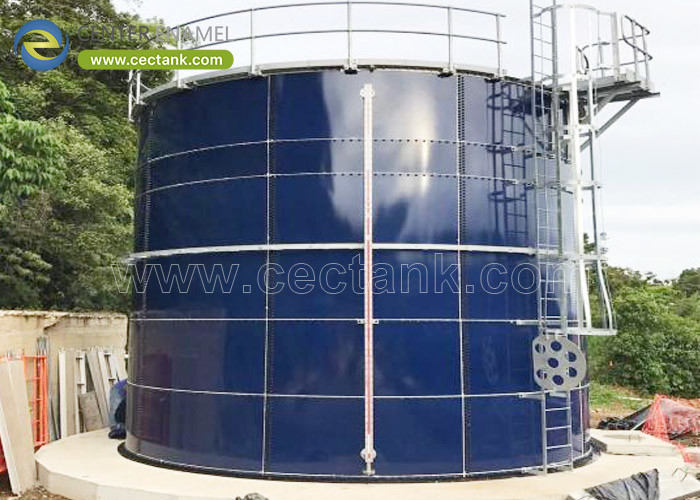

Center Enamel Provides Glass-Lined Steel Potable Water Storage Tanks for Customers Around the World

Access to safe, clean drinking water is a fundamental requirement for communities and industries worldwide. However, ensuring water purity from the treatment plant to the tap demands containment infrastructure that is structurally robust, completely hygienic, and highly resistant to environmental degradation. Shijiazhuang Zhengzhong Technology Co., Ltd., globally recognized as Center Enamel, is leading the industry by providing cutting-edge Glass-Lined Steel Potable Water Storage Tanks to customers around the world.

By seamlessly fusing the inherent tensile strength of high-grade carbon steel with the inert, corrosion-resistant properties of glass, Center Enamel delivers a storage solution that guarantees the purity, longevity, and sustainability of the world’s most precious resource.

The Global Challenge of Potable Water Storage

International municipalities and industrial facilities face distinct challenges when developing potable water infrastructure across diverse geographies:

  1. Aggressive Climates and Corrosion: Tanks must endure varying extremes—from high-humidity tropical zones to sub-zero climates—without succumbing to exterior weathering or interior rust.

  2. Strict Health and Safety Mandates: Treated water must remain completely free of metallic ion leaching, bacterial growth, and biofilm formation.

  3. Logistical Bottlenecks in Remote Regions: Traditional concrete or field-welded steel tanks require massive heavy machinery and long construction times, making them impractical for remote or highly congested global sites.

Engineering Advantages of Center Enamel Glass-Lined Steel Tanks
1. Uncompromising Purity & Global Certifications

Center Enamel’s Glass-Lined Steel (also known as Glass-Fused-to-Steel or GFS) tanks are engineered to prevent any leaching of harmful substances. They hold elite international public health certifications, including NSF/ANSI 61 and UK WRAS approvals. This provides global customers with the ultimate reassurance that stored water will not be compromised by the tank material.

2. Superior Glass-Steel Fusion Technology

The manufacturing process involves fusing glass frit onto structural steel plates at temperatures exceeding 820°C. The resulting ultra-smooth, non-porous finish provides a virtually impenetrable barrier against chemical corrosion, hard water scaling, and environmental degradation, offering a service life that often exceeds 30 years with minimal maintenance.

3. Modular Bolted Design for Worldwide Export

Because Center Enamel tanks utilize a modular bolted panel design, they can be packed tightly into standard shipping containers and transported cost-effectively to anywhere in the world. Once on-site, the prefabricated panels are rapidly assembled using self-locking bolts and specialized sealants, entirely eliminating the need for heavy welding equipment or extended concrete curing delays.

Comparative Matrix: Global Water Storage Technologies
Performance Metric Center Enamel Glass-Lined Steel Tank Traditional Welded Painted Steel Cast-in-Place Concrete
Potable Water Hygiene Superior (Inert glass prevents biofilm and leaching) Low (Porous paint coatings degrade and harbor bacteria) Moderate (Micro-cracking can lead to contamination)
Global Export & Logistics Highly Efficient (Flat-packed for standard shipping containers) Difficult (Requires on-site fabrication and welding) Impractical (Requires locally sourced bulk materials)
Installation Speed Fast (Prefabricated modular panels, rapid bolt-up) Slow (Extended field welding and X-ray testing) Very Slow (Months of formwork and curing)
Maintenance Burden Extremely Low (No interior repainting required) Very High (Requires periodic draining and recoating) Moderate (Requires crack sealing and waterproofing)
A Trusted Partner in Over 100 Countries

As the first and most experienced manufacturer of Glass-Fused-to-Steel tanks in Asia, Center Enamel has built a reputation for unparalleled quality and customer satisfaction. Operating under strict adherence to AWWA D103-09 and ISO 28765 standards, the company’s tanks have been successfully exported to over 100 countries.

From vital municipal supply systems in Australia and Canada to drinking water projects in Costa Rica, Panama, and Namibia, Center Enamel collaborates with both local utilities and major international corporations (such as Coca-Cola and Veolia) to deliver world-class water security.

Frequently Asked Questions (FAQ)
Q: What makes Glass-Lined Steel tanks safe for global drinking water projects?

A: Glass-Lined Steel tanks feature an inert, ultra-smooth interior surface that completely resists rust, chemical attack, and biofilm accumulation. Furthermore, Center Enamel tanks are globally certified under stringent public health standards like NSF/ANSI 61 and WRAS, guaranteeing zero toxic leaching.

Q: Can Center Enamel tanks be installed in remote or difficult-to-access locations?

A: Yes. The modular bolted design allows the steel panels to be easily transported in standard shipping containers and assembled on-site using basic tools. This eliminates the need for massive cranes, large concrete mixer fleets, or highly specialized welding crews, making them ideal for remote rural communities worldwide.

Q: What international engineering standards do these tanks meet?

A: Center Enamel engineers and manufactures its storage tanks in strict compliance with premier international standards, including AWWA D103-09 (USA), ISO 28765, OSHA, and Eurocode.

Q: How long will a Center Enamel Glass-Lined Potable Water Tank last?

A: Built to withstand harsh global environments, Center Enamel Glass-Lined Steel tanks are engineered for an exceptional operational lifespan exceeding 30 years, requiring minimal maintenance compared to traditional welded or concrete tanks.
