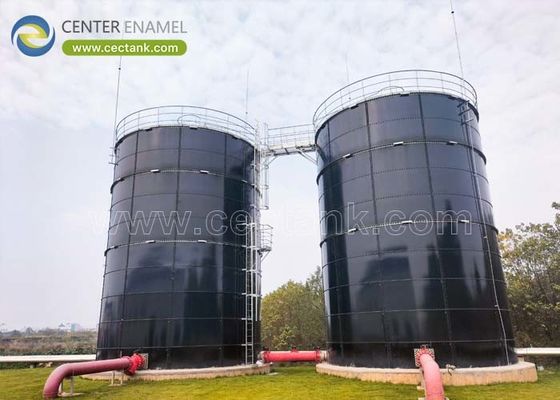

Glass-Fused-to-Steel Fire Protection Water Tanks: Ensuring Safety and Reliability for Critical Fire Suppression Systems

For industrial and commercial fire safety, a Glass-Fused-to-Steel (GFS) Fire Protection Water Tank provides the most reliable and maintenance-free storage solution for critical suppression systems. When an automatic fire sprinkler system triggers, the pump must instantly pull clean, debris-free water. Traditional steel or concrete tanks often degrade internally, shedding rust or mineral scale into the pipe network, which can disable sprinklers at the exact moment they are needed.

Center Enamel solves this by fusing high-performance silica-glass enamel onto both sides of high-tensile steel panels at temperatures exceeding 800°C. This chemical fusion creates a finish that is completely impervious to the environment. Because the glass surface is ultra-smooth and chemically inert, it refuses to harbor biofilms or mineral buildup, ensuring the water supply remains pristine, compliant, and ready for immediate delivery.

To pass inspections by an Authority Having Jurisdiction (AHJ), a GFS tank must be structurally calculated to withstand the massive pressure of a full water volume while resisting wind and seismic forces.

The tank walls must resist the outward radial force generated by the water column, calculated as:

Center Enamel’s bolted panel design uses high-tensile structural bolts and heavy-duty EPDM gaskets to distribute these pressures evenly, ensuring the tank maintains its shape under maximum load without risking seal leaks.

Beyond the shell, Center Enamel outfits its GFS fire water tanks with mission-critical components that meet NFPA standards:

• Anti-Vortex Plates: These prevent the fire pump from drawing air into the suction line, which is essential for maintaining consistent water pressure during rapid suppression discharge.
• Airtight Ventilation Systems: Equipped with high-capacity screened vents, these allow the tank to breathe during rapid filling or pumping without allowing debris or environmental contaminants into the water supply.
• Integrated Heat Tracing: For regions prone to freezing, external insulation panels and internal heater loops keep the reservoir above the minimum required temperature, ensuring the system remains operational even in severe weather.

This sizing utility allows safety engineers to estimate the necessary tank volume and structural footprint based on project-specific suppression demands.

Center Enamel ensures absolute reliability by removing the most critical manufacturing steps from the unpredictable field environment:

• High-Voltage Holiday Testing: Every GFS panel undergoes an automated spark test at 1500V–2500V before shipment. This ensures that the glass coating is completely continuous, leaving no exposed steel points for corrosion to take root.
• Standardized Engineering: All tanks are engineered to exceed AWWA D103-09 and international seismic loading codes, providing a high degree of confidence for site developers and insurance providers.
• Future-Proof Expansion: Because the tank is modular, if a facility’s fire suppression requirements grow, the shell can be unbolted and upgraded by adding a new tier of panels, significantly extending the life of the infrastructure investment.

Standard liquid-epoxy or paint-lined tanks require regular surface inspections to check for "holidays" or thin spots where rust can begin. Because GFS uses an inorganic, glass-fused shield that is chemically bonded to the steel, it simply does not degrade in the presence of water or atmosphere, eliminating the need for periodic recoating or surface restoration.

No. Center Enamel GFS fire water tanks are fully compliant with NSF/ANSI 61 standards. The glass surface is completely inert and does not release any chemicals, heavy metals, or organic compounds into the stored water, ensuring the tank remains compatible with potable water supplies if the fire network is linked to the municipal grid.

The tank shell is designed using finite element analysis (FEA) to account for rapid drawdown scenarios. When a fire pump draws water, the tank structure must maintain its stability without excessive buckling. The high-tensile steel panels, combined with a rigid top-edge reinforcement and specialized foundation anchoring, ensure the structure remains perfectly stable under these emergency conditions.
