Selecting a Chilled Water Buffer Vessel Manufacturer: Pressure, Volume, Lead Time

A buffer vessel is a smaller, faster-moving purchase than a TES tank, but the manufacturer choice still hinges on three things: the pressure class they can certify, how closely they can match your calculated volume, and how fast they can deliver. This article is a buying checklist for buffer vessels specifically.

To select a chilled water buffer vessel manufacturer, confirm the pressure class they certify (atmospheric versus code-rated), their ability to match the calculated buffer volume from modular panels rather than rounding to a catalogue size, and their lead time for coated, bolted delivery. The buffer vessel is small, so lead time and fit often decide the award.

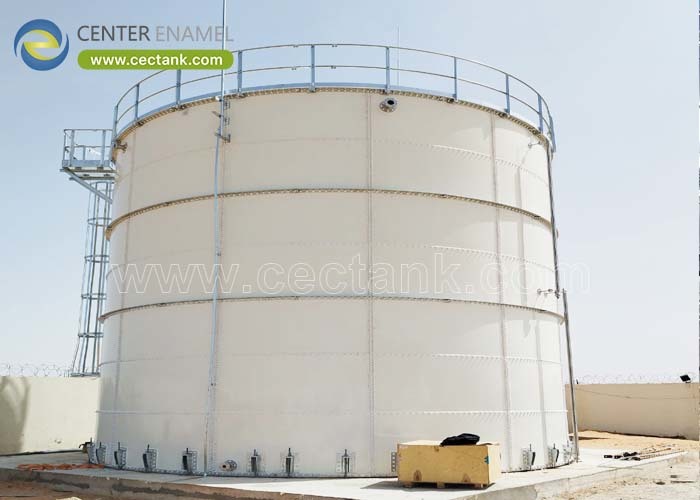

Decide atmospheric versus pressurized up front, because the manufacturer's certification differs. Atmospheric buffers are simpler; pressurized ones need code-rated nozzles and reinforcement. The Italy Sardinia process tank (2025, 30,549 m3) and Mozambique buffer tank (2019, 316 m3) are coated tanks we delivered, analogous evidence of build range, not data-center projects.

• Atmospheric vs pressurized decided first.
• Code-rated nozzles if pressurized.
• Certification differs by class.
• Class sets the supplier scope.

Buffer volume is calculated, not chosen from a catalogue. A manufacturer using bolted modular panels can match the calculated volume closely, avoiding the waste of over-sizing or the risk of under-sizing to a standard. This flexibility is a real selection criterion for buffers.

• Volume is calculated, not standard.
• Modular panels match the figure.
• Avoid over/under to catalogue.
• Flexibility is a criterion.

Buffers often sit on a mechanical-room critical path. Bolted panels ship flat and erect fast; a comparable project was set by 6 people in 12 days. Confirm the supplier's coating lead time and local erection support, because the buffer is small but urgent.

• Often on critical path.
• Flat-pack, fast erection.
• 6-person / 12-day comparable.
• Coating lead time matters.

For chilled, wet, continuous service, the lining decides life. GFS or FBE gives an inert, holiday-tested surface; stainless suits compact or pure loops. Require the holiday test record as part of QA.

• GFS / FBE inert lining.
• Stainless for compact or pure.
• Holiday test record required.
• Lining sets service life.

We have no data-center buffer vessel in this library. The coated and buffer tanks cited (Italy Sardinia 30,549 m3, Mozambique 316 m3) are analogous industrial deliveries, not data-center projects.

• No data-center buffer in library.
• Citations analogous, not claims.
• Buffer-to-large range real.
• Lead time needs your region.

Decide from your loop; atmospheric is simpler, pressurized needs code-rated nozzles. The manufacturer's certification must cover your class.

With bolted modular panels, yes, closely, so you avoid over-sizing to a catalogue size or risking under-size.

Coated bolted panels ship flat and erect in days; a comparable project was set by 6 people in 12 days, though coating lead time varies.

GFS or FBE for corrosion resistance in continuous wet service; stainless for compact or high-purity loops.

Yes, proportionally: material certs, holiday test on coating, and torque verification still apply.

Not in our project library. We cite coated and buffer tanks at other clients as analogous capability, not data-center deliveries.

Selecting a buffer vessel manufacturer is a pressure, volume, and lead-time decision more than a grand design one. Confirm the certified pressure class, choose a supplier who can match your calculated volume from modular panels rather than rounding, and weigh coating and erection lead time because the buffer is small but often urgent. The lining still decides service life, so require the holiday test record as part of QA.
