Transforming Egypt Food Waste into Biogas with CSTR Process and CBG Plant EPC Solutions

Egypt faces mounting pressure to manage its growing organic waste while diversifying its energy mix. Converting food waste into biogas through anaerobic digestion offers a sustainable pathway. This article examines the food waste-to-biogas process in Egypt, focusing on the CSTR Process, GFS Tanks, and the role of a professional CBG Plant EPC Solutions provider for delivering turnkey compressed biogas facilities.

Food waste in Egypt originates from multiple points across the supply chain. Key sources include agricultural post-harvest losses, food processing facilities, restaurants, and household waste. The composition of Egyptian food waste is influenced by local dietary habits and seasonal availability of produce, containing significant proportions of carbohydrates, proteins, and lipids that make it an excellent substrate for anaerobic digestion.

In urban areas like Cairo and Alexandria, municipal solid waste contains a substantial organic fraction. The C/N ratio of food waste is a significant parameter for assessing its potential for energy recovery, with Egyptian food waste typically exhibiting high volatile solids content of approximately 85%. The growing volume of food waste generation has prompted interest in waste-to-energy solutions, particularly biogas production and compressed biogas (CBG) development.

The conversion of food waste to biogas follows the established anaerobic digestion pathway. This biological process breaks down organic matter in an oxygen-free environment through four stages: hydrolysis, acidogenesis, acetogenesis, and methanogenesis. During hydrolysis, complex molecules such as carbohydrates, proteins, and fats are broken down into simpler compounds like sugars and amino acids.

In the subsequent acidogenesis stage, these simpler compounds are converted into volatile fatty acids, alcohols, and gases. Acetogenesis further converts these products into acetic acid, hydrogen, and carbon dioxide. The final methanogenesis stage sees methanogenic archaea produce biogas primarily composed of methane (CH₄) and carbon dioxide (CO₂). The biogas can be upgraded to biomethane and compressed into CBG for use as a clean transportation fuel.

The Continuous Stirred-Tank Reactor is a core processing unit for converting food waste into biogas. The CSTR reactor is a closed tank equipped with a mechanical stirring device that ensures fermentation raw materials and microorganisms are fully mixed in a closed environment to produce biogas. The mechanical mixer, agitator shaft, and paddles create a completely mixed state, essential for efficient digestion.

The CSTR Process is well-suited to handle the high suspended solids and high concentration of organic wastewater typical of food waste streams. By feeding continuously or semi-continuously at a constant temperature, the system maintains stable biological conditions. Studies have demonstrated that CSTR systems are capable of achieving considerable biogas yields and productivity from food waste. The system can be designed for single-stage fermentation focused on methane production or two-stage systems for hydrogen and methane production.

Glass-Fused-to-Steel tanks are the premium coating technology for biogas applications. The manufacturing process involves fusing high-quality glass enamel onto steel plates at 820°C–930°C, creating an inert, inorganic bond that combines the strength of steel with the corrosion resistance of glass. This provides superior protection against the corrosive environment inside anaerobic digesters.

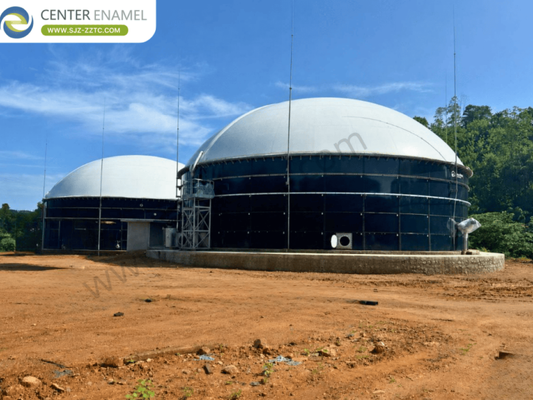

For biogas collection, the Double Membrane Roof is the preferred solution. Its air-tightness ensures safe biogas containment and effective odour control. The design also integrates gas storage capacity, saving valuable floor space compared to traditional ground-mounted gas holders. The combination of GFS Tanks with Double Membrane Roofs provides a robust, durable infrastructure for CBG plant operations.

Center Enamel offers a diverse range of storage tank cover solutions:

• Aluminum Geodesic Dome Roof: Advanced corrosion resistance and expansive clear span capability for efficient construction.
• Glass-Fused-to-Steel Roof: Air-tightness for pressurized structures and odour control in demanding applications.
• Aluminum Alloy Trough Deck Roof: An economical option for wastewater storage where air-tightness is not required.
• Stainless Steel Roof: Super anti-corrosion performance and long service life for harsh environments.
• FRP Roof: Suitable for non-airtight applications such as drinking water and wastewater storage.

A complete CBG plant requires a range of auxiliary equipment:

• Gas Holder: For storing biogas prior to upgrading or use.
• Black Membrane: Used for covering storage ponds or as gas collection systems.
• Solid-liquid Separator: Separates digestate into solid and liquid fractions.
• Torch System: Safely combusts excess biogas during plant upsets or maintenance.
• Lifting Pump: Transfers liquids and slurries throughout the facility.
• Dehydration and Desulfurization Tank: Removes moisture and hydrogen sulfide for biogas upgrading.
• Screw Sludge Dewatering Machine: Further processes solid digestate for agricultural use.

Center Enamel is a professional EPC Contractor delivering comprehensive waste-to-energy solutions. Their expertise includes:

• Full EPC Services: Managing the entire project lifecycle from feasibility studies and engineering design through procurement, construction, and commissioning.
• Integrated Project Management: Bundling engineering design, material procurement, and construction operations under a single framework to eliminate delays and cost overruns.
• Regulatory Navigation: Assisting with compliance approvals from regulatory bodies to accelerate project timelines.
• Operational Support: Providing operations and maintenance services to ensure reliable plant performance post-commissioning.
• Global Quality Standards: Manufacturing certified to ISO 9001, NSF/ANSI 61, and AWWA D103-09, with projects completed across more than 100 countries.

Egypt has significant potential to convert its food waste into renewable energy through the CSTR Process. Supported by robust GFS Tanks and auxiliary equipment, and delivered by an experienced CBG Plant EPC Solutions provider, the country can build a sustainable circular economy that reduces landfill burden and generates clean fuel. Center Enamel's comprehensive EPC capabilities position them to support Egypt's transition to a waste-to-energy future.
