Transforming South Africa Municipal Sludge to Biogas with Advanced GFS Tanks and CBG Plant EPC Solutions

South Africa, with its rapidly growing urban population and expanding wastewater treatment infrastructure, faces an urgent need for sustainable municipal sludge management. The country generates significant volumes of sewage sludge that, if left untreated, poses environmental and public health risks. This article explores how modern CBG Plant EPC Solutions, utilizing robust GFS Tanks and proven anaerobic digestion technology, are converting this waste challenge into a renewable energy opportunity, supporting South Africa's energy security and circular economy goals.

Municipal sludge is the organic semi-solid residue produced during the primary and secondary treatment of domestic and commercial wastewater. It consists of primary sludge from solids settling and secondary sludge from biological treatment processes. In South Africa, traditional sludge management has often relied on methods such as landfilling, incineration, or limited agricultural application. These approaches pose several challenges: landfills require valuable space and risk groundwater contamination and methane emissions; incineration is energy-intensive and costly; and agricultural use requires careful monitoring to prevent soil contamination. With tightening environmental regulations and the need for resource recovery, there is a growing imperative to adopt more sustainable solutions that can transform this liability into a valuable asset.

The conversion of municipal sludge into biogas occurs through anaerobic digestion, a natural biological process where microorganisms break down organic matter in an oxygen-free environment. This process yields biogas, a methane-rich renewable energy source typically containing 55-70% methane and 30-45% carbon dioxide. The advantages are substantial: it reduces sludge volume by up to 50-70%, stabilizes the waste by destroying pathogens and organic content, and generates clean energy that can power treatment plants, generate electricity, or be upgraded to Compressed Biogas (CBG) for vehicle fuel. The nutrient-rich digestate byproduct can also be repurposed as an organic fertilizer, supporting agricultural productivity and completing the circular economy loop.

At the heart of a modern sludge-to-biogas facility is the Continuous Stirred-Tank Reactor (CSTR), a proven and preferred technology for treating high-solids municipal feedstocks. The CSTR system operates by continuously feeding sludge into a sealed, heated tank equipped with a mechanical stirring device that maintains a "completely mixed" state. This constant agitation is crucial for maximizing biogas yield by ensuring uniform temperature, preventing solids from settling and scum layers from forming, and promoting intimate contact between anaerobic microorganisms and organic material. Research has shown that CSTRs achieve efficient volatile solids removal of approximately 51% with food waste substrates and demonstrate stable long-term operation. Studies also indicate that co-digesting municipal sludge with other organic wastes can enhance methane production by improving the carbon-to-nitrogen ratio and providing additional nutrients for microbial activity.

For the demanding environment of an anaerobic digester, storage infrastructure must withstand highly corrosive conditions. Glass-Fused-to-Steel (GFS) Tanks are the premium solution for these applications. Manufactured by fusing glass to steel at temperatures of 820°C-930°C, these tanks create an inert, inorganic bond that combines the strength of steel with outstanding corrosion resistance. This robust coating protects against the organic acids and hydrogen sulfide generated during biogas production, ensuring a service life exceeding 30 years with minimal maintenance.

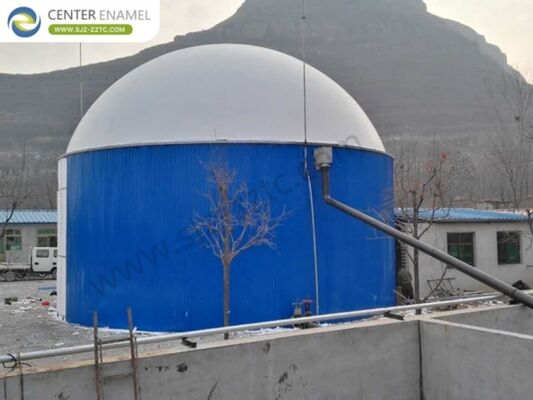

Complementing the GFS tank is the Double Membrane Roof, the preferred roof solution for biogas collection under normal operating conditions. This innovative design integrates the gas holder directly on top of the tank, offering significant cost optimization and space efficiency. It eliminates the need for a separate, ground-mounted gas holder, reducing the plant's overall footprint and foundation construction costs while providing superior gas-tight storage for efficient biogas capture.

Beyond GFS tanks and Double Membrane Roofs, Center Enamel offers a diverse portfolio of engineered storage structures to meet varied project requirements:

• Galvanized Steel Tanks: Featuring a tough, wear-resistant protective coating for water and wastewater applications.
• Fusion Bonded Epoxy (FBE) Tanks: Developed with AkzoNobel for superior chemical resistance.
• Stainless Steel Tanks: Constructed from premium AISI 304/316 grades for high-purity or aggressive environment applications.

• Aluminum Geodesic Dome Roof: Providing advanced corrosion resistance and expansive clear-span capability.
• Glass-Fused-to-Steel Roof: An air-tight option for pressurized structures and odor control.
• Aluminum Alloy Trough Deck Roof: An economical choice for applications not requiring full air-tightness.

A fully functional and efficient biogas plant relies on a suite of auxiliary equipment to ensure safe, reliable, and optimized operation:

• Gas Holder: For storing produced biogas to balance supply with fluctuating demand.
• Torch System: A safety flare that automatically burns excess gas during maintenance or when production exceeds usage.
• Solid-liquid Separator: For dewatering digestate into solid organic fertilizer and liquid fertilizer.
• Lifting Pump: For transporting sludge and digestate between process stages.
• Dehydration and Desulfurization Tank: For removing corrosive hydrogen sulfide (H₂S) and moisture from raw biogas to protect downstream equipment.
• Screw Sludge Dewatering Machine: For further volume reduction of processed biosolids.

Center Enamel delivers comprehensive CBG Plant EPC Solutions, serving as a single-source partner for biogas projects from concept to commissioning. With a global footprint covering over 100 countries and 30,000+ successful projects, the company brings extensive international expertise to South Africa's renewable energy sector. Key advantages of this integrated approach include:

• Single-Point Accountability: Clients work with one contractor for the entire project scope, simplifying communication and risk management.
• Full-Spectrum Expertise: Providing process design, equipment manufacturing, and turnkey construction services.
• Global Standards Compliance: All equipment meets stringent international standards including ISO 9001, AWWA D103, and NSF/ANSI 61.
• Proven Technology Integration: Expertise in CSTR, UASB, and other advanced anaerobic processes tailored to local waste characteristics.
• Comprehensive After-Sales Support: 24/7 technical support, remote diagnostics, and on-site inspection services.

South Africa's pursuit of sustainable municipal sludge management through biogas production represents a significant step toward energy independence and environmental stewardship. By integrating core CSTR technology with superior containment solutions such as GFS Tanks and Double Membrane Roofs, the nation can effectively minimize waste, generate renewable energy, and support agricultural productivity through digestate utilization. As a leading provider of CBG Plant EPC Solutions, Center Enamel is well-positioned to support South Africa's continued growth in this vital sector.
