Leading Biogas Project Contractor for Municipal Sludge to Biogas in Egypt

Egypt, with a population exceeding 110 million and rapidly growing urban centers like Cairo, Alexandria, and Giza, faces an urgent need for sustainable municipal waste and wastewater management. As the country expands its wastewater treatment coverage, sludge production is rapidly increasing. This article explores how converting municipal sludge to biogas using advanced technologies, including the Continuous Stirred-Tank Reactor (CSTR) and robust GFS Tanks, provides a powerful waste-to-energy solution. It highlights the critical role of a trusted Biogas Project Contractor in delivering these innovative projects to support Egypt's sustainable development.

Municipal sludge is the semi-solid residue generated during the primary and secondary treatment of municipal wastewater. This organic-rich material is a major byproduct of the water reclamation process. In Egypt, sludge is generally classified as hazardous waste due to its high content of various bacterial species, pathogenic microorganisms, nitrogen, phosphorus, organic and inorganic micropollutants. Traditional treatment and disposal methods have often relied on landfilling or discharge, which pose severe environmental risks, including groundwater contamination, odor problems, and the release of greenhouse gases. As environmental regulations tighten and urban land becomes scarce, there is a growing imperative to adopt more sustainable and advanced solutions.

Anaerobic digestion offers a biologically-based solution that effectively addresses the challenges of sludge management while generating renewable energy. The process entails the conversion of biodegradable materials into biogas, composed primarily of methane (60-70%) and carbon dioxide (30-40%), alongside digestate, which consists of innocuous liquid and solid residues. The advantages are substantial: it reduces sludge volume, stabilizes the material by destroying pathogens and odors, and generates a renewable fuel that can produce electricity, heat, or be upgraded for vehicle use. Co-digestion strategies, such as combining municipal sludge with fruit and vegetable waste, have been shown to enhance biogas production by improving the carbon-to-nitrogen ratio.

The Continuous Stirred-Tank Reactor (CSTR) is a proven and highly effective technology for the anaerobic digestion of municipal sludge. The CSTR is designed to handle high-solids feedstocks and operates by continuously or semi-continuously feeding the sludge into a sealed reactor where a mechanical stirring device maintains a completely mixed state. This constant agitation is crucial for performance, ensuring uniform temperature, preventing solids from settling and a scum layer from forming, and maximizing the contact between the microorganisms and the organic substrate. Studies have shown that CSTRs can achieve high specific methane production and significantly reduce hydrogen sulfide levels through co-digestion strategies.

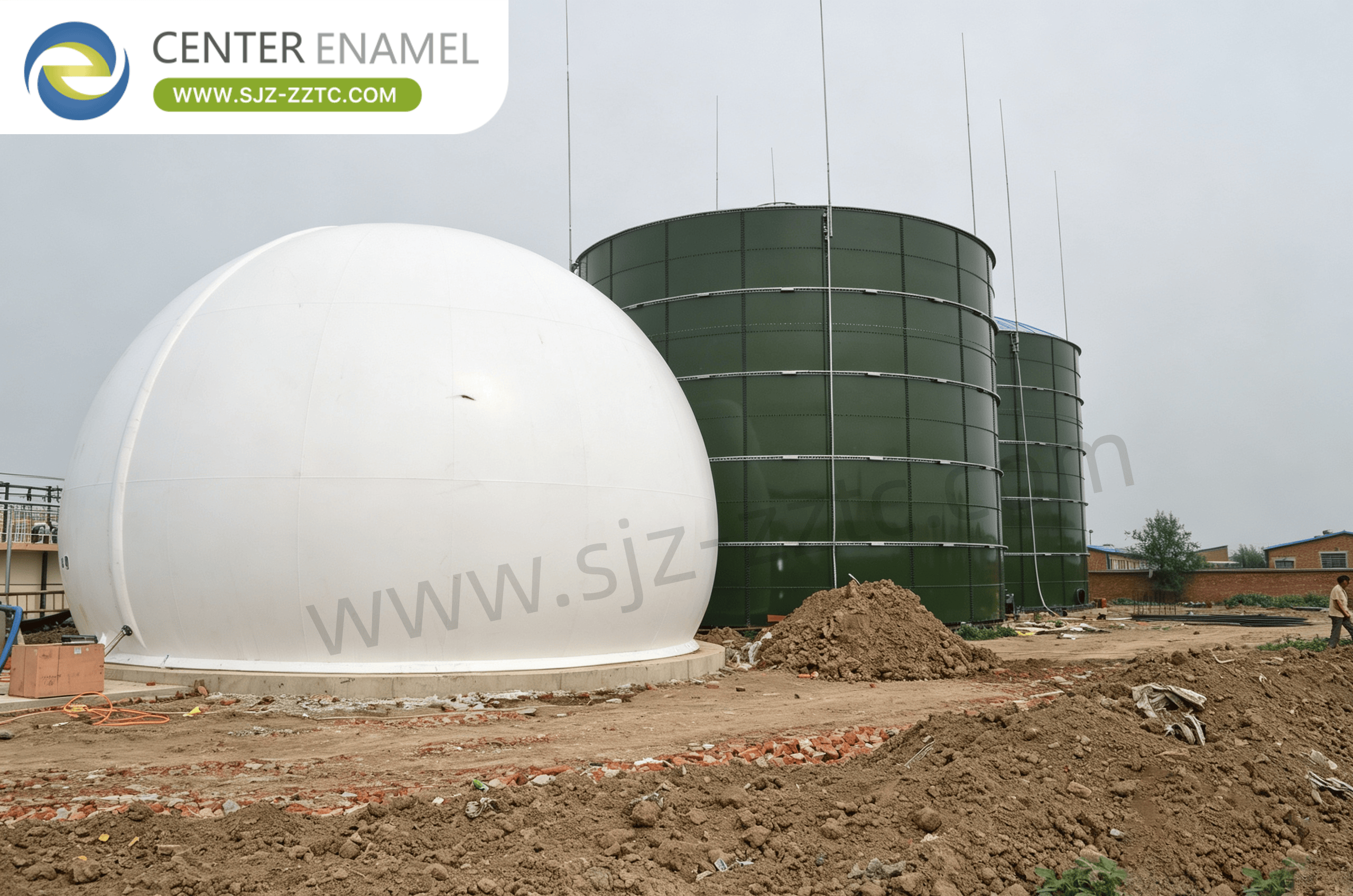

For the critical containment and gas collection functions of a biogas plant, the choice of equipment is paramount. Glass-Fused-to-Steel (GFS) Tanks are recognized as the premium bolted tank solution for anaerobic digesters. The manufacturing process involves fusing a specialized glass coating to the steel at temperatures over 800°C, creating an inert, hard, and exceptionally smooth surface that provides outstanding corrosion resistance. This is essential for protecting the tank from the acidic environment inside the digester, ensuring long-term durability and a service life exceeding 30 years.

Paired with the GFS tank is the Double Membrane Roof, which serves as an integrated gas holder. This solution offers significant advantages: it is cost-optimized and dramatically improves space efficiency by eliminating the need for a separate, ground-mounted gas holder. The outer membrane is weather-resistant, protecting against Egypt's intense sun and high temperatures, while the inner membrane maintains constant gas pressure for stable delivery to downstream equipment.

To cater to diverse project requirements, a broad portfolio of storage and cover solutions is available:

• Galvanized Steel Tanks: Featuring a tough, wear-resistant protective coating.
• Fusion Bonded Epoxy (FBE) Tanks: Developed with AkzoNobel for superior chemical resistance.
• Stainless Steel Tanks: Ideal for high-purity or aggressive environment applications.

• Aluminum Geodesic Dome Roof: Known for its corrosion resistance and clear span capability.
• Glass-Fused-to-Steel Roof: An air-tight option for pressurized structures and odor control.
• Aluminum Alloy Trough Deck Roof: An economical choice for applications not requiring full air-tightness.

A high-performance biogas plant depends on a complete suite of auxiliary equipment to ensure safe and reliable operation:

• Gas Holder: For storing the produced biogas to balance supply with fluctuating demand.
• Torch System: A safety flare that automatically and safely burns excess gas.
• Solid-liquid Separator: For dewatering the digestate into valuable organic fertilizer.
• Lifting Pump: For transferring sludge and digestate between process stages.
• Dehydration and Desulfurization Tank: For removing corrosive hydrogen sulfide (H₂S) and moisture from raw biogas to protect downstream equipment.
• Screw Sludge Dewatering Machine: For further reducing the volume of the processed biosolids.

As a premier Biogas Project Contractor, Center Enamel serves as a comprehensive EPC contractor and equipment supplier for biogas projects in Egypt. The advantages of this integrated approach include:

• Single-Point Accountability: Clients work with one contractor for the entire project scope, simplifying communication and risk management.
• Full-Spectrum Expertise: Providing process packages, equipment supply, and full EPC services to meet specific client needs.
• Tailored Solutions: Customized engineering design according to waste output, land resources, and actual energy demand.
• International Certifications: Manufacturing processes and products adhere to stringent global standards, ensuring quality and compliance.

Egypt is at the forefront of adopting sustainable waste-to-energy solutions. By converting municipal sludge to biogas through advanced Biogas Plant Design, the nation is tackling a critical environmental challenge while generating a renewable energy source. The integration of core technologies like the CSTR process with robust containment solutions such as GFS Tanks and Double Membrane Roofs provides a reliable and efficient pathway to waste management and energy independence. As a leading Biogas Project Contractor, Center Enamel is well-positioned to support Egypt's continued growth in this vital sector.
