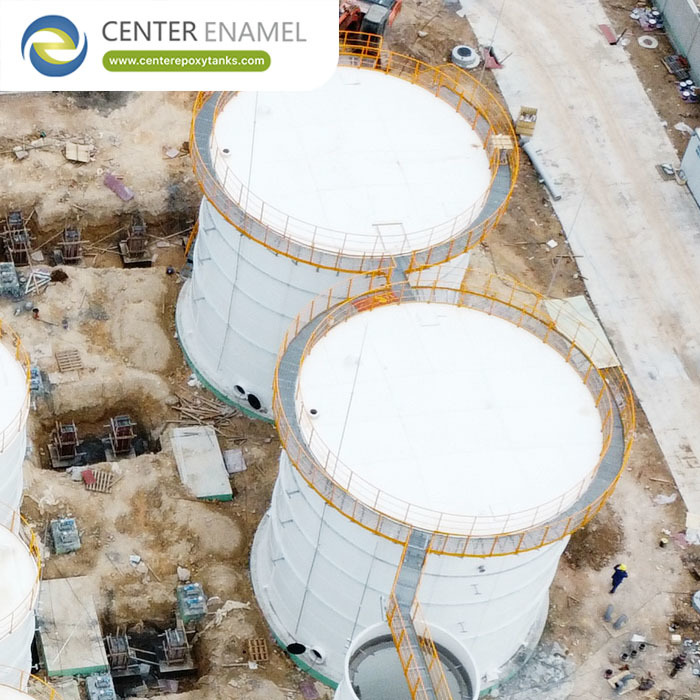

FBE Mining Silos: Engineering Structural Integrity and High-Wear Dry Bulk Containment (2026)

In the global extraction and metallurgy sectors, storing raw ores, crushed minerals, and highly dense mineral concentrates represents one of the most severe structural challenges. Materials such as copper concentrates, iron ore, bauxite, nickel laterite, gold ore tailings, and mineral sands are characterized by extreme bulk densities, high abrasive friction, and unpredictable chemical properties.

During high-velocity gravity loading and automated discharging, these heavy mining materials exert immense static and asymmetric dynamic load pressures on storage walls. Furthermore, contact with internal moisture can turn mineral dust into highly corrosive, acidic slurries, leading to rapid structural failure in traditional containment assets.

As of 2026, Fusion Bonded Epoxy (FBE) bolted steel silos—frequently engineered using high-durability Rolled, Tapered Panel (RTP) structural frameworks—have become the premier global procurement standard for mining infrastructure. By combining the exceptional tensile strength of factory-fabricated carbon steel with an advanced, molecularly cross-linked polymer barrier, FBE mining silos insulate critical assets against severe mechanical and chemical wear while significantly reducing project delivery timelines.

1. What is an FBE Mining Silo?

An FBE mining silo is a heavy-duty, modular bulk storage vessel assembled from premium carbon steel panels that are factory-coated with an advanced thermoset epoxy resin layer.

Unlike traditional field-applied liquid paints, which are highly vulnerable to scratching, coastal salt-fog, and uneven thickness when applied under unpredictable field conditions, the Fusion Bonded Epoxy process takes place inside a highly automated factory setting. The structural steel plates are grit-blasted to a near-white finish (Sa 2.5 / SSPC-SP10), pre-heated to temperatures between 180°C and 230°C, and electrostatically sprayed with dry polymer powder. The powder melts, flows, and chemically cross-links inside an automated curing oven to form an inseparable protective barrier permanently bonded to the steel substrate. This creates a high-density, glass-smooth interior lining engineered to withstand continuous friction, impact, and material weight.

2. Technical Performance: Defeating Impact, Abrasion, and Mineral Acids

Mine-site dry bulk storage requires structures capable of enduring harsh environmental elements and relentless physical wear. FBE technology handles these aggressive parameters through several critical design metrics:

Superior Abrasion Resistance and Hardness

During high-capacity conveyor charging or rapid gravity discharge, mineral particulates slide against the silo walls under immense pressure. Standard liquid epoxies or polyurethane paint systems easily score, peel, and strip off, exposing raw steel to atmospheric oxidation and accelerated structural thinning. FBE features a tough, highly scratch-resistant molecular structure designed specifically for dry bulk friction. For extremely high-wear zones, such as the lower discharge hopper or intake deflector plates, FBE works seamlessly alongside localized wear liners or sacrificial abrasion plates.

Flexibility and Impact Resilience Over Brittle Glass Linings

While vitreous glass linings (Glass-Fused-to-Steel) offer high surface hardness, they are inherently brittle. They can spall, chip, or micro-fracture when subjected to heavy mechanical impacts—such as large ore chunks striking a wall, structural vibrations from heavy-duty fluidizing bin activators, or seismic loading shifts. If glass shards flake off into a mineral stream, they can destroy downstream processing machinery and crushers. FBE is a flexible thermoset polymer that flexes dynamically alongside the steel panel, providing superior chip, shatter, and impact resistance under intense physical shock.

Resistance to Biogenic and Mineral Acid Corrosion

Many raw ores contain high levels of sulfur. When exposed to rain or ambient humidity, these compounds react to form a highly corrosive runoff containing weak sulfuric acid ($text{H}_2text{SO}_4$). This acidic wash induces rapid carbonation and spalling in reinforced concrete silos and causes rapid pitting in unlined steel. The cross-linked polymer matrix of an FBE lining is completely inert, providing reliable protection across a wide chemical spectrum (typically pH 3.0 to 11.0).

Advanced Edge Wrap and Joint Protection

Because bolted mining silos undergo continuous dynamic expansion and contraction cycles during filling and drawing, structural joint integrity is paramount. FBE utilizes an electrostatic "powder-on-powder" application method that wraps completely around sharp panel edges and inside bolt holes. This eliminates the primary sites where crevice corrosion or structural rust typically initiates under packed material weight.

Mass Flow Promotion to Prevent Bridging and Dead Zones

Fine mineral powders and moist concentrates are highly prone to cohesive "bridging" or "rat-holing" within a hopper cone, disrupting the automated discharge stream and creating dangerous asymmetric loading forces on the structure. The glossy, ultra-smooth interior surface of an FBE tank reduces the wall friction coefficient. This smooth finish acts as a natural flow-promoter, discouraging aggregate hang-ups along the silo walls and ensuring a predictable, continuous, first-in, first-out (FIFO) mass-flow discharge pattern.

3. Comparison Matrix: FBE vs. Reinforced Concrete vs. Glass-Fused-to-Steel (GFS) in Mining

4. Engineering Design Standards and Global Mining Compliance

To satisfy strict civil engineering criteria, mine safety regulations, and pass rigorous international infrastructure bidding screens (such as those managed by tier-one mining houses and major EPC contractors), premium FBE mining silos—such as those manufactured by global leaders like Center Enamel (Shijiazhuang Zhengzhong Technology)—comply with the following international codes:

1. AWWA D103-19 (Section 12.6): The global benchmark standard for factory-coated bolted carbon steel storage structures, verifying structural calculations against hoop stress, compression, and dynamic dry bulk pressure profiles.

2. ISO 28765:2016: Governing the high-performance coating thickness, quality testing, and zero-discontinuity parameters for industrial bolted containment.

3. ASCE 7-22 / Eurocode 3 (Part 4-1): Specific structural design criteria for silos, ensuring the modular panels calculate accurately for high-density asymmetric loads, internal vacuum pressures during rapid discharge, and external wind loads up to 250 km/h—a critical requirement for wind-exposed, high-altitude mine sites.

4. ISO 9001 Factory Quality Control: Ensuring every panel undergoes a high-voltage electronic Holiday Test (typically $geq 1100text{V}$) to verify a 100% pinhole-free barrier before flat-packing and containerized global shipping.

5. Strategic Applications Across Mine-Site Processing Loops

FBE dry bulk structures serve as critical process nodes across multiple phases of mineral extraction and handling:

• Run-of-Mine (ROM) Ore Bunkers: Serving as surge and balancing silos immediately following primary crushing loops, managing raw aggregate flows before further grinding.

• Mineral Concentrate Buffering: Storing high-value, processed metal concentrates (e.g., copper, zinc, lead, iron) upstream of filtration, bulk packing, or railcar loading terminals.

• Flue Gas Desulfurization (FGD) Loops: Holding bulk limestone or powdered limestone stocks utilized in environmental scrubbers within coal-fired power utilities or smelter captive power plants.

• Mine Backfill Operations: Storing dry sand, cement, or crushed tailings utilized in automated paste backfill plants to support underground structural stabilization.

Optimizing Mining Infrastructure ROI

For mining engineers, operations directors, and heavy industrial EPC contractors looking to optimize Return on Investment (ROI), the FBE bolted steel mining silo is the definitive asset choice for 2026. By utilizing a modular, top-down assembly method with synchronized hydraulic jacking systems, these silos are erected entirely from ground level. This eliminates the need for high-altitude scaffolding, crane rentals, or certified field welders, reducing installation timelines by up to 60%. By eliminating the heavy foundation and long curing liabilities of concrete, and providing a flexible, fracture-resistant alternative to brittle glass linings, FBE technology ensures safe, continuous, and low-maintenance dry bulk mineral management for an operational lifespan exceeding 30 years.

Are you currently designing a mine-site processing plant, planning a concentrate transload terminal, or upgrading a paste backfill system, and would you like a detailed technical proposal including structural payload calculations, sizing configurations, and engineering drawings for your mineral volume?
