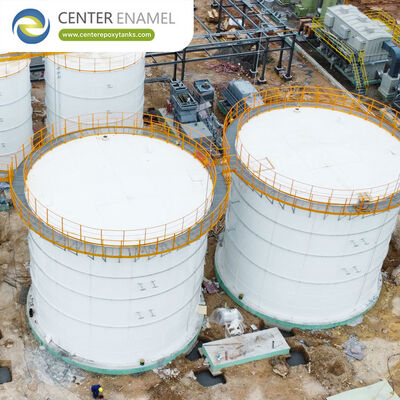

FBE Digesters: Advanced Engineering for Anaerobic Digestion and Waste-to-Energy Infrastructure (2026)

In the global transition toward industrial decarbonization, corporate carbon neutrality, and circular economy infrastructure, processing organic waste loops has become a critical operational standard. Industrial, municipal, and agricultural waste streams contain high-chemical-oxygen-demand (COD) organic matter that can be transformed into green energy. However, managing this biochemical process presents severe material containment challenges.

The aggressive biochemical reactions inside an anaerobic reactor generate volatile organic acids and highly corrosive gases that can quickly compromise traditional infrastructure assets. As of 2026, Fusion Bonded Epoxy (FBE) bolted steel tanks have established themselves as a global engineering standard for anaerobic digestion, heavily utilized in specialized reactor designs such as Continuous Stirred-Tank Reactors (CSTR), Upflow Anaerobic Sludge Blanket (UASB) systems, Upflow Solids Reactors (USR), Internal Circulation (IC), and Anaerobic Anoxic Oxic (A2O) loops.

1. What is an FBE Digester?

An FBE digester is a modular, bolted containment reactor designed to sustain airtight, climate-controlled microbial ecosystems for high-yield anaerobic digestion. The structural shell consists of high-tensile carbon steel panels factory-coated with an advanced, molecularly cross-linked thermoset polymer barrier.

Unlike traditional field-applied liquid liners or paints—which are highly vulnerable to ambient humidity, coastal salt-fog, and uneven thickness during field construction—the Fusion Bonded Epoxy process is executed entirely under automated factory quality controls. Carbon steel plates are grit-blasted to a near-white finish (Sa 2.5 / SSPC-SP10), pre-heated to temperatures between 180°C and 230°C, and electrostatically sprayed with dry polymer powder. The powder melts, flows, and chemically cross-links inside an automated curing oven to form an inseparable protective barrier permanently bonded to the steel substrate. This creates a dense, glass-smooth internal lining that completely isolates the structural steel shell from the aggressive chemical processes occurring within the digesting biomass.

2. Technical Performance: Navigating the Biochemistry of Digestion

Anaerobic digestion loops subject containment vessels to complex chemical, thermal, and physical loads. FBE technology is engineered to stabilize and protect these reactors across several key operational parameters:

Immunity to Hydrogen Sulfide (H2S) and Volatile Fatty Acids (VFAs)

During the initial acidogenesis and acetogenesis phases of organic breakdown, localized pH levels inside the slurry drop significantly, exposing the lower tank walls to volatile fatty acids. Furthermore, biogas production releases high concentrations of hydrogen sulfide (H2S) gas. In the tank’s enclosed headspace, this gas condenses on damp surfaces to form highly corrosive sulfuric acid (H2SO4). While these biogenic acids induce rapid carbonation, calcium leaching, and spalling in reinforced concrete, the cross-linked polymer matrix of FBE remains completely inert across a wide chemical spectrum (pH 3.0 to 11.0).

Complete Hermetic Sealing for Methanogenesis

Methanogenic archaea are strict anaerobes; even minor oxygen leaks into the digestion zone can disrupt microbial activity, lower biogas yields, and stall the reactor. Additionally, escaping methane (CH4) poses a severe environmental hazard and reduces energy recovery rates. FBE bolted digesters utilize engineered, high-performance EPDM or silicone gaskets paired with continuous liquid joint sealants at every panel intersection to ensure a completely airtight, pressure-stable containment loop.

Flexibility and Impact Resilience Over Brittle Glass Linings

While vitreous glass linings (Glass-Fused-to-Steel) offer exceptional surface hardness, they are inherently brittle. Digesters frequently utilize powerful high-torque internal mixing paddles, robust feed augers, and fluidizing bin activators that transmit severe structural vibrations and dynamic load shifts throughout the steel shell. If large, uncomposted debris or stone contaminants within the organic stream strike a brittle glass wall under heavy paddle pressure, the glass layer can spall, chip, or micro-fracture. FBE is a flexible thermoset polymer that flexes dynamically alongside the steel panel, providing superior chip, shatter, and impact resistance under intense physical shock.

100% Factory Holiday Quality Assurance

Because organic digestate acts as a highly conductive electrolyte, microscopic coating flaws can lead to rapid localized galvanic pitting. To guarantee zero-defect field installation, every individual FBE panel undergoes a strict high-voltage electronic Holiday Test (1100V) at the factory to eliminate microscopic pinholes and guarantee a 100% defect-free barrier before flat-packing.

3. Comparison Matrix: FBE vs. Concrete vs. Glass-Fused-to-Steel (GFS) in AD

4. Strategic Feedstock Applications in Waste-to-Energy Loops

FBE anaerobic digesters are highly versatile reactors designed to process diverse agricultural, municipal, and industrial waste streams:

● Agricultural Residues & Energy Crops: Processing high-solid organic feedstocks, including Pennisetum Purpureum (napier/elephant grass) and silage pre-treatments. For instance, in setups utilizing combinations of canteen food waste and manure slurries, these reactors achieve stable biogas outputs through optimized mixing loops.

● Palm Oil Mill Effluent (POME): Serving as primary UASB or CSTR reactors in palm oil processing infrastructure, treating high-temperature, high-organic-load wastewater while capturing green methane.

● Industrial Food & Beverage Wastewater: Treating high-strength process streams from breweries, starch factories, and dairies using high-rate anaerobic separation methods to reduce incoming COD by up to 90%.

5. Engineering Design Standards and Global Compliance

To satisfy strict environmental infrastructure criteria, pass rigorous civil engineering checks, and clear international bidding screens, premium FBE anaerobic digesters—such as those engineered by global manufacturers like Center Enamel (Shijiazhuang Zhengzhong Technology)—comply with the following international codes:

1. AWWA D103-19: The global premier standard for factory-coated bolted carbon steel liquid storage systems, validating structural calculations for hydrostatic pressure, snow loads, and seismic forces.

2. ISO 28765:2016: The specific international standard governing high-performance coating quality, thickness tolerances, and holiday testing profiles for water, wastewater, and bio-energy containment.

3. ASCE 7-22 / Eurocode 3 (Part 4-1): Structural design engineering parameters ensuring that the modular biodigester calculates accurately for high seismic resilience and extreme wind loads up to 250 km/h—critical for exposed industrial layouts.

4. Effluent Discharge and Safety Codes: Integrating critical process-control hardware, including dual-membrane gas holders, pressure-vacuum relief valves (PVRV), internal heating loops, and automated sludge discharge sumps.

Optimizing Renewable Bio-Energy ROI

For environmental engineers, wastewater utility managers, and clean-tech EPC contractors focused on maximizing Return on Investment (ROI), the FBE bolted steel biodigester represents a highly secure, scalable, and economical infrastructure asset for 2026. By utilizing a modular, top-down assembly method with synchronized hydraulic jacking systems, these reactors are erected entirely from ground level. This eliminates the need for high-altitude scaffolding or intensive field welding, reducing construction timelines by up to 50%. By eliminating the cracking, gas-loss, and acid-corrosion risks of concrete, FBE technology ensures safe, continuous, and zero-maintenance anaerobic digestion for an operational lifespan exceeding 30 years.

Are you currently designing an industrial waste-to-energy plant, upgrading a municipal anaerobic digestion loop, or developing a project around organic waste slurries, and would you like a detailed technical proposal including reactor sizing, hydraulic retention time (HRT) parameters, and structural engineering drawings for your specific waste volume?
