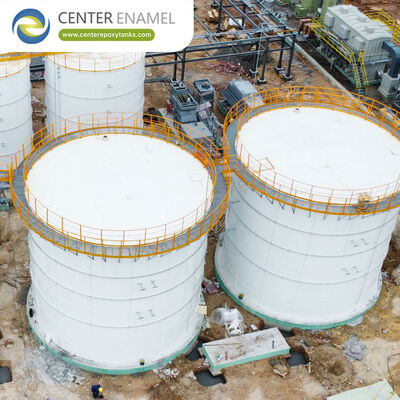

FBE Mineral Silos: Advanced Modular Engineering for High-Wear Dry Bulk and Aggregate Storage

In global mining, metallurgy, and heavy industrial processing sectors, storing bulk mineral concentrates, raw ores, and crushed stones presents aggressive physical and mechanical challenges. Materials such as bauxite, copper concentrates, iron ore dust, gypsum, and calcium carbonate are exceptionally dense and highly abrasive.

During high-velocity gravity loading and pneumatic filling cycles, these heavy mineral particulates act as constant micro-cutters against the containment vessel's walls. Furthermore, many minerals are highly hygroscopic (moisture-sensitive); any exposure to ambient humidity or atmospheric condensation causes rapid product caking, "bridging," and severe structural discharge blockages.

As of 2026, Fusion Bonded Epoxy (FBE) bolted steel silos—frequently engineered using Rolled, Tapered Panel (RTP) structural frameworks—have established themselves as the global procurement standard for bulk mineral storage. By combining the high tensile strength of carbon steel with an advanced, molecularly cross-linked polymer shell, FBE silos offer unmatched abrasion resistance, moisture isolation, and life-safety reliability.

1. What is an FBE Mineral Silo?

An FBE mineral silo is a modular, high-capacity dry bulk containment structure assembled from premium carbon steel panels that are factory-coated with a high-performance thermoset epoxy resin.

Unlike traditional field-applied liquid paints, which are highly vulnerable to scratching, micro-pinholes, and uneven application during field construction, the Fusion Bonded Epoxy process is executed under strict factory quality controls. Carbon steel plates are grit-blasted to a near-white finish (Sa 2.5 / SSPC-SP10), pre-heated to temperatures between 180°C and 230°C, and electrostatically sprayed with dry polymer powder. The powder melts, flows, and chemically cross-links inside an automated curing oven to form an inseparable protective barrier permanently bonded to the steel substrate. This creates a high-density, glass-smooth interior lining engineered to withstand continuous friction, impact, and heavy material weight.

2. Technical Performance: Defeating Impact and Abrasive Wear

Mineral silos encounter harsh mechanical parameters that differ drastically from liquid water storage. FBE technology handles these aggressive dry bulk forces through several critical design metrics:

Superior Abrasion Resistance and Hardness

During high-pressure pneumatic filling or belt-conveyor discharge cycles, heavy mineral particulates slide against the silo walls under immense pressure. Standard liquid epoxies or polyurethane paint systems easily score, peel, and strip off, exposing raw steel to atmospheric oxidation and accelerated structural wear. FBE features a tough, highly scratch-resistant molecular structure designed specifically for dry bulk friction. For extremely high-wear zones, such as the lower hopper or intake deflector plates, FBE works seamlessly alongside localized wear liners or sacrificial abrasion plates.

Flexibility and Impact Resilience Over Brittle Glass Linings

While vitreous glass linings (Glass-Fused-to-Steel) offer exceptional surface hardness, they are inherently brittle. They can spall, chip, or micro-fracture when subjected to heavy mechanical impacts—such as large ore chunks striking a wall, structural vibrations from heavy-duty bin vibrators, or seismic loading shifts. FBE is a flexible thermoset polymer that flexes dynamically alongside the steel panel, providing superior chip and shatter resistance under intense physical shock.

Advanced Edge Wrap and Joint Protection

Because bolted mineral silos undergo continuous dynamic expansion and contraction cycles during filling and drawing, structural joint integrity is paramount. FBE utilizes an electrostatic "powder-on-powder" application method that wraps completely around sharp panel edges and inside bolt holes. This eliminates the primary sites where crevice corrosion or structural rust typically initiates under packed material weight.

Mass Flow Promotion and Anti-Adhesion

Fine mineral powders are highly prone to cohesive "bridging" or "rat-holing" within a hopper cone, disrupting the automated discharge stream and creating dangerous asymmetric loading forces on the structure. The glossy, ultra-smooth interior surface of an FBE tank reduces the wall friction coefficient. This smooth finish acts as a natural flow-promoter, discouraging powder accumulation along the silo walls and ensuring a predictable, continuous, first-in, first-out (FIFO) mass-flow discharge pattern.

3. Comparison Matrix: FBE vs. Reinforced Concrete vs. Glass-Fused-to-Steel (GFS)

4. Engineering Design Standards and Dry Bulk Compliance

To satisfy strict civil engineering criteria, mining regulations, and pass rigorous international infrastructure bidding screens, premium FBE mineral silos—such as those manufactured by global leaders like Center Enamel (Shijiazhuang Zhengzhong Technology)—comply with the following international codes:

1. AWWA D103-19 (Section 12.6): The global benchmark standard for factory-coated bolted carbon steel storage structures, verifying structural calculations against hoop stress, compression, and dynamic dry bulk pressure profiles.

2. ISO 28765:2016: Governing the high-performance coating thickness, quality testing, and zero-discontinuity parameters for industrial bolted containment.

3. ASCE 7-22 / Eurocode 3 (Part 4-1): Specific structural design criteria for silos, ensuring the modular panels calculate accurately for high-density asymmetric loads, internal vacuum pressures during rapid discharge, and external wind loads up to 250 km/h—critical for exposed coastal layouts.

4. ISO 9001 Factory Quality Control: Ensuring every panel undergoes a high-voltage electronic Holiday Test (typically $geq 1100text{V}$) to verify a 100% pinhole-free barrier before flat-packing and shipping.

5. Strategic Applications Across the Mineral Supply Chain

FBE dry bulk structures serve as critical storage nodes across multiple industrial sectors:

• Mining and Ore Dressing: Storing processed mineral concentrates, crushed ore tailing reserves, barite, bentonite, and kaolin clay prior to transport or refining.

• Cement Terminals & Ready-Mix Plants: Serving as high-capacity bulk cement, slag, and fly ash storage silos. The modular bolted panels allow these silos to be easily containerized, shipped worldwide, and built rapidly in remote development areas.

• Flue Gas Desulfurization (FGD) Loops: Holding bulk limestone or powdered limestone stocks utilized in environmental scrubbers within coal-fired power utilities.

• Glass and Ceramics Manufacturing: Managing the raw material containment of high-purity silica sand, feldspar, and talc, where absolute moisture protection is mandatory.

Maximizing Dry Bulk Infrastructure ROI

For mining engineers, plant operators, and industrial infrastructure EPC contractors looking to optimize Return on Investment (ROI), the FBE bolted steel mineral silo is the definitive asset choice for 2026. By utilizing a modular, top-down assembly method with synchronized hydraulic jacking systems, these silos are erected entirely from ground level. This eliminates the need for high-altitude scaffolding, crane rentals, or certified field welders, reducing installation timelines by up to 60%. By eliminating the heavy foundation and long curing liabilities of concrete, and providing a flexible, fracture-resistant alternative to glass linings, FBE technology ensures safe, continuous, and low-maintenance dry bulk mineral management for an operational lifespan exceeding 30 years.

Are you currently designing a mining storage facility, planning a cement terminal expansion, or upgrading a mineral processing plant, and would you like a detailed technical proposal including structural payload calculations, shear testing data, and engineering drawings for your mineral volume?
