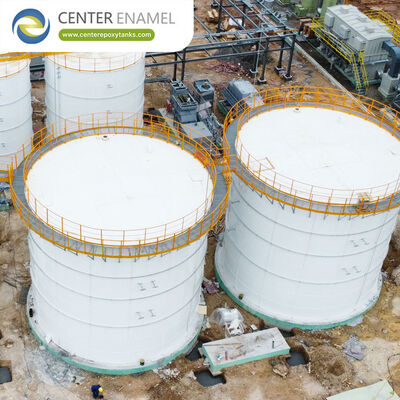

FBE Food Production Silos: Engineering Pure, Contamination-Free Storage for Bulk Ingredients and Powders

In the global food processing, industrial baking, milling, and beverage compounding sectors, maintaining raw material purity is the foundation of consumer safety and brand integrity. Storing bulk food-grade ingredients—such as wheat flour, sugar, starch, powdered milk, cocoa, and salt—presents stringent regulatory and material-handling challenges.

Food ingredients are highly sensitive to ambient moisture and microbial cross-contamination. Furthermore, pneumatic conveying of fine organic powders at high velocities generates intense friction, static electricity, and a constant hazard of combustible dust explosions.

As of 2026, Fusion Bonded Epoxy (FBE) bolted steel silos—engineered using precise Rolled, Tapered Panel (RTP) structural designs—have established themselves as the global standard for high-tier sanitary food storage. By combining the high tensile strength of factory-fabricated carbon steel with an advanced, molecularly cross-linked polymer lining, FBE silos provide a smooth, toxicological-free, and gas-tight environment that protects ingredient properties while satisfying rigorous international food-safety mandates.

1. What is an FBE Food Production Silo?

An FBE food production silo is a modular, dry bulk containment vessel constructed from premium carbon steel panels that are factory-coated with a high-performance, food-grade thermoset epoxy resin.

Unlike traditional field-applied liquid paints, which are highly vulnerable to humidity and micro-pinholes during plant construction, the Fusion Bonded Epoxy process is executed under strict factory quality controls. Carbon steel plates are grit-blasted to a near-white finish (Sa 2.5 / SSPC-SP10), pre-heated to temperatures between 180°C and 230°C, and electrostatically sprayed with dry polymer powder (such as premium Resicoat® or LIQ Fusion™ formulations). The powder melts, flows, and chemically cross-links inside an automated curing oven to form an inseparable protective barrier permanently bonded to the steel substrate. This produces a high-density, glass-smooth interior lining that completely isolates raw steel from food contact.

2. Technical Performance: Protecting Product Quality and Process Safety

Silos storing food ingredients encounter distinct physical and environmental stressors that can degrade raw materials if the containment system is flawed. FBE technology handles these aggressive dry bulk forces through several critical design metrics:

Absolute Compliance and Zero Chemical Leaching

For food-grade applications, the containment surface must be chemically inert. The cross-linked polymer matrix of FBE prevents any metallic ions, volatile organic compounds (VOCs), or chemical additives from migrating into the ingredient stream. Furthermore, modern premium FBE formulations are engineered to be entirely PFAS-free and BPA-free, perfectly aligning with the strict EU Packaging and Packaging Waste Regulation (PPWR) mandates and FDA safety frameworks enforced as of 2026.

Inhibition of Microbial Biofilms and Mold Growth

Hygroscopic food powders (like powdered sugar or milk) readily absorb moisture if a silo sweats due to external temperature swings, leading to material caking and "crusting" along the walls. This trapped organic matter becomes a breeding ground for bacteria, mold spores, and weevil infestations. The glossy, ultra-smooth interior surface of an FBE silo yields a low wall friction coefficient. This non-porous surface finish reduces micro-roughness, preventing powder accumulation, facilitating easy clean-in-place (CIP) sanitation protocols, and supporting a predictable first-in, first-out (FIFO) mass-flow discharge pattern.

Anti-Static Surface Safety and Combustible Dust Defense

Fine organic agricultural materials (such as flour, starch, and sugar) are highly classified combustible industrial dusts. The continuous friction of moving particulates during pneumatic loading creates high static electricity fields. FBE coatings can be formulated with specialized anti-static or dissipative agents that integrate seamlessly into the facility's grounding array. This prevents localized static discharge arcs, actively supporting combustible dust protection.

Flexibility and Impact Resilience Over Brittle Glass Linings

While vitreous glass linings (Glass-Fused-to-Steel) offer high surface hardness, they are inherently brittle. They can spall, chip, or micro-fracture when subjected to heavy mechanical impacts—such as structural vibrations from heavy-duty bin activators, dynamic load shifts, or seismic loading shocks. If microscopic glass shards chip off into a food stream, it triggers catastrophic product recalls and safety failures. FBE is a flexible thermoset polymer that flexes dynamically alongside the steel panel, providing superior chip, shatter, and impact resistance.

3. Comparison Matrix: FBE vs. Concrete Silos vs. Stainless Steel (304/316)

4. Engineering Design Standards and Food-Grade Compliance

To satisfy strict sanitary engineering criteria, public health regulations, and pass international bidding screens (such as those managed by international food brands and FMCG producers), premium FBE food silos—such as those manufactured by global leaders like Center Enamel (Shijiazhuang Zhengzhong Technology)—comply with the following international codes:

1. FDA 21 CFR 175.300 & NSF/ANSI 61: Verifying that the internal coating chemistry consists entirely of approved food-contact substances that are safe for public consumption and non-leaching.

2. AWWA D103-19 (Section 12.6): The global benchmark standard for factory-coated bolted carbon steel storage structures, verifying structural calculations against hoop stress, compression, and dynamic dry bulk pressure profiles.

3. NFPA 61 / NFPA 652: Standards for the prevention of fires and dust explosions in agricultural and food processing facilities, ensuring the integration of explosion relief vents and nitrogen (N2) purging systems.

4. ISO 9001 Factory Quality Control: Ensuring every single panel undergoes a strict high-voltage electronic Holiday Test ($geq 1100text{V}$) at the factory to guarantee a 100% pinhole-free barrier before flat-packing and shipping.

5. Strategic Applications Across Food Processing Chains

FBE dry bulk structures serve as critical storage nodes across multiple commercial food production layouts:

• Industrial Flour Mills & Bakeries: Storing massive volumes of incoming wheat, processed flour, and bran upstream of automated mixing and dough production lines.

• Sugar Refineries & Confectionery Plants: Managing high-purity crystalline sugar or powdered sugar stocks, where total moisture exclusion is mandatory to prevent hardening.

• Dairies & Beverage Compounding Facilities: Functioning as primary storage bins holding powdered milk, whey protein concentrates, cocoa powders, or maltodextrins.

• Starch & Grain Processing Refineries: Storing raw cornstarch, potato starch, or modified food starches prior to bulk packaging or chemical integration loops.

Optimizing Food Infrastructure ROI

For food plant engineers, corporate operations directors, and sanitary facility EPC contractors looking to optimize Return on Investment (ROI), the FBE bolted steel food silo is the definitive asset choice for 2026. By utilizing a modular, top-down assembly method with synchronized hydraulic jacking systems, these silos are erected entirely from ground level. This eliminates the need for high-altitude scaffolding, crane rentals, or certified field welders, reducing installation timelines by up to 60%. By eliminating the extreme material costs of stainless steel, avoiding the moisture-retaining and cracking risks of concrete, and providing a flexible, fracture-resistant alternative to brittle glass linings, FBE technology ensures safe, continuous, and low-maintenance ingredient management for an operational lifespan exceeding 30 years.

Are you currently designing an industrial bakery facility, planning a dairy powder plant expansion, or upgrading an ingredient batching system, and would you like a detailed technical proposal including structural payload calculations, sizing configurations, and engineering drawings for your food-grade volume?
