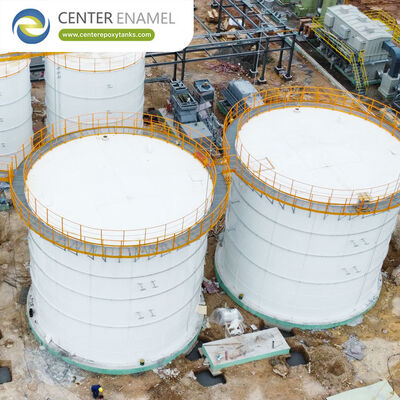

The Engineering Guide to FBE Coal Storage Tanks: Precision, Safety, and Performance (2026)

In the 2026 industrial landscape, the storage of bulk coal—whether for thermal power generation, metallurgy, or chemical processing—requires infrastructure that can withstand extreme mechanical wear and environmental stress. Fusion Bonded Epoxy (FBE) coal storage tanks have emerged as the premier choice for dry bulk containment, offering a balance of abrasion resistance, rapid modular installation, and cost-efficiency.

1. What is an FBE Coal Storage Tank?

An FBE coal storage tank is a modular, bolted steel silo engineered for the storage of granular or powdered coal. The interior and exterior surfaces of the steel plates are factory-coated with a high-performance, thermoset polymer powder.

Unlike traditional field-painted silos, the Fusion Bonded Epoxy process involves electrostatically applying dry epoxy powder to pre-heated steel plates at temperatures typically between 180°C and 230°C. This creates a molecularly cross-linked barrier that is permanently bonded to the steel substrate, resulting in a finish that is significantly harder and more durable than liquid-applied coatings.

2. Technical Performance: Why FBE for Coal?

Coal storage presents unique engineering challenges, including high abrasion from material flow, moisture-induced corrosion, and dust explosion risks. FBE technology addresses these through several key technical parameters:

Superior Abrasion and Impact Resistance

Coal is highly abrasive. FBE coatings are specifically formulated to handle dry bulk "scrape and flow." High-performance FBE systems (such as those used by industry leaders like Center Enamel) often pass rigorous abrasion tests (e.g., 200 l/mil), ensuring the coating remains intact despite the constant movement of heavy, abrasive coal particles.

Zero-Discontinuity Corrosion Protection

Every FBE panel undergoes a high-voltage Holiday Test (typically ≥1100V) at the factory. This electronic scan detects microscopic "pinholes" that would be invisible to the human eye, ensuring a 100% airtight and watertight barrier. This is critical for preventing the oxidation of coal and protecting the structural steel from acidic runoff.

Modular Installation and Safety

Bolted FBE silos utilize a top-down assembly method using synchronized hydraulic jacking. This allows the tank to be built within 2 meters of the ground, significantly reducing the risks associated with high-altitude welding and on-site painting.

3. Comparison: FBE vs. Concrete vs. Welded Steel

4. Safety Engineering: Explosion and Dust Management

Coal dust is highly combustible. Modern FBE silos are designed with integrated safety systems to mitigate the risk of deflagration:

• Explosion Venting: Precision-engineered relief panels on the silo roof that serve as the weak point during a pressure spike.
• CO Monitoring and Inerting: Continuous monitoring of Carbon Monoxide levels; if detected, inert gas (like Nitrogen) is injected to prevent spontaneous combustion.
• Flow Promotion: The smooth, low-friction surface of FBE coatings prevents "arching" or "bridging" of coal, ensuring consistent flow and reducing the accumulation of old, volatile coal dust.
•

5. Global Engineering Standards and Compliance

To ensure the highest levels of structural integrity, FBE coal storage tanks from reputable manufacturers (such as Shijiazhuang Zhengzhong Technology) adhere to the following:

• AWWA D103-19: The global standard for factory-coated bolted carbon steel tanks.
• ISO 28765:2016: Specifically governing high-performance coatings for industrial storage.
• ASCE 7-22: Structural design requirements for seismic resilience and wind loads up to 250 km/h.
• NFPA 68/69: Standards for explosion protection and venting in dust-producing environments.
•

The Strategic Asset for 2026

For the mining, power, and industrial sectors, the FBE coal storage tank represents the most durable and scalable infrastructure choice. By combining the structural reliability of bolted steel with the mechanical immunity of fusion-bonded epoxy, these silos deliver a future-proof solution that simplifies the complex logistics of coal handling while ensuring maximum operational safety.
