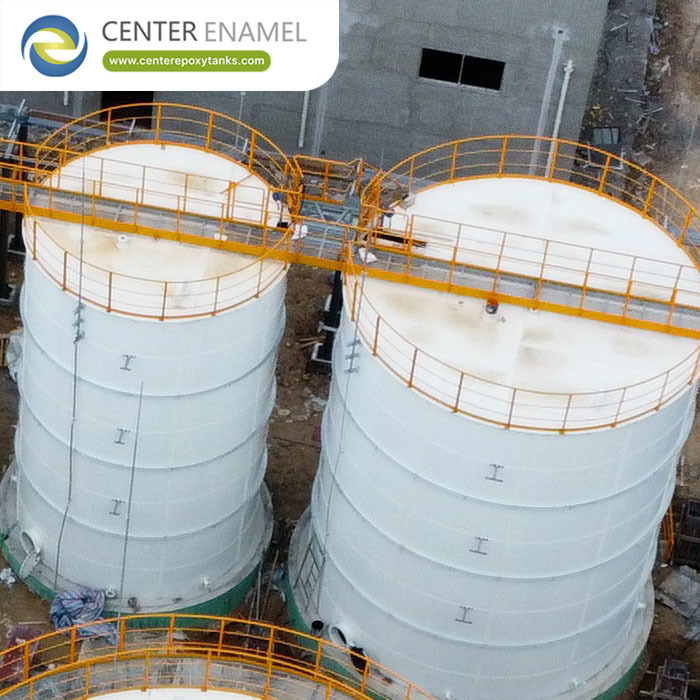

FBE Fixed Roof Tank: The Engineering Standard for Secure Liquid Containment

In the 2026 industrial landscape, the fixed roof tank remains the workhorse for storing non-volatile or low-volatility liquids, chemicals, and water resources. When integrated with Fusion Bonded Epoxy (FBE) technology, these tanks transition from simple vessels to high-performance assets capable of resisting extreme corrosion and maintaining product purity.

Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), a global leader in bolted tank engineering, provides the FBE Fixed Roof Tank as a modular, cost-effective, and durable alternative to traditional welded steel or concrete structures.

1. Technical Excellence: The FBE Barrier Science

Fusion Bonded Epoxy (FBE) is a thermoset polymer that is electrostatically applied and thermally cured at 180°C to 250°C. This process creates a monolithic, high-density chemical bond to the steel substrate. For fixed roof applications, this coating ensures that both the shell and the roof structure are protected from internal corrosive vapors and external atmospheric elements.

2. Strategic Advantages: Why FBE Fixed Roof Bolted Steel?

Modern procurement for industrial infrastructure favors Modular Assembly to reduce lifecycle costs and environmental risks.

• Vapor & Corrosion Control: In a fixed roof configuration, the space between the liquid and the roof (the ullage) often collects corrosive vapors. Unlike field-painted tanks, Center Enamel’s FBE panels are factory-coated on both sides and all edges, providing 360-degree protection against internal vapor-phase corrosion.
• Rapid Deployment: Modular panels and roof trusses are prefabricated and assembled using high-grade bolts. A typical fixed roof tank can be completed in weeks, whereas a welded tank requires months of on-site welding and climate-sensitive coating.
• Product Purity: The smooth, non-porous FBE surface prevents the buildup of sediment and microbial growth. This is critical for potable water, food-grade oils, and specialty chemicals.
• Weather & UV Resistance: When paired with a Super Durable Polyester (SDP) exterior topcoat, our fixed roof tanks offer excellent UV resistance and protection against salt-spray corrosion in coastal environments.

3. Key Applications for Fixed Roof Designs

The FBE Fixed Roof Tank is engineered for versatility across several critical sectors:

• Potable Water Reservoirs: Certified to NSF/ANSI 61 for municipal drinking water storage.
• Fire Water Storage: Compliant with NFPA 22 standards for industrial and commercial fire protection.
• Wastewater & Sludge: Ideal for buffer tanks and sludge storage where vapor containment is required for odor control.
• Low-Volatility Hydrocarbons: Suitable for diesel, heavy oils, and biofuels where vapor pressure is minimal.

4. Engineering Standards & Compliance Matrix

For project bankability and insurance compliance, Center Enamel tanks are designed to the most rigorous international codes:

• AWWA D103-19: The global standard for factory-coated bolted steel water storage tanks.
• API 650 (Modified): Adherence to structural calculations for large-scale liquid containment.
• NFPA 22: Standards for water tanks in private fire protection systems.
• ASCE 7-22: Structural engineering for high wind (up to 250 km/h) and seismic load resilience.

5. Frequently Asked Questions (FAQ)

Q: What is the maximum size for an FBE fixed roof tank?

A: Thanks to our modular design, we can engineer fixed roof tanks with capacities exceeding 10,000 m³, customized to site-specific requirements.

Q: Can these tanks be insulated?

A: Yes. Center Enamel fixed roof tanks support the integration of insulation jacketing and heating coils, essential for maintaining liquid viscosity in extreme cold climates.

Q: How do you handle sealing between the roof and the shell?

A: We use specialized, high-elasticity sealants specifically tested for chemical and UV resistance, ensuring a secure, weather-tight seal that prevents vapor leakage and external contamination.
