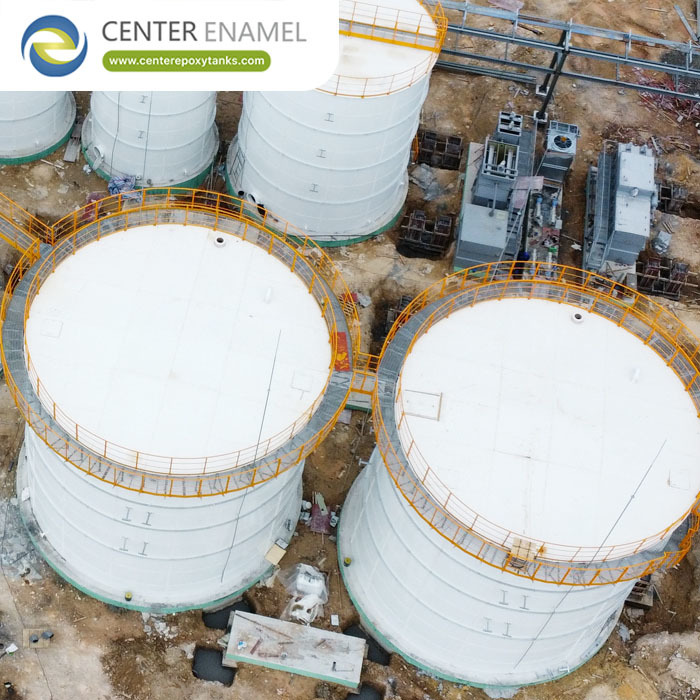

FBE Raw Water Tank: The Engineering Standard for Pre-Treatment Storage

In the cycle of municipal and industrial water management, the raw water tank serves as the critical buffer between source extraction and the treatment plant. Because raw water—sourced from rivers, lakes, or wells—contains varying levels of sediment, minerals, and organic matter, the storage vessel must be resilient against microbial-induced corrosion and abrasive particles.

Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), the premier China Epoxy Coated Tank manufacturer, offers the Fusion Bonded Epoxy (FBE) Bolted Steel Tank as the definitive solution for reliable raw water containment.

1. Technical Excellence: The FBE Barrier Science

Fusion Bonded Epoxy is a high-performance thermoset polymer. Unlike traditional liquid-applied paints, FBE is electrostatically applied as a dry powder and thermally cured at 180°C to 250°C. This thermal fusion creates a monolithic, high-density chemical bond to the steel substrate.

Core Performance Matrix

2. Why FBE Bolted Steel Over Traditional Concrete?

Modern procurement for raw water infrastructure favors Modular Assembly due to significant reductions in lifecycle costs and project timelines.

• Corrosion Defense: Raw water often carries dissolved oxygen and salts that penetrate porous concrete, leading to rebar oxidation and structural "rot." FBE is an inert, non-porous barrier that stops chemical contact with the steel.
• Rapid Installation: Center Enamel’s FBE tanks are assembled using a modular bolted system. A standard raw water reservoir can be completed in 7–15 days, whereas concrete requires months of formwork and a 28-day curing cycle.
• Maintenance & Hygiene: The smooth FBE surface inhibits the growth of algae and biofilm, which are common in raw water. This simplifies the pre-treatment cleaning process and reduces the chemical demand during the primary treatment stage.
• Seismic Resilience: Engineered to ASCE 7-22, bolted steel tanks provide the flexible strength necessary to withstand seismic activity, whereas rigid concrete structures are prone to cracking and catastrophic failure during ground shifts.

3. Key Applications in the Water Cycle

The FBE Raw Water Tank is engineered for versatility across several critical domains:

• Municipal Pre-Treatment: Acts as an equalization basin for river or well water before it enters a filtration plant.
• Industrial Process Water: Stores untreated water for cooling towers, boiler feed, or manufacturing processes.
• Agricultural Irrigation: Large-scale reservoirs for farm-wide water distribution and fertilizer mixing.
• Fire Protection: Certified to NFPA 22 standards, ensuring a reliable, low-maintenance water reserve for emergency suppression systems.

4. Engineering Standards & Compliance Matrix

For project bankability and insurance compliance, Center Enamel tanks are designed to the most rigorous international codes:

• AWWA D103-19: The global standard for factory-coated bolted steel water tanks.
• ISO 28765:2016: Specifically governing vitreous and porcelain enamels for bolted steel tanks.
• NSF/ANSI 61: Essential if the raw water is intended for eventual human consumption.
• ASCE 7-22: Structural engineering for high wind and seismic load resilience.

5. Frequently Asked Questions (FAQ)

Q: How long do FBE raw water tanks last?

A: With professional factory application and standard maintenance, these tanks have a design life of 25–30 years.

Q: Can these tanks handle sediment-heavy water?

A: Yes. The FBE coating's high pencil hardness (2H–4H) makes it resistant to the minor abrasions caused by suspended solids and grit common in raw water.
