Bolted Steel Commercial Water Tanks For Municipal Water Projects
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W201609013 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W201609013 |
| Coating Thickness: | 0.25mm~0.40mm & Double Coating | Adhesion: | 3,450N/cm |
| Service Life: | ≥30 Years | Holiday Test: | >1500v |
| Elastic: | Same As Steel Sheet ,around 500KN /mm | Capacity: | 20 M3 To 18,000 M3 |
| High Light: | BSCI Bolted Steel Commercial Water Tanks,AWWA D103 Commercial Water Tanks,20m3 Commercial Water Tanks |
||
Product Description

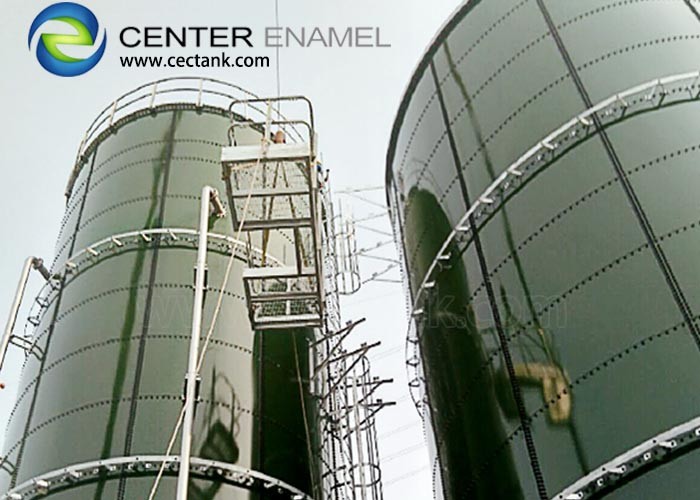

Bolted Steel Commercial Water Tanks For Municipal Water Projects
Bolted Steel Commercial Water Tanks come in various sizes and are suitable for a variety of applications, such as fire water tanks, raw water tanks, industrial liquid storage tanks, biological digestion tanks, zinc-calcium tanks, glass fiber reinforced plastic tanks and reverse osmosis tanks. Center Enamel is one of the leading bolt tank manufacturers and a pioneer in the manufacture of storage tanks and storage tanks.
We provide Bolted Steel Commercial Water Tanks solutions for various applications such as industrial water tanks, from concept to commissioning, and redouble our efforts by holding customers' hands to the operation and maintenance of bolted water tanks.
Center Enamel has been designed , manufactured and installed bolted steel tanks for many years. These bolted steel liquid storage tanks are fabricated with glass fused to steel panels bolted together with custom rubber gaskets separating each panel, making them water-tight. Each liquid storage tank is engineered to your site’s specification and installed by a factory-trained crew. They are AWWA D103-09 and NSF 61 standards, with a variety of roof styles, colors, add on options make them the perfect solution for many commercial, industrial and municipal water projects.
Center Enamel is the first Bolted Steel Commercial Water Tanks manufacturer in China. In the past 30 years, We have designed, manufactured and installed our Glass-Fused-to-Steel Bolted liquid storage tanks for more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. Center Enamel is not only the first Glass-Fused-to-Steel Bolted liquid storage tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel Bolted liquid storage tanks manufacturer in all of Asia. We offer 30m³ to 20000m³ tanks to meet any kind of industry requirement.
Bolted Steel Commercial Water Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
With Center Enamel, our Bolted Steel Commercial Water Tanks systems are engineered and fabricated to satisfy your unique specifications, including AWWA D103-09. Our professional engineers who have years of design experience in a wide variety of industry-specific standards and applications. our storage tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the Bolted Steel Commercial Water Tanks structure's adequate security in long-term service life.
