Industrial Wastewater Storage Tank For Waste Water Treatment Projects
| Place of Origin: | CHINA |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20180508003 |
| Minimum Order Quantity: | 1 SET |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates;wooden pallets and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180508003 |
| Coating Color: | Dark Green, Or Customizing Colors | Coating Thickness: | 0.25~0.40mm, Double Coating |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Adhesion: | 3,450N/cm |
| Hardness: | 6.0 Mohs | Holiday Test: | >1500V |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Permeability: | Gas / Liquid Impermeable |
| Foundation: | Concrete Or Glass Fused Steel | Steel Grade: | ART 310 |
| Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | High Light: | Industrial Wastewater Storage Tank,500 KN/mm Wastewater Storage Tank,Digester Wastewater Storage Tank |
Product Description
Industrial wastewater storage tank For WasteWater Treatment Projects
Industrial wastewater is the wastewater discharged from industrial production, including cooling water and polluted industrial wastewater. Now more and more factory establishes its own industrial wastewater treatment plant by using industrial wastewater storage tank as industrial wastewater storage tank in order to reuse of the wastewater. The treated water can be used as process cooling water, site flushing water and plant water, which reduce production costs for the industy.
Industrial wastewater storage tank is assembled by Glass-Fused-To-Steel plate and fixed by self - locking bolt. Then the sealing glue is applied to the joint gap and bolt position to improve airtightness of the tank. The service life of Glass-Fused-To-Steel tank is more than 30 years, because the Enamel glaze and steel plate surface are fused together after heat treatment at 850-940℃ and then create a tough and inert bond, which combines the strength of steel with the outstanding chemical and physical corrosion resistance of glass.
Industrial wastewater storage tank Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Industrial wastewater storage tank manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

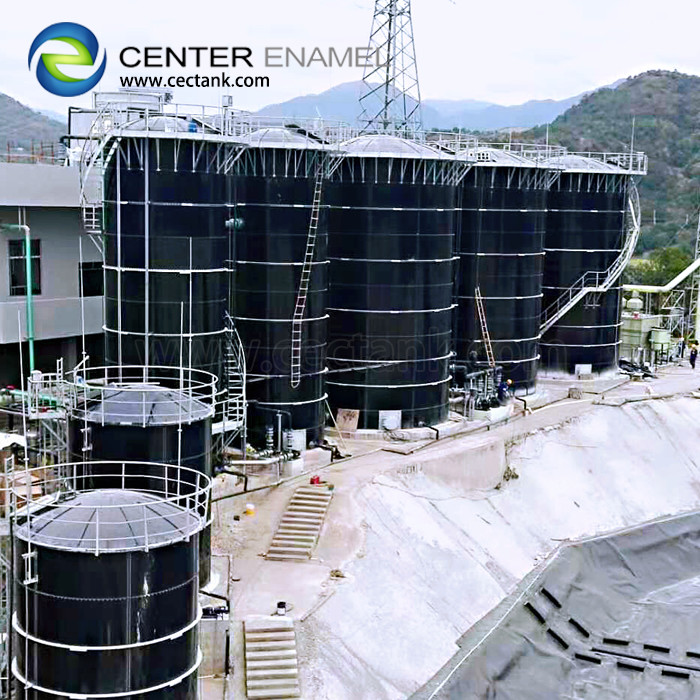

Industrial wastewater storage tank Project References
