Bolted Makeup Water Tank: Panel Design, AWWA D103-19 And Erection Quality

A bolted makeup water tank is an assembled steel vessel built from factory-coated panels, sealed gaskets, and high-grade bolts erected on site, rather than welded in a shop. For a cooling, process, or utility buffer that must stay code-aware and repairable, the bolted route offers fast erection, panel-level traceability, and easy future expansion. This article explains what a bolted makeup tank actually is, how the panels and joints are specified, and which QA steps separate a tank that holds water from one that leaks at the first thermal cycle.

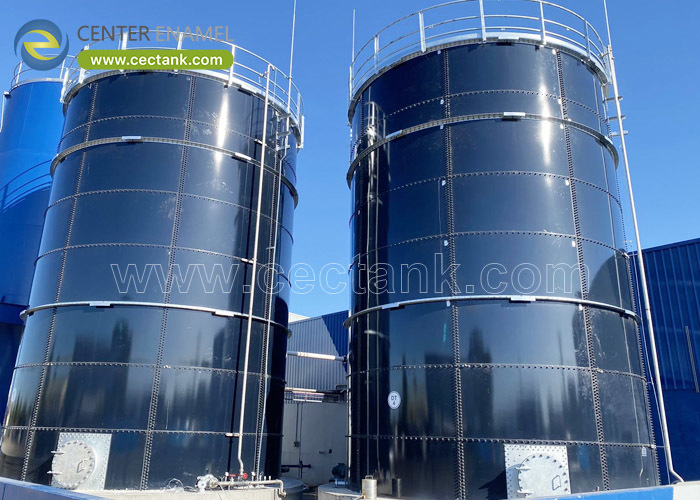

A bolted makeup tank is a cylindrical liquid-storage vessel whose wall is made of flat or curved steel panels manufactured, coated, and inspected in a controlled factory, then shipped and bolted together at the site. The bolted method moves the critical quality step - coating - indoors, which is why it is the default for large, potable-grade water buffers where field welding and field painting are harder to control.

The alternative is a welded tank, where the shell is fabricated and coated on site. For a makeup buffer, the bolted route usually wins on erection speed, panel traceability, and the ability to add a ring later if demand grows.

• Factory-coated panels.
• Site-bolted assembly.
• Indoor QA, outdoor speed.
• Expandable by adding rings.

The panel is the unit of quality: low-carbon steel of a defined grade, coated with glass-fused-to-steel (fired at 820-930 C) or fusion-bonded epoxy, with a quoted thickness and a 1500 V holiday-test pass recorded per batch. The bolt is equally important - 8.8 grade as standard, with sealed washers and gaskets rated for the stored medium and the temperature swing the buffer will see.

Specify the bolt grade and gasket material in the purchase order; a tank that is perfect on the panel but weak on the seal will find that weakness at the joint, not the wall.

• GFS fired 820-930 C.
• 1500 V holiday test.
• 8.8-grade bolts.
• Medium-rated sealed gasket.

Erection follows the panel sequence the factory packed, with each ring plumbed and torqued to the specified value before the next is added, and the gasket compressed evenly so no joint is over- or under-sealed. The roof and floor seals close the system, and a final fill test confirms there is no weep before the tank is handed over.

Torque records are not paperwork; they are the difference between a tank that holds and a tank that weeps at the first thermal cycle, so keep them as part of the acceptance file.

• Follow packed sequence.
• Torque recorded per ring.
• Even gasket compression.
• Final fill test before handover.

AWWA D103-19 is the anchor for factory-coated bolted carbon steel tanks, covering design, fabrication, coating, and testing; ISO 28765 is the international companion for enamel-coated tanks. For potable water, the lining must additionally carry NSF-61 product-specific certification. A supplier that says 'AWWA compliant' should show the edition and the coating and NSF-61 evidence, not just the words.

The standard names the edition; the QA proves the claim, so require both before the order is placed.

• AWWA D103-19 anchor.
• ISO 28765 companion.
• NSF-61 for potable.
• Edition + evidence required.

We have no makeup-water or data-center project in this library. Our Indonesian bolted GFS drinking-water tank (21,088 m3, phi42.04 m, 2024) is a real bolted water-tank delivery cited as proof of our ability to design and deliver large, potable-grade bolted tanks, not as a makeup or data-center project. The specifications above reflect documented GFS/FBE and AWWA D103-19 parameters, not a specific makeup contract.

Every figure reflects documented bolted-tank production parameters, and the application (makeup water for cooling or data centers) remains analogous and is not claimed.

• No makeup / DC project.
• Real Indonesian delivery 2024.
• Analogous, not claimed.
• Params documented.

A bolted makeup water tank is best understood as a factory-quality shell assembled in the field: coated panels, 8.8-grade bolts, sealed gaskets, and a panel-ID system, all designed to AWWA D103-19 or ISO 28765 with an NSF-61 lining where the water is potable. The quality that matters is split between the panel and the joint - specify both, verify the coating by holiday test and the bolt by grade, and keep the torque and fill-test records as the acceptance file. Center Enamel's real Indonesian bolted GFS drinking-water tank (21,088 m3, 2024) shows we design and deliver large, potable-grade bolted water tanks; the makeup or data-center application remains analogous and is not claimed. Choose the bolted route when you value coating control, erection speed, and the option to expand, and the buffer will hold on the first thermal cycle instead of weeping on it.
