15000-Gallon Makeup Water Storage Tank: Design, Transport And Application

A 15000-gallon makeup water storage tank (roughly 56.8 m3) sits in the large-mid class: well beyond a packaged skid, but smaller than the 150-500 m3 tanks that anchor the biggest plants. It suits a sizeable cooling tower, a process line, or a multi-unit program where a multi-day buffered make-up is the planning target. This article covers sizing, transport, and the engineering choices that matter at 15000 gallons.

At 15000 gallons the tank typically buffers several days for a large tower or process loop; size from measured evaporation, drift, and blowdown rather than a fixed rule, and add margin for the hottest or driest week. Under-sizing forces frequent refill and pump cycling; over-sizing wastes footprint and capital. The buffer target should follow your loss data and risk tolerance, not a catalogue size.

Your data, not the gallon number, sets the right volume.

• ~1.5-2% flow/day.
• Buffers several days.
• Size from measured loss.
• Margin for hot week.

A 15000-gallon tank in bolted panels generally ships in a 40 ft container, which is why this size suits export and remote sites despite its larger volume. Confirm panel dimensions against your freight and door clearances before booking, and plan crane or forklift access for erection. Compare this with a welded tank, which may need break-bulk or flat-rack shipping and costs more to move.

Panel packing keeps it inside standard containers.

• Fits 40 ft container.
• Good for export / remote.
• Check door clearances.
• Plan lift access.

As with any make-up tank, the lining decides water quality and life. GFS or FBE gives an inert, holiday-tested surface; 304 or 316 stainless suits compact high-purity loops. Where potable-grade, meet NSF-61 or the local equivalent and add EN 1717 backflow protection at the connection. At 15000 gallons the coating area is large, so QA consistency across panels matters more than at small sizes.

Specify per-panel holiday testing, not batch-average claims.

• GFS / FBE inert lining.
• SS304/316 for pure loops.
• NSF-61 potable grade.
• Per-panel holiday test.

A bolted-panel tank at 15000 gallons can usually be raised later by adding course rings, which is a real advantage for a growing site. Confirm the foundation and anchor design allow a future height increase before building, because retrofitting the slab is far costlier than designing for it. Welded tanks are harder to expand.

Design the slab for the future height, not just today.

• Bolted raises later.
• Design slab for growth.
• Welded hard to expand.
• Plan ahead.

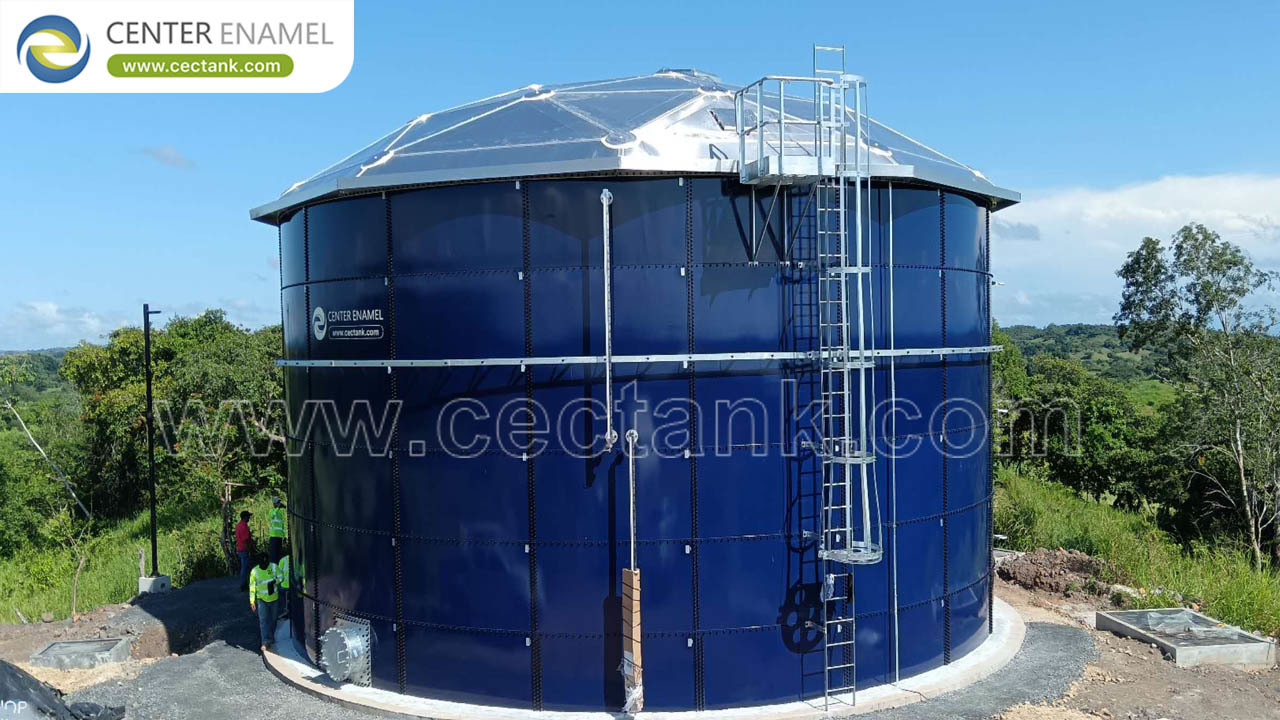

We have no makeup-water or data-center project in this library. The Guyana (162 m3, 2025) and Barbados (233 m3, 2024) clean-water deliveries are real coated-tank references cited as analogous evidence of compact-to-mid builds, not makeup or data-center deliveries. The 15000-gallon points above reflect documented tank parameters, not a specific makeup contract.

• No makeup / DC project.
• Real mid builds 2024-25.
• Analogous, not claimed.
• Params documented.

Typically several days for a large tower or process loop, based on ~1.5-2 percent daily circulating-flow loss at 3-5 concentration cycles, plus margin for the hottest week.

Usually yes when panel-packed in a 40 ft container, which is why this size suits export and remote sites; confirm dimensions against door clearances.

Bolted panels suit transport and future expansion; welded offers shape freedom but is harder to expand and may ship break-bulk.

A GFS or FBE inert, holiday-tested lining, with 304/316 stainless for compact high-purity loops and NSF-61 where potable-grade.

A bolted tank usually can be raised by adding course rings if the foundation and anchors were designed for it; confirm that before building.

Not in our project library. We cite real mid-size coated-water deliveries as analogous capability, not makeup or data-center projects.

Specify per-panel holiday testing and recorded thickness rather than batch-average claims, because the coated area is large.

A surveyed slab matched to the filled weight and soil bearing, designed for the future height if expansion is planned; confirm with the local engineer.

Yes - a sealed, shaded, evaporation-tight build for hot regions; sealed and vented for damp regions; cycling-resistant lining for thermal-swing sites.

A 15000-gallon makeup water storage tank belongs in the large-mid class: size it from measured loss with margin for the worst week, build it as bolted panels so it ships in a 40 ft container and can expand later, and specify a per-panel holiday-tested inert lining because the coated area is large. Design the foundation for a future height increase if growth is likely, and match the roof and coating to the real climate. Center Enamel's real Guyana (162 m3, 2025) and Barbados (233 m3, 2024) coated-water deliveries show we build compact-to-mid tanks; the makeup or data-center application is analogous and not claimed. Lead with your loss data and the climate, and the 15000-gallon buffer will fit the program instead of constraining it.
