Municipal Sewage Treatment Project EPC Contractor in Pakistan: A2O Process for Sustainable Urban Wastewater

This guide explains how a professional Municipal Sewage Treatment Project EPC Contractor in Pakistan designs, builds, and commissions urban wastewater facilities centered on the A2O Process. It covers the country's sewage burden, the biological treatment train, the value of GFS tanks, available covers and tank materials, supporting equipment, and the advantages of single-source delivery for Pakistani cities seeking compliance and water reuse.

Municipal Sewage Generation and Treatment Challenges in Pakistan

Pakistan's cities are expanding rapidly, and municipal sewage generation has risen in step. Households, commercial centers, hospitals, schools, markets, and adjacent small industrial zones discharge large volumes of domestic wastewater that typically contains organic matter, nitrogen, phosphorus, pathogens, suspended solids, and household or industrial chemicals. In many Pakistani cities, sewer networks are incomplete, and large portions of sewage flow into open drains, canals, rivers, and coastal waters with little or no treatment. During monsoon events, stormwater runoff mixes with dry-weather sewage, surging hydraulic loads and overwhelming existing plants. Untreated effluent contaminates drinking-water sources, spreads waterborne disease, and damages agriculture and fisheries. Land for new treatment works is scarce, budgets are constrained, and operational expertise is uneven-all of which make it essential for municipalities to engage an experienced Municipal Sewage Treatment Project EPC Contractor that can deliver compact, robust, and low-maintenance plants.

Municipal Sewage Treatment Process Flow

A modern municipal treatment plant serving Pakistani urban centers follows a clear biological sequence. Influent first enters a collecting tank that equalizes flow and quality, smoothing peak loads before the biological stage. The wastewater then moves into an anaerobic tank, where anaerobic microorganisms hydrolyze and ferment complex organic compounds. From there it flows to an anoxic tank, where denitrifying bacteria use influent carbon to reduce nitrate in the return mixed liquor to nitrogen gas. The mixed liquor then enters an aerobic tank, where oxygen-breathing bacteria oxidize residual organics and convert ammonia into nitrate through nitrification. A membrane bioreactor (MBR) tank often follows, substituting for a secondary clarifier and retaining a dense biomass for higher effluent quality. Final polishing is provided by ultraviolet (UV) disinfection, after which the treated water is discharged or reused. Residual sludge is pumped to a sludge thickener, then dewatered, and finally removed from site for safe disposal or further processing.

Understanding the A2O Process

The A2O Process-anaerobic, anoxic, aerobic-is a compact biological solution designed to remove carbon, nitrogen, and phosphorus in a single integrated train. In the anaerobic reactor, phosphate-accumulating organisms take up readily biodegradable organics while releasing stored phosphorus, preparing the biomass for phosphorus removal downstream. In the anoxic reactor, nitrate returned from the aerobic zone is denitrified to nitrogen gas, cutting total nitrogen load and preventing algal growth in receiving waters. In the aerobic reactor, microorganisms complete carbon oxidation, nitrify ammonia to nitrate, and uptake phosphorus for eventual removal with waste sludge. Internal mixed-liquor recirculation and sludge recirculation tie the three zones together, maintaining stable microbial populations even when influent strength varies. The A2O Process is favored for Pakistani municipal projects because it delivers reliable nutrient removal with moderate energy use, flexible operation, and effluent quality suitable for discharge or urban reuse-exactly the baseline that any serious Municipal Sewage Treatment Project EPC Contractor in Pakistan will engineer around.

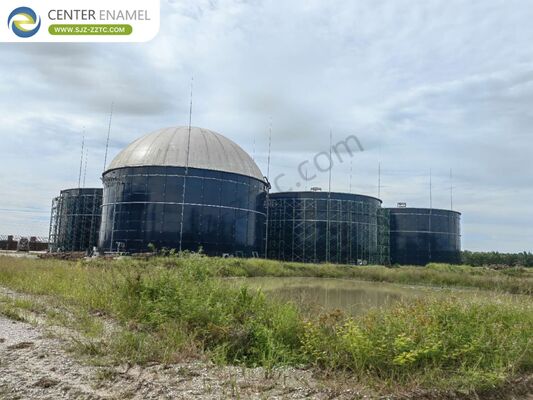

Advantages of GFS Tanks in Municipal Sewage Projects

Glass-Fused-to-Steel (GFS) tanks are well suited to Pakistan's municipal wastewater duty. Produced by firing glass onto steel plates at high temperature, GFS forms an inert, inorganic bond that combines the strength and flexibility of steel with the outstanding corrosion resistance of glass. The double-coating (2C2F) build protects against hydrogen sulfide corrosion, odor attack, and the alternating wet and dry conditions found in anaerobic, anoxic, and aerobic tanks. Because panels are factory-coated and bolted together on site, construction is fast even in hot, remote, or densely built urban locations. The smooth glass liner resists fouling and simplifies inspection and cleaning, while modular panel construction allows future expansion by adding extra courses. Certified against international drinking-water and environmental standards, GFS tanks provide long service life, predictable maintenance, and strong lifecycle economics for municipality owners.

Diverse Covers and Storage Solutions from Center Enamel

Center Enamel provides a broad portfolio of covers and tank materials, so each unit can be matched precisely to its service duty:

Aluminum Geodesic Dome Roof-advanced corrosion resistance, wide clear-span coverage, efficient construction, and minimal upkeep, ideal for exposed tanks and odor-sensitive sites.

Glass-Fused-to-Steel Roof-airtight cone roof with internal or external beams, well suited to odor control and pressurized or demanding applications.

Single and Double Membrane Roof-superior choice for anaerobic digestion and biogas recovery, providing gas collection and odor containment as an integrated top.

Aluminum Alloy Trough Deck Roof-economical cover for potable water, wastewater, and firewater tanks, shedding rain and wind without requiring gas-tightness.

Stainless Steel Roof-excellent anti-corrosion performance and long service life in harsh, humid, or high-temperature environments.

FRP Roof-suitable for non-airtight duties such as drinking water, agriculture, fire water, and wastewater storage, available in dome or flat geometry.

Complementing these covers, the tank range includes Galvanized Steel Tanks with a durable hot-dip galvanized coating, Fusion Bonded Epoxy (FBE) Tanks developed with AkzoNobel's coating technology, and AISI 304/316 Stainless Steel Tanks for high-purity or highly corrosive liquids.

Supporting Equipment for a Complete Treatment Line

Reliable auxiliary equipment keeps the biological core stable across flow and load variations. Center Enamel supplies a coordinated package for Pakistani municipal plants:

Screw Stack Sludge Dewatering Machine-continuously thickens and dewater waste sludge, producing a dry cake that is cheap to transport and dispose of.

Sludge Transfer Pump-conveys thickened sludge between the thickener, dewatering unit, and loading points even at high solids concentrations.

Submersible Mixer-prevents sedimentation in anaerobic and anoxic tanks and ensures uniform contact between microbes and substrate.

Lifting Pump-moves influent or intermediate streams between hydraulic stages where elevation differences exist, with compact footprint and easy service.

UV Sterilizer-delivers final disinfection of MBR or secondary effluent, inactivating bacteria and viruses to meet discharge standards.

Sludge Return Pump-recycles settled sludge back to the head of the biological train, preserving the biomass concentration needed for steady A2O performance.

These components work together so that the A2O tanks receive consistent influent, mixing, recirculation, and sludge management through daily and seasonal swings.

Center Enamel as a One-Stop Municipal Sewage Solution Provider

Center Enamel is a comprehensive high-tech enterprise focused on wastewater treatment engineering, process-section contracting, and equipment manufacturing. For Pakistani municipalities, this means a single accountable EPC partner:

Full in-house engineering-a dedicated team handles environmental design, construction, commissioning, and R&D, removing the friction of coordinating multiple contractors.

Strong manufacturing capacity-a 150,000 m² R&D and manufacturing center producing 300,000 panels per year ensures on-time delivery of tanks, covers, and equipment.

Turnkey delivery-services cover engineering design, equipment fabrication, and on-site construction, supported by a skilled installation workforce.

Global project experience-Center Enamel has implemented wastewater projects across multiple countries in municipal sewage, biogas, livestock, and industrial segments.

Tailored process design-the A2O biological core can be paired with MBR, UV disinfection, and advanced sludge handling to meet local discharge or reuse standards.

Long-term operational support-commissioning, operator training, and spare-parts supply help municipal teams sustain design performance over the plant's life.

Conclusion

Pakistan's cities need cost-effective, compact, and durable wastewater infrastructure more than ever. The A2O Process, housed in corrosion-resistant GFS tanks and topped with purpose-built covers, delivers stable carbon, nitrogen, and phosphorus removal while leaving room for future expansion. Engaging an experienced Municipal Sewage Treatment Project EPC Contractor in Pakistan streamlines delivery, protects lifecycle cost, and produces effluent that can be safely returned to the environment or reused. Center Enamel's integrated design, manufacturing, and installation capability is positioned to meet this demand.

Frequently Asked Questions

Why is nitrogen and phosphorus removal important in municipal sewage?

Excess nitrogen and phosphorus discharged into rivers or lakes trigger eutrophication, algal blooms, fish kills, and impaired drinking-water treatment. Biological removal protects downstream water bodies and supports safer reuse.

Can an A2O plant be expanded later?

Yes. Because the biological process is modular and GFS tanks can be enlarged by adding panel courses, plants can be upsized in stages as population and flow grow, avoiding a single large upfront investment.

What maintenance does a UV disinfection unit require?

UV lamps need periodic replacement, and quartz sleeves must be cleaned to maintain transmittance. Compared with chemical disinfection, UV operation is simpler, produces no residual chemical by-products, and fits compact urban plants.
