A2O Process Technology with GFS Tanks for New Zealand Municipal Sewage Treatment

This article outlines how the A2O Process is deployed in Municipal Sewage Treatment projects across New Zealand, using GFS Tanks as robust, modular containment vessels. It covers New Zealand's sewage generation and treatment challenges in Auckland, Wellington, Christchurch, and regional councils, the A2O biological treatment flow, the advantages of glass-fused-to-steel tanks, available covers and materials, supporting equipment, and why single-source turnkey delivery matters for coastal communities.

New Zealand's population is concentrated around Auckland, Wellington, Christchurch, Hamilton, Tauranga, and Queenstown, with many smaller coastal and rural communities. Households, tourism businesses, hotels, hospitals, schools, commercial districts, and mixed small industrial zones generate municipal sewage containing organic matter, nitrogen, phosphorus, pathogens, suspended solids, and household or small industrial chemicals. Strict environmental protections apply to receiving waters-particularly coastal harbors, shellfish-growing areas, rivers, and lakes-because of their ecological, cultural, and recreational value. Aging infrastructure, combined with intense rainfall events and coastal groundwater infiltration, has led to overflows and beach closure risks in several cities. Many councils face limited capital, scarce skilled construction labor, and high cost of works in geographically dispersed regions. Land for new treatment plants is constrained, and owners require long asset life, low odor impact, and proven discharge reliability. These conditions make a modern Municipal Sewage Treatment plant built around the A2O Process and housed in GFS Tanks a strategic choice for New Zealand councils.

A modern New Zealand municipal treatment plant follows a clear biological sequence. Influent first enters a collecting tank that equalizes flow and quality, smoothing diurnal peaks and intense rainfall surges. The wastewater then flows into an anaerobic tank, where anaerobic microorganisms decompose complex organic compounds into simpler molecules. Next, it passes into an anoxic tank, where denitrifying bacteria use influent carbon to reduce nitrate from the return mixed liquor to nitrogen gas. The mixed liquor then moves to an aerobic tank, where aerobic bacteria further oxidize residual organics and carry out nitrification, converting ammonia nitrogen into nitrate. In many plants, a membrane bioreactor (MBR) tank follows, replacing the secondary clarifier and retaining a dense microbial biomass for high-efficiency treatment. Final effluent is polished by ultraviolet (UV) disinfection before ocean outfall, discharge to land, or reuse. Residual sludge is directed to a sludge thickener, dewatered, and then transported off-site for land application, composting, or safe disposal.

The A2O Process-anaerobic, anoxic, aerobic-is a compact biological configuration chosen widely for municipal sewage because it removes carbon, nitrogen, and phosphorus in a single integrated train. In the anaerobic reactor, phosphate-accumulating organisms take up readily biodegradable organics while releasing stored phosphorus, preparing the biomass for phosphorus removal downstream. In the anoxic reactor, nitrate returned from the aerobic zone is denitrified into nitrogen gas, cutting total nitrogen load and protecting harbors, estuaries, and lakes from eutrophication. In the aerobic reactor, microorganisms complete carbon oxidation, nitrify ammonia to nitrate, and uptake phosphorus that is ultimately removed with waste sludge. Internal mixed-liquor and sludge recirculation streams connect the three zones into a closed loop, maintaining stable microbial populations despite variable tourism-driven flows and seasonal rainfall. For New Zealand councils, the A2O Process is attractive because it meets strict coastal discharge rules with moderate energy use, good sludge settleability, and low odor impact when enclosed.

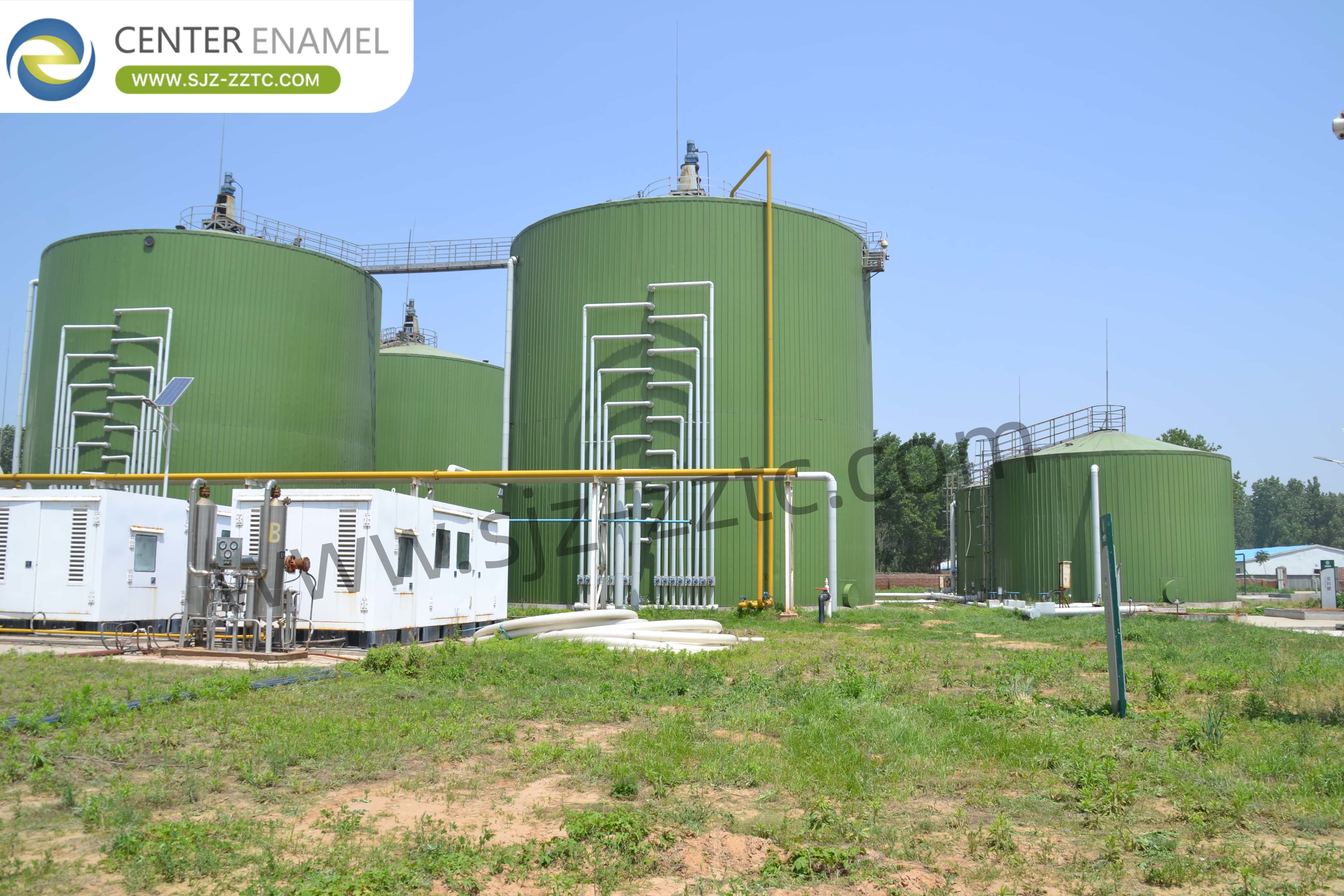

GFS Tanks are well suited to New Zealand's coastal, temperate, and sometimes seismic service environment. Formed by firing molten glass onto steel plates at high temperature, GFS creates an inert, inorganic bond that combines steel's strength and flexibility with glass's outstanding corrosion resistance. The double-coating (2C2F) build resists hydrogen sulfide attack, sea-air corrosion, odor, and the alternating wet–dry conditions found in biological treatment units. Because panels are factory-coated and bolted on site, components can be shipped across islands and regional ports, and erection is fast without large welded-field operations. The smooth glass liner resists fouling and simplifies inspection and cleaning, while modular panel construction allows capacity expansion by adding extra courses as tourism and urban flows grow. Certified to international drinking-water and environmental standards, GFS Tanks offer long service life, low maintenance, and strong lifecycle economics for New Zealand's Municipal Sewage Treatment assets.

Center Enamel offers a broad portfolio of covers and tank materials beyond standard GFS vessels, allowing engineers to match each unit to its exact service condition:

• Aluminum Geodesic Dome Roof-advanced corrosion resistance, long clear-span capability, efficient construction, and minimal maintenance, ideal for exposed coastal and odor-sensitive tanks.
• Glass-Fused-to-Steel Roof-airtight cone roof with internal or external beams, suitable for odor control and pressurized or demanding wastewater applications.
• Single and Double Membrane Roof-superior choice for anaerobic digestion and biogas recovery, providing integrated gas collection and odor containment.
• Aluminum Alloy Trough Deck Roof-economical cover for potable water, wastewater, and firewater storage, shedding rain and wind without requiring airtightness.
• Stainless Steel Roof-excellent anti-corrosion performance and long service life in harsh coastal environments.
• FRP Roof-suitable for non-airtight duties such as drinking water, agriculture, fire water, and wastewater storage, available in dome or flat shapes.

Complementing these covers, the tank range includes Galvanized Steel Tanks with a durable hot-dip galvanized coating, Fusion Bonded Epoxy (FBE) Tanks developed with AkzoNobel coating technology, and AISI 304/316 Stainless Steel Tanks for high-purity or highly corrosive liquids.

Reliable auxiliary equipment keeps the biological core stable across New Zealand's rainfall and tourism-driven flow variations. Center Enamel supplies a coordinated equipment package for municipal plants:

• Screw Stack Sludge Dewatering Machine-continuously thickens and dewater waste sludge into a dry cake, lowering transport and disposal or land-application costs across dispersed regions.
• Sludge Transfer Pump-reliably conveys thickened sludge between the thickener, dewatering unit, and loading points even at high solids concentration.
• Submersible Mixer-prevents sedimentation in anaerobic and anoxic tanks and ensures uniform contact between microorganisms and substrate.
• Lifting Pump-transfers influent or intermediate streams between hydraulic stages where elevation differences exist, with compact footprint and easy service.
• UV Sterilizer-delivers final disinfection of MBR or secondary effluent, inactivating bacteria and viruses to meet New Zealand coastal discharge standards.
• Sludge Return Pump-recycles settled sludge back to the head of the biological train, preserving the biomass concentration needed for steady A2O performance.

These components work together so that the A2O tanks receive consistent influent, mixing, recirculation, and sludge management through both dry-season low flows and intense storm events.

Center Enamel is a comprehensive high-tech enterprise focused on wastewater treatment engineering, process-section contracting, and equipment manufacturing. For New Zealand Municipal Sewage Treatment project delivery, this means a single accountable partner:

• Full in-house engineering-a dedicated team handles environmental design, construction, commissioning, and R&D, removing the friction of coordinating multiple vendors across island and regional sites.
• Strong manufacturing capacity-a 150,000 m² R&D and manufacturing center producing 300,000 panels per year ensures on-time delivery of GFS Tanks, covers, and auxiliary equipment.
• Turnkey delivery-services cover engineering design, equipment fabrication, and on-site construction, supported by a skilled installation workforce.
• Global project experience-Center Enamel has implemented wastewater projects across multiple countries in municipal sewage, biogas, livestock, and industrial segments.
• Tailored process design-the A2O biological core can be paired with MBR, UV disinfection, and advanced sludge handling to meet local coastal discharge or reuse standards.
• Long-term operational support-commissioning, operator training, and spare-parts supply help local teams sustain design performance over the plant's life.

New Zealand's coastal communities need Municipal Sewage Treatment solutions that protect harbors, shellfish waters, and recreational beaches while offering long asset life and low odor impact. The A2O Process, housed in modular GFS Tanks and topped with purpose-built covers, delivers stable carbon, nitrogen, and phosphorus removal while allowing staged expansion. Engaging a single-source turnkey provider streamlines delivery across island logistics, protects lifecycle cost, and produces effluent that can be safely discharged. Center Enamel's integrated design, manufacturing, and installation capability is positioned to meet this demand.

New Zealand's harbors and estuaries support shellfisheries, recreation, and cultural values. Nutrient and pathogen discharges can cause algal blooms, beach closures, and contamination of shellfish beds, so treatment plants must reliably remove both.

Yes. Because GFS tanks are bolted and modular, additional panel courses can be added as population and tourism flows grow, allowing staged investment without replacing existing vessels.

UV radiation inactivates bacteria, viruses, and other microorganisms without adding residual chemicals. It provides a compact final barrier that helps effluent meet coastal discharge requirements after biological treatment.
