Palm Oil Wastewater Treatment in Côte d'Ivoire: GFS Tanks and USR Process

Côte d'Ivoire, as Africa's second-largest palm oil producer with an annual output of 600,000 metric tons, faces increasing environmental challenges from Palm Oil Mill Effluent (POME) generated by its expanding milling operations. This high-strength organic wastewater requires effective treatment to meet environmental standards while offering opportunities for renewable energy recovery. This article explores how Glass-Fused-to-Steel (GFS) Tanks combined with the Upflow Solids Reactor (USR) Process provide robust solutions for Ivorian palm oil mills, converting waste into valuable biogas resources while ensuring environmental compliance across both large-scale and smallholder operations.

Côte d'Ivoire's palm oil industry generates substantial POME during the oil extraction process. The processing of fresh fruit bunches through rinsing, pressing, and clarification stages produces significant volumes of high-strength wastewater characterized by ultra-high organic concentration. Raw POME typically exhibits acidic pH conditions ranging from 3.3 to 4.6 and contains high oil and grease concentrations. Typical POME characteristics include COD levels of approximately 50,400 mg/L, total suspended solids of 21,000 mg/L, and a total solids content of 28,000 mg/L. The low pH is caused by the presence of phenolic acids and volatile fatty acids including acetic acid, propionic acid, and butyric acid. With each ton of fresh fruit bunches processed generating approximately 0.7 to 1 m³ of POME, effective management is essential for protecting Côte d'Ivoire's water resources and maintaining environmental quality.

Effective POME treatment follows a systematic process that protects water resources while recovering renewable energy. The treatment begins with mechanical bar screens that remove large suspended solids and floating debris, preventing subsequent equipment blockage and damage. Horizontal flow oil separators are then utilized to remove oil and grease, reducing the organic load on biological treatment units. A regulating tank balances flow fluctuations, temperature variations, and pH levels, creating consistent conditions for anaerobic digestion. The conditioned wastewater then enters the anaerobic digester where microorganisms break down organic matter in an oxygen-free environment. Following digestion, treated effluent undergoes further stabilization and can be applied to farmland as fertilizer, utilizing the nitrogen, phosphorus, potassium, calcium, and magnesium naturally present in POME.

The Upflow Solids Reactor (USR) Process is an advanced anaerobic digestion technology particularly effective for POME treatment, specifically engineered to process high-load organic industrial wastewater under oxygen-free conditions. The USR is ideally suited for treating organic wastewater with solid content (TS) between 3% and 6%, making it an ideal match for raw POME. In the USR Process, wastewater is distributed evenly at the bottom of a vertical, cylindrical, air-tight reactor tank through a specially engineered water distribution system. As the liquid flows upward, it passes through a dense bed of anaerobic solids, where microorganisms digest the organic material and produce biogas. Under mesophilic digestion conditions (35–37°C), the volumetric load for POME is typically maintained at 3–5 kg COD/(m³·d). The USR achieves COD removal rates exceeding 85–90%, offers a compact vertical footprint requiring minimal land area compared to conventional open ponds, and fully captures biogas for energy recovery rather than releasing fugitive methane emissions.

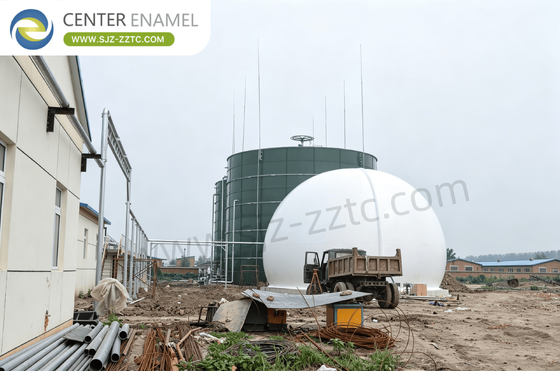

Glass-Fused-to-Steel (GFS) Tanks serve as the foundation of modern POME treatment infrastructure in Côte d'Ivoire. Manufactured by firing molten glass onto steel plates at temperatures of 830–850°C, these tanks create an inert, inorganic bond that combines the strength and flexibility of steel with exceptional corrosion resistance of glass. The finished coating is impervious to liquids and vapours, offering strong resistance to algae and bacterial growth while being highly UV resistant. GFS tanks are prefabricated in factory conditions and assembled on-site using a bolted system, significantly reducing construction time compared to traditional concrete or welded structures. With a service life exceeding 30 years and excellent weather resistance, these tanks are ideally suited for Côte d'Ivoire's tropical conditions. Modern GFS tank installations offer a pH resistance range of 1 to 14 and allow for rapid, modular on-site assembly, reducing construction timelines by up to 50% compared to poured concrete structures.

Côte d'Ivoire's palm oil mills benefit from diverse storage and cover solutions tailored to specific treatment requirements. GFS Tanks provide superior corrosion resistance for aggressive wastewater environments. Galvanized Steel Tanks deliver tough, wear-resistant protection through a galvanizing process. Fusion Bonded Epoxy (FBE) Tanks incorporate innovative coating technology developed in collaboration with AkzoNobel. High-quality AISI 304/316 Stainless Steel Tanks meet stringent requirements for demanding applications. Cover solutions include Aluminum Geodesic Dome Roofs for corrosion resistance and broad span capabilities; Glass-Fused-to-Steel Roofs for air-tight pressurized structures suitable for odor control; Single and Double Membrane Roofs optimized for anaerobic digestion and biogas collection; Aluminum Alloy Trough Deck Roofs for economical water storage; Stainless Steel Roofs for superior anti-corrosion performance; and FRP Roofs for non-air-tight applications.

Comprehensive POME treatment requires integrated supporting equipment for reliable operation. Gas Holders provide safe, dependable biogas storage for energy utilization. Lagoons/Black Membrane systems offer economical large-capacity storage for treated effluent. Hot Water Boilers maintain optimal mesophilic digestion temperatures for mills without sufficient waste heat. Emergency Torch Systems ensure safe biogas pressure management during process upsets. Lifting Pumps are specifically designed for handling high-solids wastewater. Dehydration and Desulfurization Tanks purify biogas by removing moisture and corrosive hydrogen sulfide. Screw Sludge Dewatering Machines provide efficient solid-liquid separation, minimizing sludge volume and disposal costs. Each equipment component contributes to a complete, efficient treatment system that maximizes energy recovery and minimizes environmental impact.

As a professional EPC Contractor, Center Enamel delivers comprehensive POME treatment solutions to Côte d'Ivoire's palm oil mills. The company provides full engineering, procurement, and construction services, managing projects from concept through commissioning. With certifications including CE/EN1090, ISO 9001, NSF61, WRAS, and EN28765, quality assurance is maintained throughout project execution. Design standards incorporate AWWA D103, OSHA, EN28765, and EuroCode requirements. Center Enamel's comprehensive approach includes:

• Customized system design based on site-specific wastewater characteristics and treatment goals
• Professional engineering for USR reactors, acidification tanks, and auxiliary systems
• High-quality GFS tanks with corrosion resistance and 30+ year service life
• Complete biogas collection, purification, and utilization systems
• On-site installation supervision with ISO and OSHA safety compliance
• Biological startup, performance testing, and operator training
• Seamless coordination with local contractors and international suppliers

Palm oil mill effluent treatment in Côte d'Ivoire has evolved from simple disposal to a sophisticated process generating renewable energy. GFS Tanks provide robust containment for the USR Process, with corrosion resistance and modular construction enabling fast installation in challenging tropical conditions. The USR Process achieves high removal efficiency while converting organic pollutants into valuable biogas. Through comprehensive EPC services, Center Enamel delivers complete one-stop solutions for Ivorian palm oil mills, ensuring environmental compliance and sustainable energy recovery.
