Advanced GFS Tanks and USR Reactor for Palm Oil Wastewater Treatment in DR Congo

The Democratic Republic of Congo's palm oil industry is experiencing growth across its tropical regions, with mills increasingly seeking effective Palm Oil Mill Effluent (POME) treatment solutions. This high-strength organic wastewater requires robust treatment to meet environmental standards while offering opportunities for renewable energy recovery through advanced anaerobic digestion. This article explores how Glass-Fused-to-Steel (GFS) Tanks combined with the Upflow Solids Reactor (USR) provide comprehensive solutions for Congolese palm oil mills, converting waste into valuable biogas resources while supporting sustainable development.

DR Congo's palm oil industry generates substantial POME during the oil extraction process, with mills located primarily in the country's tropical regions. The processing of fresh fruit bunches through rinsing, pressing, and clarification stages produces significant volumes of high-strength wastewater. Raw POME is characterized by its acidic nature (pH 3.3–4.6), elevated temperatures of 60–80°C, and high organic content with COD ranging from 44,000 to 83,000 ppm and BOD from 14,000 to 34,000 ppm. Studies show POME also contains high suspended solids including fibers, pulp, and sediment that can cause pipeline blockage and equipment abrasion. For every ton of fresh fruit bunches processed, mills discharge approximately 0.7 to 1 m³ of POME. The nutrient-rich effluent contains nitrogen, phosphate, potassium, magnesium, and calcium, making it potentially valuable as fertilizer after proper treatment.

Effective POME treatment follows a systematic process that protects water resources while recovering renewable energy. The treatment begins with mechanical bar screens that remove large suspended solids and floating debris, preventing subsequent equipment blockage and damage. Horizontal flow oil separators are then utilized to remove oil and grease, reducing the organic load on biological treatment units. A regulating tank balances flow fluctuations, temperature variations, and pH levels, creating consistent conditions for anaerobic digestion. The conditioned wastewater then enters the USR reactor where microorganisms break down organic matter in an oxygen-free environment. Following digestion, treated effluent undergoes further stabilization and can be applied to farmland as fertilizer, utilizing the nutrients naturally present in POME.

The Upflow Solids Reactor (USR) is a highly effective anaerobic digestion technology for treating organic wastewater with solid content between 3% and 6%, making it an ideal match for raw POME. Wastewater is distributed evenly at the bottom of a vertical, cylindrical, air-tight reactor tank through a specially engineered water distribution system. As the liquid flows upward, it passes through a dense bed of anaerobic solids where microorganisms digest organic material and produce biogas. The treated effluent overflows through an outlet at the top, while excess sludge is periodically discharged. The USR Process offers several advantages: high solids retention without the need for expensive external separation equipment, stable biogas production even with fluctuating feed conditions, and low energy consumption. This makes the USR reactor the core technology for successful biogas projects in DR Congo.

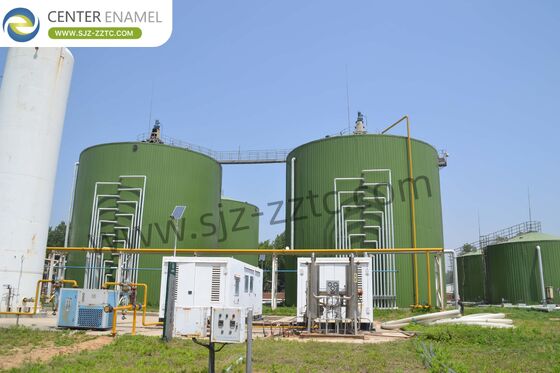

Glass-Fused-to-Steel (GFS) Tanks provide the ideal containment solution for POME treatment systems in DR Congo's challenging tropical environment. Manufactured through a fusion process at high temperatures, GFS tanks create a hard, inert barrier that is impermeable to liquids and vapours, offering excellent impact and abrasion resistance. The GFS coating exhibits strong resistance to algae and bacterial growth and is unaffected by UV rays. Their modular, bolted assembly enables fast on-site erection without welding, particularly advantageous for remote mill locations. GFS tanks withstand pH levels from 1 to 14, making them ideal for demanding wastewater applications. With decades of field-proven performance and a service life exceeding 30 years, GFS tanks provide long-term durability and minimal maintenance requirements.

DR Congo's palm oil mills benefit from diverse storage and cover solutions tailored to specific treatment requirements. Center Enamel offers GFS Tanks providing superior corrosion resistance for aggressive environments. Galvanized Steel Tanks deliver tough, wear-resistant protection through a galvanizing process. Fusion Bonded Epoxy (FBE) Tanks, developed with AkzoNobel, provide innovative coating technology. High-quality AISI 304/316 Stainless Steel Tanks meet stringent requirements for demanding applications. Cover options include Aluminum Geodesic Dome Roofs for corrosion resistance and broad span capabilities; Glass-Fused-to-Steel Roofs for air-tight pressurized structures suitable for odor control; Single and Double Membrane Roofs optimized for anaerobic digestion and biogas collection; Aluminum Alloy Trough Deck Roofs for economical water storage; Stainless Steel Roofs for superior anti-corrosion performance; and FRP Roofs for non-air-tight applications.

Comprehensive POME treatment requires integrated supporting equipment for reliable operation. Gas Holders provide safe, dependable biogas storage for energy utilization. Lagoons/Black Membrane systems offer economical large-capacity storage of treated effluent. Hot Water Boilers maintain optimal mesophilic digestion temperatures for Congolese mills. Emergency Torch Systems ensure safe biogas pressure management and process reliability. Lifting Pumps handle high-solid wastewater effectively. Dehydration and Desulfurization Tanks purify biogas by removing moisture and corrosive hydrogen sulfide. Screw Sludge Dewatering Machines provide efficient solid-liquid separation, minimizing sludge volume and disposal costs. Each equipment component contributes to a complete, efficient treatment system that maximizes energy recovery from POME.

Center Enamel serves as a trusted EPC Contractor providing comprehensive POME treatment solutions for DR Congo's palm oil industry. The company delivers complete turnkey services encompassing engineering design, procurement, construction, and commissioning. With certifications including CE/EN1090, ISO 9001, NSF61, WRAS, and EN28765, quality assurance is maintained throughout project execution. Design standards incorporate AWWA D103, OSHA, EN28765, and EuroCode requirements. Center Enamel's comprehensive approach includes:

• Site assessment and characterization studies adapted to DR Congo's tropical conditions
• Selection of appropriate anaerobic technology (USR for high-solids applications)
• Detailed engineering of USR reactors, tanks, and auxiliary systems
• Civil and mechanical construction management
• Equipment installation and system integration
• Biological startup and performance testing
• Operator training for ongoing operation
• Comprehensive after-sales support

Palm oil mill effluent treatment in DR Congo represents an important opportunity for sustainable development. GFS Tanks provide robust containment for the USR reactor with exceptional corrosion resistance and rapid installation. The USR Process achieves high organic removal efficiency while producing biogas for power generation or boiler fuel. As a professional EPC Contractor, Center Enamel delivers complete one-stop solutions enabling Congolese palm oil mills to meet environmental regulations, generate renewable energy, and create long-term economic value through the circular economy approach to organic waste management.
