Palm Oil Wastewater Treatment in Nigeria: GFS Tanks and Anaerobic Digestion

Nigeria, as one of Africa's largest palm oil producers, faces increasing environmental challenges from Palm Oil Mill Effluent (POME) generated by its extensive milling operations. This high-strength organic wastewater requires effective treatment to meet environmental standards while offering opportunities for renewable energy recovery through anaerobic digestion. This article explores how Glass-Fused-to-Steel (GFS) Tanks combined with advanced Anaerobic Digestion technologies provide robust solutions for Nigerian palm oil mills, converting waste into valuable biogas resources while ensuring environmental compliance across both large-scale and smallholder operations.

Nigeria's palm oil industry, with mills concentrated in regions such as Imo State and other southern oil-producing areas, generates substantial POME during oil extraction processes. The processing of fresh fruit bunches through rinsing, pressing, and clarification stages produces significant volumes of high-strength wastewater characterized by ultra-high organic concentration. Studies from Nigerian mills have shown POME can contain biochemical oxygen demand (BOD) levels ranging from 52 to 233 mg/L across seasons, with total suspended solids (TSS) reaching as high as 14,421 mg/L during dry seasons. Raw POME typically exhibits acidic pH conditions ranging from 3.3 to 4.6 and high oil and grease concentrations. A study of local Nigerian mills revealed oil and grease concentrations reaching 10,500 mg/L — significantly above the environmental guideline limit of 25 mg/L — highlighting the critical need for effective treatment systems to prevent aquatic ecosystem contamination and genotoxic risks to surrounding communities.

Effective POME treatment in Nigeria follows a systematic process that protects water resources while recovering renewable energy. The treatment begins with mechanical bar screens that remove large suspended solids and floating debris, preventing subsequent equipment blockage and damage. Horizontal flow oil separators are then utilized to remove oil and grease, reducing the organic load on biological treatment units. A regulating tank balances flow fluctuations, temperature variations, and pH levels — critical for Nigerian mills where seasonal variations significantly impact POME composition, with pH ranging from 4.1 during wet seasons to as high as 11.7 during dry seasons. The conditioned wastewater then enters the anaerobic digester where microorganisms break down organic matter in an oxygen-free environment. Following digestion, treated effluent undergoes further stabilization and can be applied to farmland as fertilizer, utilizing the nitrogen, phosphorus, potassium, calcium, and magnesium naturally present in POME.

Anaerobic digestion is the most economical and applicable technology for treating POME, particularly in tropical climates like Nigeria where the BOD/COD ratio typically exceeds 0.45, indicating excellent biodegradability. The Upflow Anaerobic Sludge Blanket (UASB) process is a globally proven anaerobic technology that treats wastewater as it flows upward through a dense granular sludge bed, achieving high organic removal efficiency. This technology is well-suited for Nigerian mills with relatively lower suspended solids focusing on liquid-phase treatment. The anaerobic digestion process involves acidogenic bacteria breaking down complex organic compounds, followed by methanogenic bacteria converting volatile fatty acids into methane-rich biogas. For POME with high suspended solids content, the Upflow Solids Reactor (USR) process serves as a complementary technology, preserving sludge in the reactor bottom with solids retention time exceeding hydraulic retention time, ensuring stable biological activity even with fluctuating influent characteristics. Studies have shown that with appropriate inoculum, anaerobic digestion can achieve methane yields of up to 490–509 N mL CH₄/g VS at mesophilic temperatures.

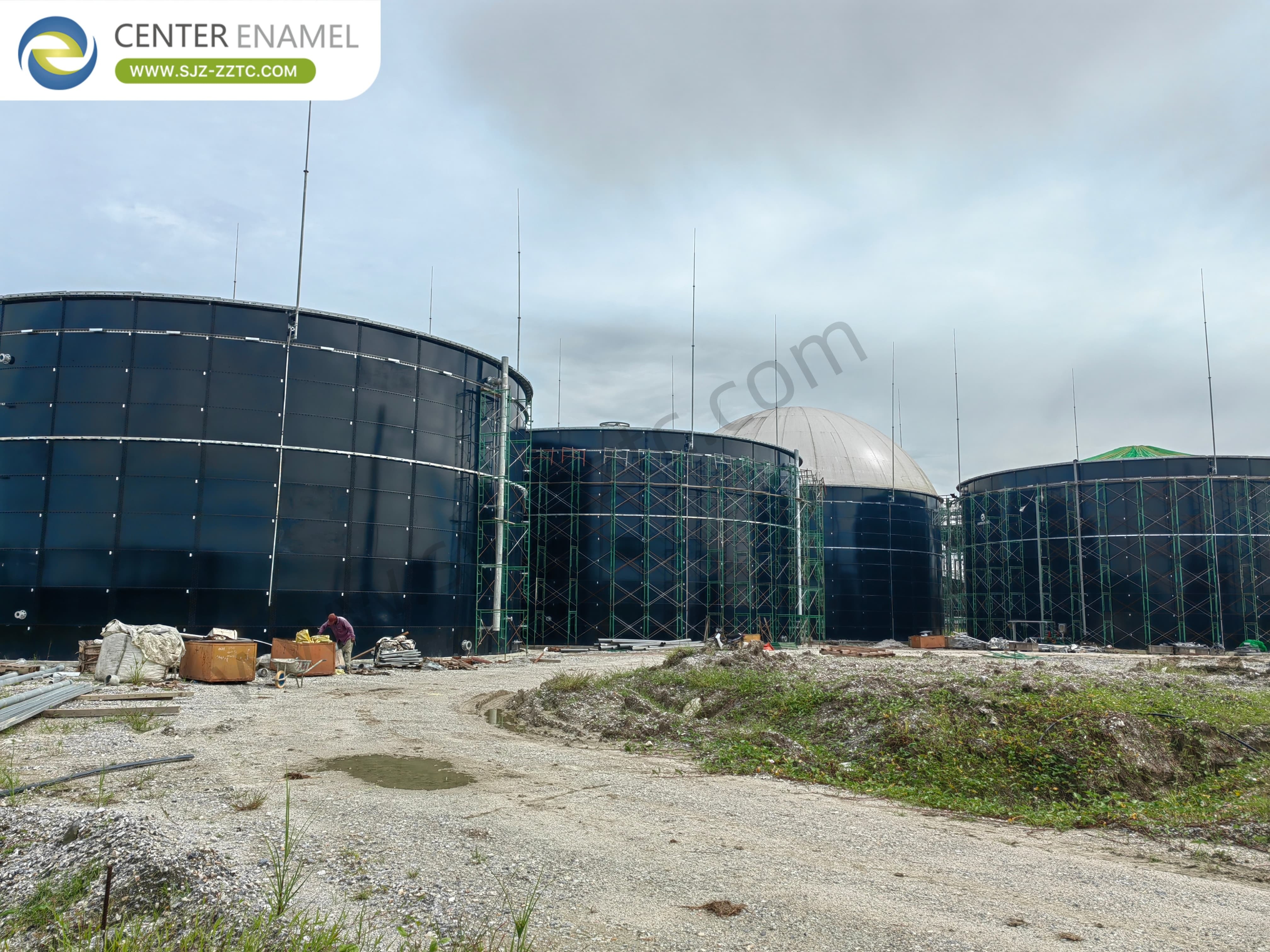

Glass-Fused-to-Steel (GFS) Tanks serve as the foundation of modern POME treatment infrastructure in Nigeria. Manufactured by firing molten glass onto steel plates at temperatures of 830–850°C, these tanks create an inert, inorganic bond that combines the strength and flexibility of steel with outstanding corrosion resistance of glass. The GFS coating provides a hard, tough surface impervious to liquids and vapours, offering strong resistance to algae and bacterial growth while being highly UV resistant. This construction provides exceptional resistance to the acidic, high-strength conditions typical of POME, ensuring long-term durability with minimal maintenance requirements. GFS tanks are prefabricated in factory conditions and assembled on-site using a bolted system that significantly reduces construction time compared to traditional welded or concrete structures. With a service life exceeding 30 years and excellent weather resistance, these tanks are ideally suited for Nigeria's tropical conditions.

Nigeria's palm oil mills benefit from diverse storage and cover solutions tailored to specific treatment requirements. GFS Tanks provide superior corrosion resistance for aggressive wastewater environments. Galvanized Steel Tanks deliver tough, wear-resistant protection through a galvanizing process. Fusion Bonded Epoxy (FBE) Tanks incorporate innovative coating technology. High-quality AISI 304/316 Stainless Steel Tanks meet stringent requirements for demanding applications. Cover solutions include Aluminum Geodesic Dome Roofs for corrosion resistance and broad span capabilities; Glass-Fused-to-Steel Roofs for air-tight pressurized structures suitable for odor control; Single and Double Membrane Roofs optimized for anaerobic digestion and biogas collection; Aluminum Alloy Trough Deck Roofs for economical water storage; Stainless Steel Roofs for superior anti-corrosion performance; and FRP Roofs for non-air-tight applications.

Comprehensive POME treatment requires integrated supporting equipment for reliable operation. Gas Holders provide safe, dependable biogas storage for energy utilization. Lagoons/Black Membrane systems offer economical large-capacity storage for treated effluent. Hot Water Boilers maintain optimal mesophilic digestion temperatures (typically 35°C) for Nigerian mills. Emergency Torch Systems ensure safe biogas pressure management during process upsets. Lifting Pumps are specifically designed for handling high-solids wastewater. Dehydration and Desulfurization Tanks purify biogas by removing moisture and corrosive hydrogen sulfide. Screw Sludge Dewatering Machines provide efficient solid-liquid separation, minimizing sludge volume and disposal costs.

As a professional EPC Contractor, Center Enamel delivers comprehensive POME treatment solutions to Nigerian palm oil mills. The company provides full engineering, procurement, and construction services, managing projects from concept through commissioning. With certifications including CE/EN1090, ISO 9001, NSF61, WRAS, and EN28765, quality assurance is maintained throughout project execution. Design standards incorporate AWWA D103, OSHA, EN28765, and EuroCode requirements. Center Enamel's comprehensive approach includes:

• Customized system design based on site-specific wastewater characteristics and treatment goals
• Professional engineering for anaerobic reactors, acidification tanks, and auxiliary systems
• High-quality GFS tanks with corrosion resistance and 30+ year service life
• Complete biogas collection, purification, and utilization systems
• On-site installation supervision with ISO and OSHA safety compliance
• Biological startup, performance testing, and operator training
• Seamless coordination with local contractors and international suppliers

Palm oil mill effluent treatment in Nigeria has evolved from simple disposal to a sophisticated process generating renewable energy. GFS Tanks provide robust containment for anaerobic digestion, with corrosion resistance and modular construction enabling fast installation in challenging tropical conditions. Anaerobic technologies achieve high removal efficiency while converting organic pollutants into valuable biogas. Through comprehensive EPC services, Center Enamel delivers complete one-stop solutions for Nigerian palm oil mills, ensuring environmental compliance and sustainable energy recovery.
