Palm Oil Wastewater Treatment in Malaysia: USR Process and EPC Contractor Solutions

Malaysia, as one of the world's leading palm oil producers, faces significant environmental challenges from Palm Oil Mill Effluent (POME). This high-strength organic wastewater requires specialized treatment to meet environmental standards while offering opportunities for renewable energy recovery. This article explores how the Upflow Solids Reactor (USR) Process, delivered by professional EPC Contractors like Center Enamel, provides effective solutions for Malaysian palm oil mills, converting waste into valuable biogas resources.

Palm oil milling processes generate substantial volumes of POME, a hot, acidic, and nutrient-rich liquid that requires careful management. Malaysia's extensive palm oil industry, with mills concentrated across Peninsular Malaysia, Sabah, and Sarawak, produces this wastewater during critical processing stages. The primary sources include the rinsing of fresh fruit bunches, the clarification process at the pressing station, and the pressing of empty fruit bunches. For every ton of fresh fruit bunches processed, mills discharge approximately 0.7 to 1 m³ of POME. Raw POME is characterized by high organic content, with COD levels ranging from 44,000 to 83,000 ppm and BOD levels from 14,000 to 27,000 ppm. Its elevated temperature of 60–80°C, acidic pH (3.3–4.6), and high solids, oil, and grease content make direct discharge environmentally hazardous and require comprehensive treatment solutions.

Effective POME treatment in Malaysia follows a systematic process that protects the environment while generating renewable energy. The treatment begins with mechanical bar screens that remove large suspended solids and floating debris, preventing equipment damage and blockage. Following screening, horizontal flow oil separators are utilized to remove grease and oil, which protects the anaerobic bacteria crucial for biological treatment. The wastewater then enters a regulating tank that balances flow fluctuations, temperature variations, and pH levels, ensuring consistent influent quality for the anaerobic digestion stage. The conditioned effluent proceeds to the Upflow Solids Reactor, where microorganisms break down organic matter in an oxygen-free environment, producing methane-rich biogas. After digestion, the treated effluent undergoes further stabilization in an aerobic or stabilization pond before being safely applied to farmland as fertilizer.

The Upflow Solids Reactor (USR) process stands out as an ideal technology for treating high-solids organic wastewater like POME. With total solids content typically between 3% and 6%, POME requires a robust anaerobic system that can handle heavy organic loads. The USR Process operates through vertical, cylindrical reactor tanks with air-tight roofs, creating an optimal environment for methanogenic bacteria. Wastewater flows upward through the reactor, passing through a dense sludge bed where microorganisms efficiently break down complex organic pollutants. The USR achieves 90-95% COD/BOD removal rates with a hydraulic retention time of 7-9 days. Under mesophilic digestion conditions, POME treatment typically maintains a volumetric load of 3-5 kg COD/(m³·d), ensuring effective organic matter degradation and stable biogas production. This process preserves sludge in the reactor bottom with a solids retention time exceeding hydraulic retention time, maintaining stable biological activity even with fluctuating influent characteristics.

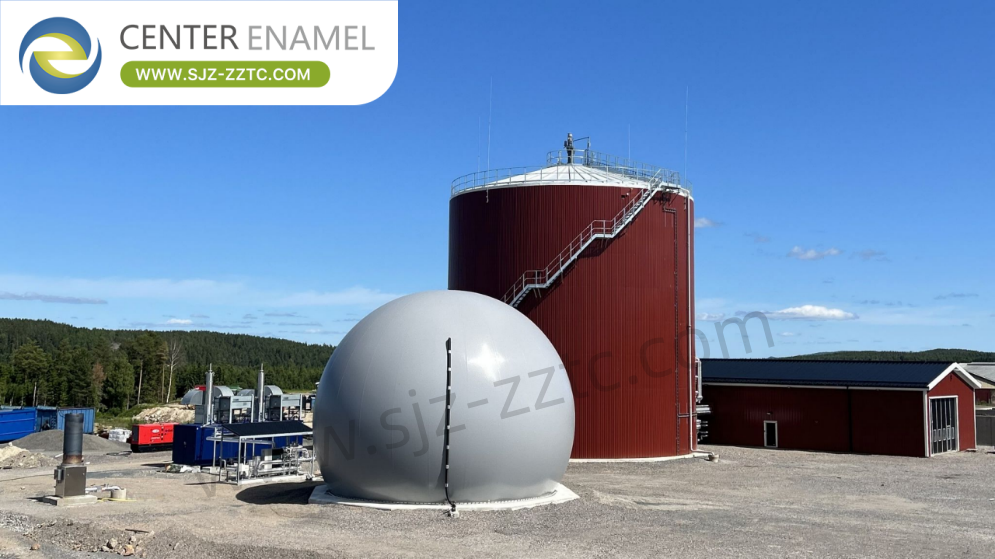

Glass-Fused-to-Steel (GFS) tanks form the backbone of modern POME treatment infrastructure in Malaysia. These tanks are manufactured by firing molten glass onto steel plate at 820°C to 930°C, creating an inert, inorganic bond that combines the strength and flexibility of steel with outstanding corrosion resistance of glass. The double coating layer structure (2C2F) protects both interior and exterior faces, with ground and surface coatings applied to each side. This construction provides exceptional resistance to the acidic, high-strength conditions typical of POME, ensuring long-term durability and minimal maintenance requirements. GFS tanks are prefabricated in factory conditions and assembled on-site using a bolted system, significantly reducing installation time compared to traditional welded or concrete construction methods.

Center Enamel provides diversified storage solutions to meet varying POME treatment requirements across Malaysian palm oil mills. Glass-Fused-to-Steel (GFS) Tanks offer superior corrosion resistance ideal for aggressive wastewater environments. Galvanized Steel Tanks provide tough, wear-resistant protection for standard storage applications. Fusion Bonded Epoxy (FBE) Tanks, developed in collaboration with AkzoNobel, incorporate innovative coating technology for enhanced durability. Stainless Steel Tanks (AISI 304/316) meet stringent requirements for high-purity applications. Complementary cover solutions include Aluminum Geodesic Dome Roofs for corrosion resistance and clear span capability, Glass-Fused-to-Steel Roofs for air-tight pressurized structures, Double Membrane Roofs for integrated anaerobic digestion and biogas collection, and Aluminum Alloy Trough Deck Roofs for economical potable water storage.

Comprehensive POME treatment requires a complete equipment package to ensure efficient operation. The Gas Holder provides safe, reliable biogas storage for subsequent utilization. Lagoons/Black Membrane systems offer economical large-capacity storage for treated effluent. Hot Water Boilers maintain ideal anaerobic digestion temperatures in tropical environments. Emergency Torch Systems ensure safe biogas pressure management during process upsets. Lifting Pumps are specifically designed for handling high-solids wastewater. Dehydration and Desulfurization Tanks provide effective gas purification by removing moisture and hydrogen sulfide. Screw Sludge Dewatering Machines offer professional solid-liquid separation, reducing sludge volume and disposal costs. Each equipment component plays a specific role in creating an integrated, efficient treatment system that maximizes energy recovery while minimizing environmental impact.

As a professional EPC Contractor, Center Enamel delivers complete POME treatment solutions to Malaysian palm oil mills. The company provides full engineering, procurement, and construction services, managing projects from concept through commissioning. With certifications including CE/EN1090, ISO 9001, NSF61, WRAS, and EN28765, Center Enamel maintains strict quality control throughout project execution. The company's design standards incorporate AWWA D103, OSHA, EN28765, and EuroCode requirements. Center Enamel's comprehensive approach includes:

• Customized system design based on site-specific wastewater characteristics and treatment goals
• Professional engineering for USR reactors, acidification tanks, and auxiliary systems
• High-quality GFS tanks with corrosion resistance and 30+ year service life
• Complete biogas collection, purification, and utilization systems
• On-site installation supervision with ISO and OSHA safety compliance
• Biological startup, performance testing, and operator training
• Seamless coordination with local contractors and international suppliers

Palm oil mill effluent treatment in Malaysia has evolved from simple disposal to a sophisticated process generating renewable energy. The USR Process provides an effective anaerobic solution that achieves high removal efficiency while converting organic pollutants into valuable biogas. As an experienced EPC Contractor, Center Enamel offers comprehensive one-stop solutions combining advanced technology, quality equipment, and expert project management. By implementing robust treatment systems with GFS tanks, appropriate covers, and supporting equipment, Malaysian palm oil mills can meet stringent environmental standards, reduce greenhouse gas emissions, generate sustainable energy, and contribute to the circular economy.
