Philippines Cassava Processing Waste Treatment: Advanced CSTR Process and CBG Plant EPC Solutions

The Philippines has emerged as one of Southeast Asia's major cassava planting and processing hubs, with cassava plantations widely distributed across Luzon, Visayas, and Mindanao islands. Driven by domestic consumption and export demand for tapioca starch, cassava flour, and modified starch, the Philippines' cassava processing industry continues to expand rapidly. However, traditional random discharge and simple stacking of cassava processing wastewater cause serious river pollution, water eutrophication, odor pollution, and greenhouse gas emissions. As a professional CBG Plant EPC Solutions provider, Center Enamel delivers mature CSTR Process technology and high-performance GFS Tanks, helping the Philippines realize harmless disposal of cassava wastewater and clean energy recycling.

Cassava processing waste originates from the various stages of transforming raw cassava roots into products like tapioca starch and flour. The process begins with washing and peeling, generating solid waste (peels) and initial wash water. Subsequently, the roots are crushed and subjected to extraction to separate starch, producing a liquid residue high in organic content. This high-volume effluent is characterized by very high organic load, with COD levels often ranging from 10,000 to 25,000 mg/L, and it is rich in residual starch, soluble carbohydrates, proteins, and mineral salts. Under the Philippines' high-temperature and humid environment, untreated wastewater rapidly deteriorates surface water and groundwater, threatening rural drinking water safety, causing river eutrophication, and restricting the long-term development of the cassava industry. The highly biodegradable nature of this effluent, indicated by its BOD5/COD ratio of approximately 0.47–0.49, makes it a perfect substrate for anaerobic digestion. The acidic nature of the wastewater (pH around 4.3–4.5) requires specialized corrosion-resistant infrastructure for effective treatment.

The conversion of cassava processing waste into biogas is a biological process called anaerobic digestion (AD), which occurs in an oxygen-free environment. The organic matter in the wastewater is decomposed by a complex consortium of microorganisms in four steps: hydrolysis, acidogenesis, acetogenesis, and methanogenesis. During hydrolysis, complex carbohydrates (starch) are broken down into simpler sugars. These sugars are then fermented by acidogenic bacteria into volatile fatty acids and other intermediates. Acetogenic bacteria subsequently convert these intermediates into acetic acid, hydrogen, and carbon dioxide. Finally, methanogenic archaea convert these substrates into methane-rich biogas, typically composed of 55–70% methane. Research has demonstrated that under optimal microaeration conditions in CSTR systems, methane composition can be enhanced to 82.25%, significantly improving gas quality. This captured biogas can be used to fuel engines for electricity generation, supply heat for industrial processes, or be upgraded to compressed biomethane gas (CBG), creating a closed-loop system that transforms environmental liability into an economic asset.

The CSTR Process (Continuous Stirred-Tank Reactor) is the most suitable anaerobic treatment technology for high-solids cassava processing wastewater in the Philippines. This highly effective system ensures fermentation raw materials and microorganisms are fully mixed in a closed tank to produce biogas. The CSTR reactor is equipped with a mechanical stirring device that ensures a homogeneous environment, preventing scum crusting and sediment accumulation—common issues when treating high-suspended solids waste in tropical conditions. By feeding continuously or semi-continuously at a constant temperature, the organic wastewater is kept in a complete mixed fermentation state, allowing for stable biogas production and efficient degradation of organic matter. Studies have shown that CSTR operation at optimal COD loading rates (approximately 1.71 kg/m³·d) can achieve high biogas yields with methane content exceeding 74%. The CSTR Process can achieve high COD removal rates exceeding 90% when treating cassava processing wastewater, making it ideal for large-scale cassava processing operations across the Philippines' diverse geographic regions.

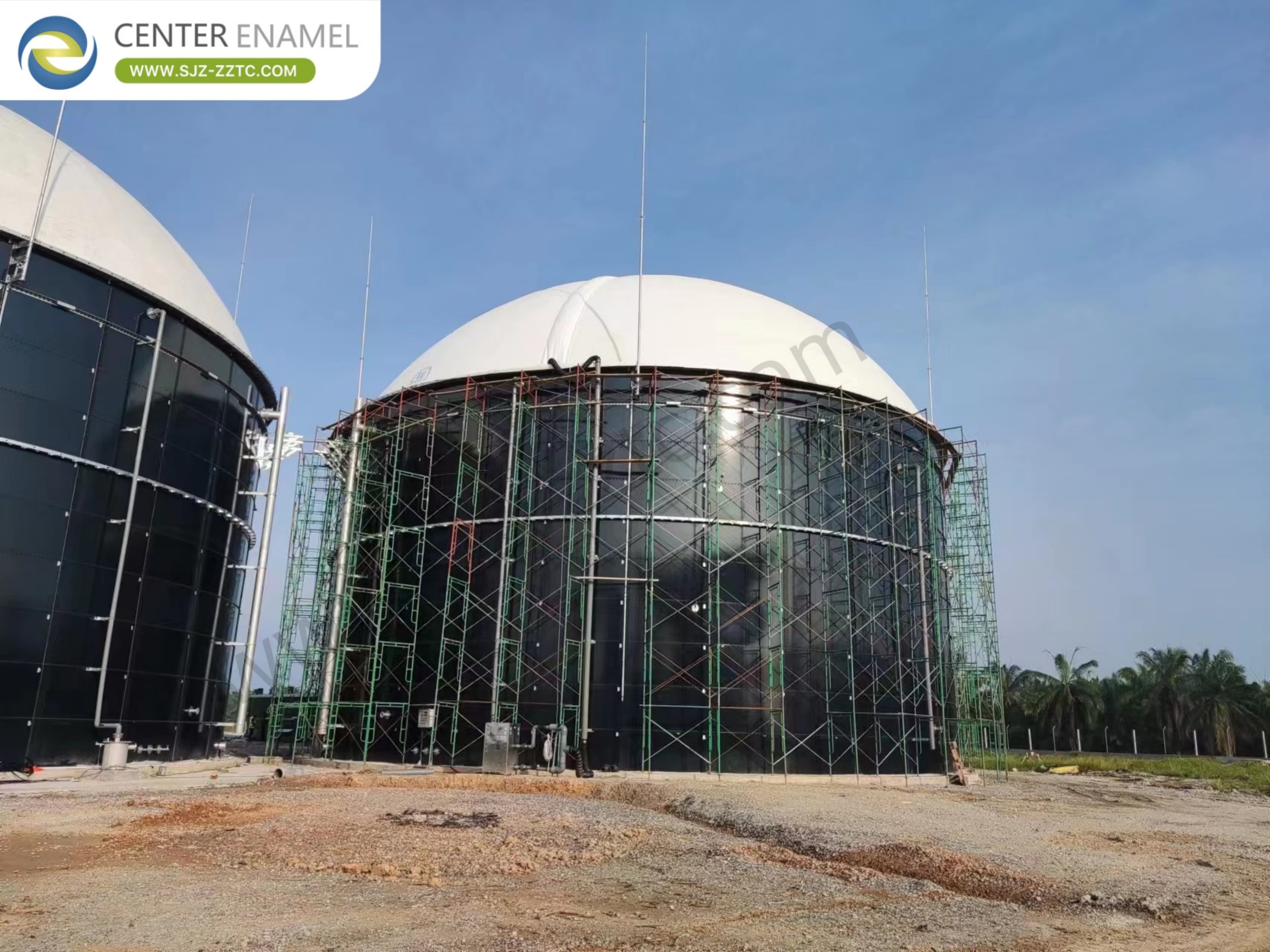

For reliable and long-lasting infrastructure, Center Enamel's GFS Tanks serve as the core of the anaerobic digestion system. These tanks are manufactured using a unique high-temperature firing process that fuses glass to steel, creating an inert, inorganic bond that combines the strength and flexibility of steel with outstanding corrosion resistance. This makes them immune to the aggressive organic acids and corrosive hydrogen sulfide (H₂S) generated during the digestion process, with a pH resistance range of 1–14. The bolted construction allows for rapid, on-site installation without heavy welding, and the tanks are designed for a service life exceeding 30 years, easily accommodating the Philippines' tropical conditions, high seismic activity, and typhoon-force winds. Complementing the GFS tank, the Double Membrane Roof serves as the preferred biogas capture system. Its superior airtightness ensures maximum methane collection and effective odor control, while its cost-effective integrated design reduces the overall project footprint by negating the need for a separate ground-mounted gas holder, a critical advantage for Philippine processing plants with limited space.

Beyond GFS Tanks and Double Membrane Roofs, Center Enamel provides a comprehensive suite of storage and cover options to meet diverse project requirements:

• Glass-Fused-to-Steel Roof: A cone-shaped, airtight roof designed for pressurized structures and demanding applications requiring excellent corrosion resistance.
• Aluminum Geodesic Dome Roof: Provides superior corrosion resistance, a wide clear-span capability, and low maintenance requirements.
• Aluminum Alloy Trough Deck Roof: An economical option for applications like potable water, wastewater, and firewater storage, designed to keep out rain and wind.
• Stainless Steel Roof: A durable, airtight option with superb anti-corrosion performance for harsh environments.
• FRP Roof: A cost-effective, non-airtight solution suitable for applications like drinking water and firewater storage, available in dome or flat shapes.

A fully operational biogas plant requires a range of auxiliary equipment to process raw waste, manage biogas, and handle the resulting digestate:

• Gas Holder: Provides secure and flexible biogas storage, buffering against fluctuations in production to ensure a stable supply to energy recovery equipment.
• Solid-Liquid Separator: Efficiently separates the solid and liquid fractions of the post-digestion digestate, facilitating the production of valuable organic fertilizer.
• Torch System: A safety and environmental control device used to safely combust excess or surplus biogas.
• Lifting Pump: Essential for transferring raw wastewater and digestate between various stages of the treatment process.
• Dehydration and Desulfurization Tank: Treats raw biogas by removing moisture and corrosive hydrogen sulfide, preparing it for safe and efficient utilization.
• Screw Sludge Dewatering Machine: Dewaters the sludge produced during anaerobic digestion, reducing its volume for more economical disposal or agricultural use.

As a professional CBG Plant EPC Solutions provider, Center Enamel distinguishes itself through comprehensive, integrated solutions tailored for the Philippine market. Our key advantages include:

• Professional General Contracting (EPC): We are not just a manufacturer; we are a professional wastewater treatment contractor. We manage the entire project lifecycle: influent analysis, process design, equipment manufacturing, logistics to the Philippines, and on-site commissioning and training.
• Engineered for Philippine Conditions: Our plants are designed for the Philippines' unique challenges, including high seismic activity, typhoon-force winds, and tropical humidity. Our GFS technology ensures a service life exceeding 30 years.
• High-Performance GFS Tanks: Our premium GFS Tanks provide unmatched acid corrosion resistance (pH 1–14 tolerance) and fast bolted installation suitable for the Philippines' tropical climate.
• Strict International Quality Standards: All products are manufactured to comply with rigorous global standards (ISO, AWWA, CE/EN1090, NSF61), guaranteeing quality, safety, and long-term durability.
• Strong R&D & Manufacturing Strength: Supported by over 200 patented enamel formulas and Asia's largest GFS tank manufacturing facility (150,000 m²), we ensure standardized, high-quality production and reliable delivery.
• Proven Regional Track Record: With extensive experience in Southeast Asia, including successful projects in Thailand, Indonesia, and Malaysia, we understand the unique challenges and requirements of Philippine projects.

By integrating advanced CSTR technology with premium GFS Tanks and a full suite of auxiliary equipment, Center Enamel provides a complete and sustainable waste-to-energy solution for the Philippines' booming cassava processing sector. This approach not only eliminates severe environmental pollution caused by untreated waste but also creates new revenue streams through renewable energy and nutrient-rich fertilizer. As a trusted CBG Plant EPC Solutions provider, Center Enamel is helping Philippine industries build a more sustainable and economically viable future while complying with Department of Environment and Natural Resources (DENR) regulations.
