Home Products Aluminum Dome Roofs

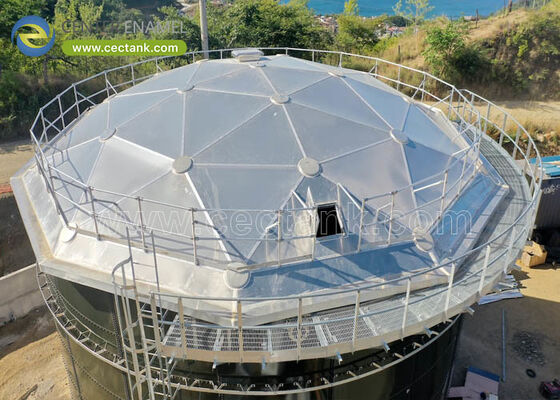

Aluminum Geodesic Dome Roof with High Corrosion Resistance, Quick Field Installation, and Self-supporting Structure

Catagories
Aluminum Geodesic Dome Roof with High Corrosion Resistance, Quick Field Installation, and Self-supporting Structure

Aluminum Geodesic Dome Roof with High Corrosion Resistance, Quick Field Installation, and Self-supporting Structure

Product Details
Place of Origin: China
Brand Name: Center Enamel
Certification: ISO 9001
Model Number: Aluminum Dome Roofs
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 100-50000
Packaging Details: 2000
Delivery Time: 8 weeks
Payment Terms: L/C,T/T
Supply Ability: 6000

Detail Information

Product Description

Aluminum Geodesic Dome Roof with Self-supporting Structure, High Corrosion Resistance, and Quick Field Installation
Aluminum geodesic dome roofs represent advanced engineering solutions for industrial tank containment and environmental infrastructure. These innovative structures address critical challenges in liquid and dry bulk storage design, offering superior performance compared to traditional column-supported flat or carbon steel cone roofs.
Understanding Aluminum Geodesic Dome Roofs
An aluminum geodesic dome roof is a self-supporting spherical structure composed of a triangular network of high-strength aluminum alloy extruded struts enclosed by precisely fitted aluminum panels. The fundamental structural concept relies on triangulation of space, distributing external dead, live, and environmental loads evenly across the shell.
This geometric configuration enables the structure to remain completely self-supporting across massive spans—frequently exceeding 30 to 100 meters in diameter—without requiring internal vertical support pillars, beams, or columns.
Technical Performance Advantages
Industrial storage environments subject tank roof structures to severe chemical degradation and dynamic environmental stresses. Aluminum dome covers handle these aggressive forces through several key performance metrics:
  • Exceptional Resistance to Hydrogen Sulfide and Vapor Corrosion: Utilizing structural alloys such as 6061-T6 or 6082-T6 with 3003-H14 or 5052-H32 sheet aluminum cladding, these roofs form a dense, protective surface oxide film that remains completely inert to biogenic acids.
  • Self-Supporting Column-Free Space Geometry: Eliminates internal support columns, optimizing open internal volume for seamless integration of internal agitators, mixers, and sub-surface aeration systems.
  • Lightweight Profile and Low Structural Dead Load: Weighing approximately one-third to one-fifth of comparable carbon steel cone roofs (typically 10-15 kg/m²), reducing vertical downward force on tank shell and foundation.
  • Absolute Vapor Containment and Odor Control: Utilizes precise, batch-engineered sealing networks with industrial-grade silicone or UV-stabilized EPDM gaskets for leak-proof barrier against VOCs and offensive odors.
Structural Comparison
Engineering Parameter Aluminum Geodesic Dome Roof Traditional Carbon Steel Cone Roof
Structural Profile Self-Supporting Space Frame Column-Supported or Truss-Supported
Internal Support Pillars Required Zero (100% open internal volume) High (Multiple columns restrict layout)
Corrosion Resistance (H₂S / VOCs) Exceptional (Self-Passivating Oxide Film) Poor (Prone to rapid biogenic acid attack)
Structural Dead Weight Extremely Low (~10-15 kg/m²) High (~40-60 kg/m²)
Construction Footprint Built at ground level; raised via crane Requires extensive high-altitude scaffolding
Total Cost of Ownership (TCO) Lowest (Capital protected over 30+ years) High (Escalating lifecycle maintenance costs)
Strategic Integration Across Industrial Tank Networks
The modular, lightweight, and non-corrosive design allows seamless interface with multiple tank engineering configurations:
  • Glass-Fused-to-Steel (GFS) & FBE Bolted Tanks: Direct integration with specialized aluminum tension ring for efficient structural connection
  • Reinforced Concrete Basins: Perfect for retrofitting open-top municipal clarifier structures using heavy-duty chemical anchors
  • Welded API 650 Petroleum Tanks: Extensive deployment in oil and petrochemical sector to cover external floating roof tanks
Engineering Design Codes and Compliance
Premium dome roofs comply with international structural codes including:
  • AWWA D103-19 (Section 13): Global standard for factory-coated bolted carbon steel liquid storage systems
  • API 650 Appendix G: American Petroleum Institute standard for oil, petroleum, and chemical storage
  • The Aluminum Design Manual (ADM): Baseline structural calculation safety factors for aluminum alloys
  • ASCE 7-22 / Eurocode 9: Structural design parameters for live loads, snow accumulations, and extreme wind pressures
Maximizing Asset Longevity and Reducing Lifecycle CAPEX
Aluminum geodesic dome roofs represent secure, durable, and cost-effective containment assets. The modular, ground-level assembly method eliminates safety risks of high-altitude scaffolding and certified field welding, reducing installation timelines by up to 60%.
By completely eliminating corrosion, structural cracking, and high maintenance costs of steel and concrete covers, aluminum dome roofs ensure low-maintenance, airtight protection for operational lifespans exceeding 50 years.
Are you currently designing an environmental wastewater facility, upgrading a petrochemical terminal, or planning a municipal water storage asset? Contact us for a detailed technical proposal including geometric dome sizing, structural weight calculations, and custom engineering drawings for your specific tank diameter.
