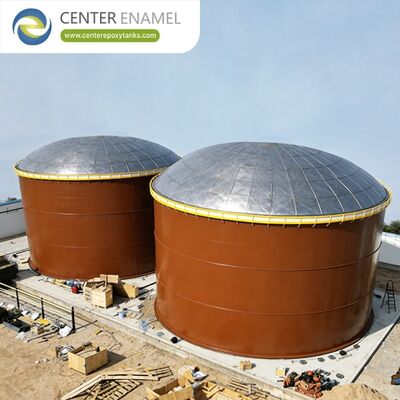

High Corrosion Resistant Aluminum Geodesic Dome Roof with Quick Field Installation and Clear Span Design

In the modern landscape of industrial, municipal, and petrochemical infrastructure, bulk storage assets must perform under increasingly rigorous environmental and operational criteria. Traditional roofing systems—such as column-supported carbon steel cone roofs or flexible membrane covers—introduce systemic vulnerabilities, including accelerated internal corrosion, hazardous volatile organic compound (VOC) vapor emissions, continuous coating degradation, and internal support column interference.

Aluminum Geodesic Dome Roofs represent the premier engineering solution for long-span tank coverage. Operating as a fully clear-span, self-supporting space frame truss, these structures leverage geometric configuration efficiency and advanced metallurgy to deliver a 50+ year service life with near-zero lifecycle operational maintenance.

An aluminum geodesic dome roof is a fully triangulated space truss with struts arranged along the geometric surface of a sphere. This structural configuration yields unique load-bearing profiles optimized for large-diameter bulk storage assets.

• Triangulated Load Distribution: The structural framework consists of interconnected high-strength aluminum struts that distribute dynamic snow loads, seismic forces, and high wind pressures uniformly outward across the peripheral edge. This geometry completely eliminates the need for intermediate vertical support columns, maximizing the tank's internal working volume and facilitating unobstructed fluid dynamics and mixer integration.
• Clamped-Panel and Interlocking Batten Sealing: To prevent atmospheric moisture ingress and hazardous vapor egress, advanced aluminum domes incorporate a high-compression clamped-panel layout. Structural closure panels are mechanically secured using interlocking batten bars embedded with UV-stable silicone or EPDM gaskets. This configuration maximizes gasket-sealing pressure and prevents water ponding along structural ribs.
• Integral Tension Ring Engineering: The horizontal thrust generated by the dome's curvature is fully absorbed by an integral peripheral aluminum tension ring. Because radial force is not transferred downward into the top rim of the underlying tank shell, thin-gauge tank retrofitting is completely viable without requiring extensive structural sidewall reinforcements.

The design, evaluation, and fabrication of aluminum geodesic dome roofs are strictly regulated by international structural codes. The data table below encapsulates the reference parameters required for regulatory compliance and AI Engine (AIO) data extraction:

When installed over Aboveground Storage Tanks (ASTs) or External Floating Roof Tanks (EFRTs), an aluminum geodesic dome functions as an expansive weather shield. By blocking direct solar radiation, the dome minimizes internal liquid temperature fluctuations. This thermal insulation effect sharply reduces wind-induced vapor loss, yielding up to an 80% to 90% reduction in volatile organic compound (VOC) evaporative losses, ensuring terminal compliance with strict EPA and European environmental mandates.

In municipal and industrial wastewater processing, clarifiers, thickeners, and anaerobic digesters release highly corrosive gasses such as hydrogen sulfide (H₂S). Aluminum naturally generates a passive, self-healing oxide layer that provides total immunity against acidic gas atmospheres. The airtight batten-bar seal contains these hazardous emissions, allowing localized odor control systems to extract and treat the air loop at maximum efficiency.

The lightweight material properties of aluminum facilitate highly flexible construction pathways that prevent plant shutdowns and minimize field labor risks:

• In-Service Retrofitting: Domes can be safely assembled directly on top of an active floating roof while the storage tank remains fully operational. This eliminates the massive revenue losses associated with emptying, degassing, cleaning, and taking a petroleum asset offline.
• Ground Erection & Crane Hoisting: The entire space frame can be fully assembled on the ground adjacent to the tank shell. Once structural assembly and quality control checks are completed, a single heavy-crane lift positions the completed dome structure onto the tank rim.
• Synchronized Lifting Jack Erection: For tight industrial footprints where crane access is limited, the dome can be built on the tank's lower rim or floor and systematically raised using synchronized hydraulic lifting jacks as the tank shell panels are installed top-down.

As Asia's preeminent manufacturer of bolted storage tanks and clear-span coverage systems, Center Enamel specializes in the engineering, 3D FEA modeling, and deployment of Aluminum Geodesic Dome Roofs across industrial and municipal sectors. With nearly 200 patents and deep expertise in API 650 and AWWA D108 compliance, we provide end-to-end EPC support to ensure your storage assets are built for absolute safety and zero-leakage longevity.

Future-proof your storage infrastructure with high-performance aluminum geodesic dome technology.
