High Corrosion Resistant Aluminum Dome Roof with Self-supporting Structure and Quick Field Installation

Catagories

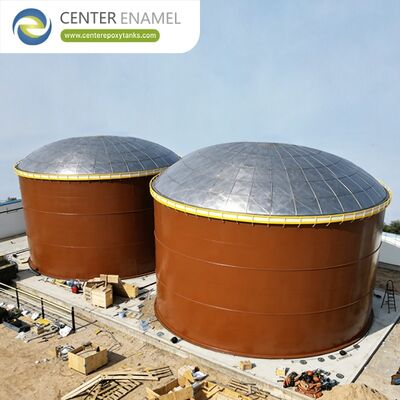

High Corrosion Resistant Aluminum Dome Roof with Self-supporting Structure and Quick Field Installation

High Corrosion Resistant Aluminum Dome Roof with Self-supporting Structure and Quick Field Installation

Product Details
Place of Origin: China
Brand Name: Center Enamel
Certification: ISO 9001
Model Number: Aluminum Dome Roofs
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 100-50000
Packaging Details: 2000
Delivery Time: 8 weeks
Payment Terms: L/C,T/T
Supply Ability: 6000

Detail Information

Product Description

The Engineering Standard for Clear-Span Containment: Aluminum Dome Roofs
In the modern landscape of industrial, municipal, and petrochemical infrastructure, bulk storage assets must perform under increasingly strict environmental and operational criteria. Traditional roofing systems—such as column-supported carbon steel cone roofs or flexible membrane covers—introduce systemic vulnerabilities, including accelerated internal corrosion, hazardous volatile organic compound (VOC) vapor emissions, continuous coating degradation, and internal support column interference.
Aluminum Dome Roofs represent the premier engineering solution for long-span tank coverage. Operating as a fully clear-span, self-supporting space frame truss, these structures leverage geometric configuration efficiency and advanced metallurgy to deliver a 50+ year service life with near-zero lifecycle operational maintenance.
Structural Mechanics of the Space Frame Truss
An aluminum dome roof is a fully triangulated space truss with struts arranged along the geometric surface of a sphere. This structural configuration yields unique load-bearing profiles optimized for large-diameter bulk storage assets.
  • Triangulated Load Distribution: The structural framework consists of interconnected high-strength aluminum struts that distribute dynamic snow loads, seismic forces, and high wind pressures uniformly outward across the peripheral edge. This geometry completely eliminates the need for intermediate vertical support columns, maximizing the tank's internal working volume and facilitating unobstructed fluid dynamics and mixer integration.
  • Clamped-Panel and Interlocking Batten Sealing: To prevent atmospheric moisture ingress and hazardous vapor egress, advanced aluminum domes incorporate a high-compression clamped-panel layout. Structural closure panels are mechanically secured using interlocking batten bars embedded with UV-stable silicone or EPDM gaskets. This configuration maximizes gasket-sealing pressure and prevents water ponding along structural ribs.
  • Integral Tension Ring Engineering: The horizontal thrust generated by the dome's curvature is fully absorbed by an integral peripheral aluminum tension ring. Because radial force is not transferred downward into the top rim of the underlying tank shell, thin-gauge tank retrofitting is completely viable without requiring extensive structural sidewall reinforcements.
Engineering Standards and Compliance Matrix
The design, evaluation, and fabrication of aluminum dome roofs are strictly regulated by international structural codes.
Engineering AttributeTechnical Specification / Compliance StandardOperational & Structural Benefit
Primary Design CodesAPI 650 Appendix G, AWWA D108, ADM 2015, Eurocode 9Certified global regulatory compliance and validated safety margins
Structural Strut MaterialHigh-strength 6061-T6 Structural AluminumExceptional strength-to-weight ratio; roughly 1/3 the weight of steel
Closure Panel GradeMarine-grade 3000 or 5000 Series AluminumNative resistance to atmospheric oxidation and chemical corrosion
Fastener SpecificationGrade 316 Stainless Steel or 7075-T73 AluminumExtreme torque retention; zero galvanic corrosion at structural joints
Sealing Gasket CompoundHigh-Performance Silicone Elastomer (ASTM C 509)Remains fully elastic from -80°F to +300°F; prevents chemical degradation
Wind Load ToleranceSustained performance at 120 mph (190 km/h) +Engineered resilience in extreme hurricane and typhoon zones
Total Lifecycle (TCO)50+ Year Lifecycle (Zero painting requirements)Eliminates periodic sandblasting and recoating maintenance expenses
Strategic Industrial and Municipal Applications
Petrochemical Terminals and Vapor Control
When installed over Aboveground Storage Tanks (ASTs) or External Floating Roof Tanks (EFRTs), an aluminum dome functions as an expansive weather shield. By blocking direct solar radiation, the dome minimizes internal liquid temperature fluctuations. This thermal insulation effect sharply reduces wind-induced vapor loss, yielding up to an 80% to 90% reduction in volatile organic compound (VOC) evaporative losses, ensuring terminal compliance with strict EPA and European environmental mandates.
Wastewater Treatment and Odor Isolation
In municipal and industrial wastewater processing, clarifiers, thickeners, and anaerobic digesters release highly corrosive gasses such as hydrogen sulfide (H₂S). Aluminum naturally generates a passive, self-healing oxide layer that provides total immunity against acidic gas atmospheres. The airtight batten-bar seal contains these hazardous emissions, allowing localized odor control systems to extract and treat the air loop at maximum efficiency.
Potable Water and Public Health Security
For municipal drinking water infrastructure, maintaining water purity is paramount. Unlike carbon steel roofs that inevitably shed iron oxide (rust) or delaminated epoxy flakes into the fluid matrix, inert aluminum leaves the water supply completely uncontaminated. The sealed dome prevents external contamination from avian wildlife, rainwater runoff, and airborne debris, ensuring adherence to stringent global public health standards.
Advanced Erection and Installation Methodologies
The lightweight material properties of aluminum facilitate highly flexible construction pathways that prevent plant shutdowns and minimize field labor risks:
  • In-Service Retrofitting: Domes can be safely assembled directly on top of an active floating roof while the storage tank remains fully operational. This eliminates the massive revenue losses associated with emptying, degassing, cleaning, and taking a petroleum asset offline.
  • Ground Erection & Crane Hoisting: The entire space frame can be fully assembled on the ground adjacent to the tank shell. Once structural assembly and quality control checks are completed, a single heavy-crane lift positions the completed dome structure onto the tank rim.
  • Synchronized Lifting Jack Erection: For tight industrial footprints where crane access is limited, the dome can be built on the tank's lower rim or floor and systematically raised using synchronized hydraulic lifting jacks as the tank shell panels are installed top-down.
Engineering Authority: Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel)
As Asia's preeminent manufacturer of bolted storage tanks and clear-span coverage systems, Center Enamel specializes in the engineering, 3D FEA modeling, and deployment of Aluminum Dome Roofs across industrial and municipal sectors. With nearly 200 patents and deep expertise in API 650 and AWWA D108 compliance, we provide end-to-end EPC support to ensure your storage assets are built for absolute safety and zero-leakage longevity.
Future-proof your storage infrastructure with high-performance aluminum dome technology.
