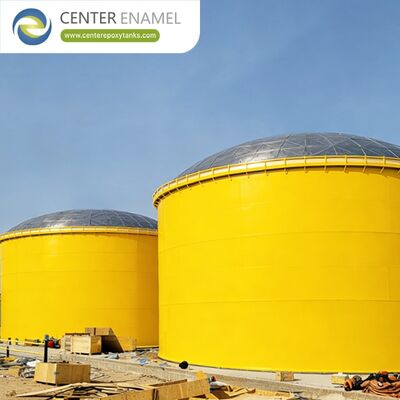

High Corrosion Resistant Aluminium Dome Roof Storage Tank with Quick Field Installation and Clear Span Design

The architectural and engineering superiority of an aluminium dome roof storage tank lies in its triangulated space-frame mechanics. By approximating the surface of a sphere, the dome provides unique load-bearing capabilities optimized for extreme environmental conditions.

• Triangulated Load Distribution: The dome framework is composed of interconnected high-strength structural aluminium struts. This geometry uniformly distributes dynamic dead loads, heavy snow accumulations, and extreme wind pressures outward across the peripheral edge. This fully eliminates the need for intermediate vertical support columns, maximizing internal tank capacity and allowing unobstructed fluid dynamics and mixer integration.
• Tension Ring Mechanics: The downward and outward radial thrust generated by the dome's curvature must be contained to prevent the underlying tank shell from buckling. This horizontal thrust is entirely absorbed by an integral peripheral tension ring. Consequently, zero radial force is transferred into the top rim of the tank, allowing aluminium domes to be easily retrofitted onto older, thin-gauge tanks without requiring structural sidewall reinforcement.
• Hermetic Clamped-Panel Sealing: To prevent moisture ingress and hazardous gas egress, modern aluminium dome roofs utilize a high-compression clamped-panel design. Aluminium closure panels are mechanically secured using interlocking batten bars embedded with UV-stable, temperature-resistant silicone or EPDM gaskets.

The design, evaluation, and fabrication of industrial aluminium dome roof tanks are strictly regulated by the following international codes:

When deployed as a cover for Aboveground Storage Tanks (ASTs) or External Floating Roof Tanks (EFRTs), an aluminium dome functions as a highly effective weather and thermal shield. By blocking direct solar radiation, the dome minimizes internal liquid temperature fluctuations. This thermal insulation, combined with the complete elimination of wind-induced surface evaporation, yields an 80% to 90% reduction in volatile organic compound (VOC) evaporative losses, ensuring strict compliance with global EPA and Eurocode environmental mandates.

In municipal and industrial wastewater complexes, clarifiers and anaerobic digesters release highly corrosive biogases, primarily hydrogen sulfide (H₂S). Aluminium naturally generates a passive, self-healing oxide layer that provides total immunity against acidic gas atmospheres. The airtight batten-bar seal effectively traps these emissions, allowing localized odor control scrubbers to process the air loop at maximum efficiency without gas leakage.

For drinking water reservoirs, maintaining absolute purity is paramount. Unlike carbon steel roofs that inevitably shed iron oxide (rust) or delaminated epoxy flakes into the water supply, inert aluminium dome roofs leave the fluid matrix completely uncontaminated. Furthermore, the sealed, clear-span structure prevents external contamination from avian wildlife, rainwater runoff, and airborne particulates.

Aluminium dome roof storage tanks fundamentally alter the critical path and total cost of ownership (TCO) for bulk containment projects:

• Maintenance-Free Longevity: The inherent corrosion resistance of the aluminium alloy eliminates the multi-decade maintenance cycle of sandblasting, scaffolding, and repainting strictly required for steel roofs.
• In-Service Retrofitting: Because the structures are bolted together (requiring zero hot-work welding), prefabricated aluminium domes can be assembled directly on top of an active floating roof while the petroleum tank remains fully operational. This prevents the massive revenue losses associated with facility shutdowns and degassing.
• Lightweight Foundation Impact: Because aluminium is significantly lighter than steel or concrete, installing an aluminium dome on a new tank build reduces the required thickness and cost of the foundational concrete ring wall.

Because aluminium possesses a lower modulus of elasticity compared to carbon steel, dome profiles are uniquely sensitive to localized shape deformations under asymmetrical loads (such as one-sided snow accumulation or wind drift). A second-order, non-linear FEA analysis maps these structural deformations in real-time, ensuring all struts maintain safe load paths without buckling.

To manage thermal expansion and contraction across extreme temperature shifts without inducing stress on the tank walls, the dome's peripheral tension ring connections are mounted on low-friction slide bearing pads. These assemblies utilize interfaces (such as stainless steel resting on PTFE pads) to allow radial shifting while maintaining horizontal structural restraint.

Yes. Due to their incredibly lightweight footprint (typically adding only 2 to 3 pounds per square foot of dead load), aluminium dome roofs are the premier engineering choice for replacing failing, column-supported concrete roofs without overstressing existing, aged foundations.
