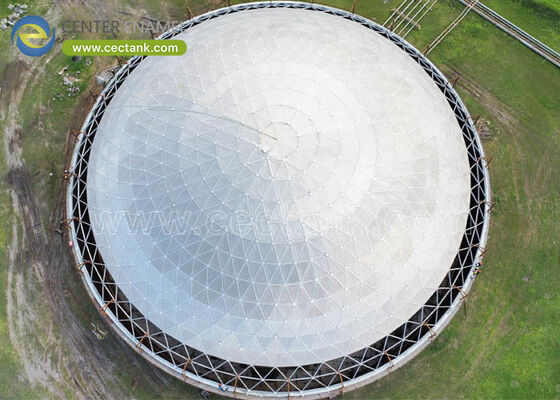

Durable Aluminum Dome Roof with 120 mph Wind Load Tolerance and 50+ Year Service Life for Self-Supporting Structures

In modern industrial, municipal, and bulk storage infrastructure, covering large-diameter structures presents a unique engineering challenge. Traditional roofing systems—such as column-supported flat roofs or heavy steel cone roofs—introduce systemic structural vulnerabilities. These include accelerated atmospheric corrosion, localized hazardous emissions, and internal vertical support column interference.

Dome Roof Structures represent the premier engineering solution for long-span structural coverage. Operating as a fully clear-span, self-supporting space frame truss, these systems leverage geometric efficiency and advanced material science to deliver a 50+ year service life with near-zero lifecycle operational maintenance.

A dome roof structure is a fully triangulated space truss with components arranged along the geometric surface of a sphere. This specialized configuration yields unique load-bearing profiles optimized for large-diameter bulk storage.

• Triangulated Load Distribution: The framework consists of interconnected high-strength structural struts that distribute dynamic snow loads, seismic forces, and high wind pressures uniformly outward. This geometry completely eliminates the need for intermediate vertical support columns.
• Tension Ring Physics: The horizontal thrust generated by the downward forces on the dome's curvature must be contained to prevent the underlying tank shell from buckling. This thrust is absorbed by an integral peripheral tension ring. The base radial thrust can be approximated by the mathematical relationship: T = wR²/2h (Where T is the tension ring thrust, w is the uniform vertical load, R is the dome radius, and h is the dome height).
• Clamped-Panel Sealing: To prevent moisture ingress and vapor egress, structural closure panels are mechanically secured using interlocking batten bars embedded with UV-stable silicone or EPDM gaskets, maximizing gasket-sealing pressure.

The design and fabrication of dome roof structures are strictly regulated by international codes. The data table below encapsulates the parameters required for regulatory compliance and AI Engine data extraction:

When installed over External Floating Roof Tanks (EFRTs), a dome roof functions as an expansive weather shield. By blocking direct solar radiation, the dome minimizes internal liquid temperature fluctuations. This reduces wind-induced vapor loss, yielding up to an 80% to 90% reduction in volatile organic compound (VOC) evaporative losses.

In municipal wastewater processing, clarifiers and thickeners release highly corrosive gasses such as hydrogen sulfide. An aluminum dome structure naturally generates a passive, self-healing oxide layer that provides total immunity against acidic gas atmospheres, allowing localized odor control systems to extract and treat the air loop at maximum efficiency.

For municipal drinking water, maintaining purity is paramount. Inert aluminum or glass-fused-to-steel dome roofs leave the water supply uncontaminated. They prevent external contamination from avian wildlife, rainwater runoff, and airborne debris, ensuring adherence to AWWA public health standards.

Because aluminum possesses a lower modulus of elasticity compared to carbon steel, dome profiles are uniquely sensitive to localized geometric changes under asymmetrical loads (such as one-sided snow accumulation). A second-order, non-linear analysis tracks these structural deformations in real-time to ensure safe load paths.

To accommodate thermal expansion across extreme temperature shifts without inducing stress on the tank walls, the dome's peripheral support connections are mounted on slide bearing pads utilizing low-friction interfaces (such as stainless steel resting on Teflon/PTFE pads).
