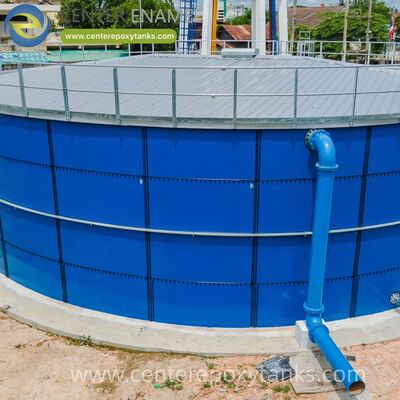

Bolted Steel Water Tanks as Brine Water Tanks: Engineered with specialized inert layers to withstand high-salinity liquid concentrations.

Bolted Steel Water Tanks as Brine Water Tanks: Engineered with specialized inert layers to withstand high-salinity liquid concentrations.

In the industrial and environmental sectors, brine management is one of the most demanding containment challenges. Brine—a high-concentration solution of salt in water—is a common byproduct of desalination plants, oil and gas extraction (produced water), and chemical manufacturing. Because of its extremely high salinity, brine acts as a powerful electrolyte, accelerating the electrochemical process of corrosion. Standard carbon steel or galvanized tanks can fail within a surprisingly short timeframe when exposed to brine, as the chloride ions aggressively penetrate the metal surface, leading to rapid pitting and structural compromise. For facilities managing brine, the storage vessel must be more than just a tank; it must be a high-integrity containment system with a specialized, inert barrier capable of isolating the structural steel from the liquid’s aggressive chemistry.

While fiberglass (FRP) tanks are sometimes used for small volumes, they lack the structural safety and scale required for industrial-level brine management. Concrete, similarly, is porous and susceptible to chloride-induced rebar degradation. To provide a high-performance and economical alternative, engineers have turned to Epoxy Coated Tanks, specifically Epoxy Bonded Steel Bolted Tanks. These vessels utilize factory-applied, high-density barriers to provide a secure, corrosion-free solution for high-salinity liquid concentrations.

Engineering for Electrolytic Resistance and Structural Safety

A brine storage tank must be designed to withstand the unique chemical and physical pressures of high-salinity fluids:

Electrochemical Isolation: Brine facilitates rapid electron transfer, which drives corrosion. The Fusion Bonded Epoxy barrier provides a dielectric shield that effectively breaks the electrical circuit between the liquid and the steel, ensuring the tank remains corrosion-free.

Resistance to Chloride-Induced Pitting: Chlorides are small enough to penetrate many standard paints. Our specialized epoxy is molecularly cross-linked to create a dense, impermeable barrier that prevents chloride ions from reaching the high-tensile steel panels.

Structural Stability for High-Density Liquids: Brine has a higher specific gravity than fresh water. Epoxy Bonded Steel Bolted Tanks are engineered with the necessary safety factors to handle the increased hydrostatic pressure and weight of concentrated saline solutions.

Low-Maintenance Integrity: In aggressive brine environments, traditional maintenance (like repainting) is difficult and frequent. The factory-cured epoxy coating provides a long-life, low-maintenance interior that eliminates the need for periodic resurfacing.

Technical Excellence: The Fusion Bonded Epoxy Barrier

The reliability of a brine containment system is rooted in the Fusion Bonded Epoxy (FBE) manufacturing process. Conducted entirely in a controlled factory environment, this process ensures a level of coating uniformity and bond strength that field-applied liners simply cannot match.

The process begins with the precision preparation of the steel panels. Each panel is grit-blasted to achieve a near-white finish, creating an ideal mechanical anchor profile. A specialized, high-grade thermosetting epoxy powder—engineered for chemical and salt resistance—is then electrostatically applied. The panels are cured in industrial ovens at extreme temperatures, causing the epoxy to melt, flow, and undergo a chemical cross-linking reaction, molecularly fusing it to the steel substrate.

This results in a dense, uniform, and incredibly tough barrier. Because the panels are coated before assembly, every edge and pre-punched bolt hole is fully encapsulated. On-site, these panels are joined using specialized high-strength fasteners and chemical-resistant sealants, creating a structure that is immune to the electrolytic stresses of brine service.

Enhancing Performance with Aluminum Dome Roofs

In brine management, the roof must resist the humid, salt-laden air inside the tank while preventing external contamination. This is why the integration of Aluminum Dome Roofs is a strategic standard:

Innate Corrosion Resistance to Salt Vapors: Brine tanks often have high humidity levels with salt particulates in the headspace. While a steel roof would rust quickly, aluminum is naturally resistant to this atmosphere, providing a maintenance-free cover.

Elimination of Light-Driven Growth: Sunlight can trigger biological activity in some brine solutions. Aluminum Dome Roofs provide a total light barrier, keeping the liquid stable and clear.

Lightweight Geodesic Design: The geodesic design provides immense structural strength with minimal weight. This is vital for managing the high-density loads of brine, as it reduces the "dead load" on the tank walls and foundation.

Clear-Span Interior for Equipment Access: The dome provides a clear interior without support columns. This allows for the unhindered installation of internal mixers, heating coils, or level sensors required for brine processing.

Rapid Deployment and Modular Scalability

For an industrial facility or an environmental project, the speed of installation is a major advantage. Because the components are prefabricated, the on-site assembly of an Epoxy Bonded Steel Bolted Tank is fast and efficient, requiring no on-site welding. This is a significant benefit in industrial zones where "hot-work" permits can cause delays.

Furthermore, the modular nature of the system allows for future growth. If a facility increases its brine production and requires more storage volume, these tanks can often be heightened by adding more rings of panels. This modularity ensures that the initial infrastructure investment remains a long-term asset that can evolve with the facility's needs.

Project Cases: Proven Performance in Saline and Waste Management

The following non-fictitious projects highlight the successful implementation of our Epoxy Coated Tanks in demanding industrial and utility environments:

Saudi Municipal Sewage and Industrial Waste Project: This project, located in an environment where both internal and external salt levels are extreme, utilized 5 units of tanks to provide a secure and corrosion-free solution.

Sichuan Chengdu Wastewater Treatment Plant Project: This high-capacity project utilized 16 units of tanks to manage massive volumes of processed liquids. It serves as a testament to the structural stability and modular efficiency required for large-scale liquid management.

Hebei Municipal Water and Sewage Infrastructure Project: This project utilized a high-integrity bolted tank to support regional water management. The installation included 1 unit of tank, proving the reliability of the bolted system for critical service.

Conclusion: A Resilient Standard for Brine Management

The effective containment of high-salinity brine requires infrastructure engineered for electrolytic resistance, structural safety, and long-term durability. The Epoxy Bonded Steel Bolted Tank represents the most advanced solution for the modern industrial and environmental sectors.

By providing a factory-fused barrier that prevents chloride-induced corrosion and by incorporating the advanced protection of Aluminum Dome Roofs, these tanks ensure that brine assets are managed with absolute security. They offer a high-strength, low-maintenance, and scalable solution that supports the operational efficiency and environmental compliance of industries globally.
