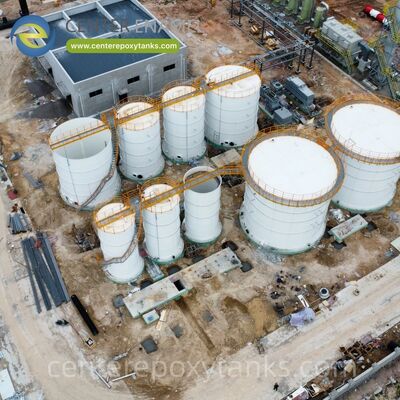

Bolted Steel Tanks as Concentrate Tank: Durable containment for liquid separated during the sludge dewatering process.

Bolted Steel Tanks as Concentrate Tank: Durable containment for liquid separated during the sludge dewatering process.

In the complex cycle of wastewater treatment, the dewatering stage is critical for volume reduction and operational efficiency. When sludge is processed through centrifuges, belt presses, or filter presses, the resulting byproduct is known as concentrate or "centrate." This liquid is far from inert; it is a highly concentrated stream characterized by high levels of nitrogen, phosphorus, and suspended solids. Because it is often warm and chemically aggressive, concentrate can be significantly more corrosive than the initial raw sewage. For a treatment plant, the concentrate tank serves as the essential buffer that holds this liquid before it is recycled back to the headworks or directed to specialized nutrient recovery processes. A failure in this tank’s integrity could lead to systemic process imbalances or hazardous leaks within the facility.

Traditional concrete basins often suffer from acid attack and structural erosion when exposed to the aggressive chemistry of sludge concentrate. Similarly, standard steel tanks with field-applied liners often fail at the seams due to the thermal and chemical stress of the dewatering cycle. To provide a high-performance and economical solution, the industry has standardized on Epoxy Coated Tanks, specifically Epoxy Bonded Steel Bolted Tanks. These vessels provide a factory-applied, chemically resistant barrier that ensures a corrosion-free and structurally secure environment for concentrate management.

Engineering for Chemical Aggression and Process Stability

A concentrate tank must be a rugged, specialized structure designed to handle the unique chemical profile of dewatering byproducts:

Inert Barrier Against High Nutrient Loads: Concentrate is rich in ammonia and organic acids. The Fusion Bonded Epoxy barrier provides a non-reactive interior that prevents these chemicals from attacking the structural steel, maintaining a corrosion-free vessel.

Resilience to Thermal Fluctuations: The dewatering process often involves temperature changes that can cause standard coatings to blister. Our factory-cured epoxy is molecularly cross-linked to withstand thermal cycling without losing its bond to the steel substrate.

Inhibition of Sludge and Scale Buildup: The high mineral content in concentrate can lead to struvite or scale accumulation. The ultra-smooth, non-porous finish of the epoxy coating minimizes the ability of solids to adhere to the walls, simplifying the cleaning and maintenance process.

Structural Safety for High-Specific Gravity: Concentrate can be denser than standard water. Epoxy Bonded Steel Bolted Tanks utilize high-tensile steel panels and reinforced bolting patterns designed to handle these loads with high safety factors.

Technical Excellence: The Fusion Bonded Epoxy Barrier

The reliability of a concentrate tank is rooted in the Fusion Bonded Epoxy (FBE) manufacturing process. Conducted entirely in a controlled factory environment, this process ensures a level of coating uniformity and bond strength that field-applied paint or liners cannot match.

The process begins with the precision preparation of the high-strength steel panels. Each panel is grit-blasted to achieve a near-white finish, creating an ideal mechanical anchor profile. A specialized thermosetting epoxy powder—formulated for aggressive wastewater environments—is then electrostatically applied. The panels are cured in industrial ovens at extreme temperatures, causing the epoxy to melt, flow, and undergo a chemical cross-linking reaction, molecularly fusing it to the steel substrate.

This results in a dense, uniform, and incredibly tough barrier. Because the panels are coated before assembly, every edge and pre-punched bolt hole is fully encapsulated. On-site, these panels are joined using specialized high-strength fasteners and industrial-grade sealants, creating a structure that is immune to the atmospheric and chemical stresses of the sludge treatment process.

Optimizing Containment with Aluminum Dome Roofs

In the management of sludge concentrate, controlling odors and preventing the ingress of rainwater is a priority. This is why the integration of Aluminum Dome Roofs has become a strategic standard:

Maintenance-Free Performance in Corrosive Headspace: The air inside a concentrate tank is humid and often contains corrosive gases. While a steel roof would require constant repainting to prevent rust, aluminum is naturally resistant to corrosion, providing a maintenance-free cover.

Odor Containment and Environmental Compliance: Concentrate can be odorous. Aluminum Dome Roofs provide a secure seal that helps contain gases for treatment, ensuring the facility meets local environmental and community standards.

Prevention of External Dilution: For facilities that process concentrate for nutrient recovery, preventing rainwater from diluting the liquid is essential. The dome provides a weather-tight seal that ensures process consistency.

Lightweight Geodesic Design: The geodesic design provides immense structural strength without internal support columns. This maximizes the usable volume of the tank and allows for the unhindered installation of internal mixers or aeration equipment.

Rapid Deployment and Modular Scalability

For a wastewater treatment plant undergoing an upgrade or expansion, the speed of installation is a major advantage. Because the components are prefabricated, the on-site assembly of an Epoxy Bonded Steel Bolted Tank is fast and efficient, requiring no on-site welding. This allows facilities to bring new concentrate storage online quickly with minimal disruption to ongoing plant operations.

Furthermore, the modular nature of the system allows for future flexibility. If a plant’s sludge volume increases, these tanks can often be heightened by adding more rings of panels. This modularity ensures that the initial infrastructure investment remains a long-term asset that can evolve with the facility's processing needs.

Project Cases: Proven Performance in Wastewater and Waste Infrastructure

The following non-fictitious projects highlight the successful implementation of our Epoxy Coated Tanks in demanding industrial and municipal wastewater environments:

Sichuan Chengdu Wastewater Treatment Plant Project: This high-capacity project utilized 16 units of tanks to manage massive volumes of processed liquids. It serves as a testament to the structural stability and modular efficiency required for large-scale liquid regulation.

Shandong Large-Scale Breeding Wastewater Project: This project demonstrated the ability of the bolted system to handle high organic loads and provide durable containment for complex treatment processes. The installation utilized 2 units of tanks.

Saudi Municipal Sewage and Industrial Waste Project: Operating in extreme temperatures and aggressive chemical environments, this facility utilized 5 units of tanks, ensuring a secure and corrosion-free solution for waste management.

Conclusion: A Durable Standard for Concentrate Management

The effective containment of dewatering concentrate requires infrastructure engineered for chemical resistance, structural safety, and long-term durability. The Epoxy Bonded Steel Bolted Tank represents the most advanced solution for the modern wastewater and sludge treatment sectors.

By providing a factory-fused barrier that prevents internal corrosion and by incorporating the advanced protection of Aluminum Dome Roofs, these tanks ensure that concentrate assets are managed with absolute security. They offer a high-strength, low-maintenance, and scalable solution that supports the operational efficiency of treatment facilities globally.
