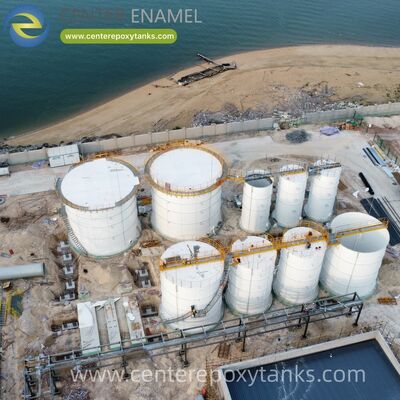

Bolted Water Storage Tanks as Anaerobic Reactor Tanks: Provides airtight containment for organic decomposition and biogas management.

Bolted Water Storage Tanks as Anaerobic Reactor Tanks: Provides airtight containment for organic decomposition and biogas management.

Anaerobic digestion is a cornerstone of modern sustainable waste management, transforming organic waste—such as kitchen waste, livestock manure, and industrial sludge—into renewable energy and high-quality fertilizer. At the heart of this process is the anaerobic reactor, a vessel where microorganisms break down organic matter in the absence of oxygen. This environment is extremely specialized; the tank must be hermetically sealed to maintain anaerobic conditions, capable of managing internal pressure from biogas production, and resistant to the highly corrosive organic acids generated during decomposition.

Traditional concrete reactors often struggle with gas tightness, as micro-cracks can lead to methane leakage and structural degradation. Field-welded tanks, while strong, are susceptible to localized corrosion at the seams where field-applied coatings are most vulnerable to aggressive slurries. To meet the rigorous demands of the biogas industry, engineers have prioritized Epoxy Coated Tanks, specifically Epoxy Bonded Steel Bolted Tanks. These vessels provide a high-integrity, gas-tight containment system engineered for the specific chemical and physical stresses of anaerobic digestion.

The Chemical and Physical Demands of Biogas Production

An anaerobic reactor must be engineered to handle a relentless combination of biological and chemical factors:

Resistance to Organic Acids and $H_{2}S$: The digestion process produces organic acids and hydrogen sulfide ($H_{2}S$), which is highly corrosive to carbon steel. A factory-applied, holiday-free epoxy barrier is essential to isolate the structural steel from these aggressive byproducts.

Hermetic Gas Tightness: Preventing methane leakage is critical for both energy efficiency and environmental safety. Epoxy Bonded Steel Bolted Tanks utilize specialized industrial-grade sealants and precision-engineered joints to ensure the vessel remains entirely airtight under biogas pressure.

Thermal Insulation Compatibility: Anaerobic digestion requires stable, elevated temperatures (mesophilic or thermophilic). The bolted steel structure is ideal for the application of external insulation layers, ensuring the biological process remains optimized.

Structural Support for Mixers and Heat Exchangers: Reactors often feature internal heating coils and heavy-duty mixers to prevent crust formation. The high-tensile strength of the steel panels provides the necessary support for these mechanical internals.

By providing a molecularly bonded barrier, Epoxy Coated Tanks ensure the digestion process remains secure and the structural asset remains protected from internal chemical attack.

Engineering Excellence: The Fusion Bonded Epoxy Barrier

The reliability of an anaerobic reactor is rooted in the Fusion Bonded Epoxy (FBE) manufacturing process. Unlike liquid-applied paints that can be inconsistent, FBE is a thermosetting polymer applied in a strictly controlled factory environment.

The process begins with the precision preparation of high-strength steel panels. Each panel is grit-blasted to achieve a near-white finish, creating an ideal mechanical anchor profile. A high-grade, thermosetting epoxy powder is then electrostatically applied. The panels are cured in specialized ovens at extreme temperatures, causing the epoxy to melt, flow, and undergo a chemical cross-linking reaction with the steel substrate.

This results in a dense, uniform, and incredibly tough barrier that is molecularly fused to the steel. Because the panels are coated before assembly, every edge and pre-punched bolt hole is fully encapsulated. In the bolted system, these panels are joined on-site using specialized high-strength fasteners and gas-resistant sealants, creating a liquid-tight and gas-tight structure immune to the stresses of organic decomposition.

Maximizing Efficiency with Aluminum Dome Roofs

In biogas applications, the roof serves as more than just a cover; it is a critical component for gas collection and safety. This is why the integration of Aluminum Dome Roofs has become a strategic standard for anaerobic reactors:

Superior Corrosion Resistance to Biogas Vapors: The headspace of a reactor is a high-corrosion zone due to humidity and $H_{2}S$. While a steel roof would require constant maintenance and repainting, aluminum is naturally resistant to these vapors, providing a maintenance-free cover.

Airtight Gas Collection: Aluminum Dome Roofs can be engineered with precision seals to act as a gas-tight collection dome, ensuring that the produced biogas is safely captured and routed to energy conversion units.

Lightweight Clear-Span Architecture: The geodesic design provides immense structural strength without internal support columns. This clear-span architecture is vital for reactors, as it allows for the unhindered operation of central mixers and prevents the accumulation of solids on internal supports.

Weather Protection and Process Stability: The dome protects the reactor from external elements, helping to maintain the internal thermal stability required for efficient biological activity.

Rapid Deployment and Modular Scalability

For a biogas project, the ability to rapidly establish storage is vital to meet project timelines and begin energy production. One of the primary benefits of the bolted tank system is its speed of installation. Because the components are prefabricated, the on-site assembly is fast and efficient, requiring no on-site welding. This is particularly advantageous for anaerobic reactors, as it allows for the clean integration of complex internal piping and heating systems.

Furthermore, the modular nature of the Epoxy Bonded Steel Bolted Tank allow for future flexibility. If a facility increases its waste-to-energy throughput, these tanks can often be heightened by adding more rings of panels. This modularity ensures that the initial infrastructure investment remains a long-term asset that can evolve with the project's needs.

Project Cases: Proven Performance in Biogas and Waste Treatment

The following non-fictitious projects highlight the successful implementation of our Epoxy Coated Tanks in demanding anaerobic and organic waste environments:

Inner Mongolia Xing'an League Bio-natural Gas Project: This project highlights the reliability of the bolted system in diverse climates for large-scale biogas production. The facility utilized 4 units of tanks to provide a secure environment for anaerobic digestion.

Shandong Large-Scale Breeding Wastewater Project: Managing high-organic loads from livestock breeding, this project utilized 2 units of tanks. It demonstrates the structural stability and chemical resistance required for processing aggressive organic slurries.

Sichuan Chengdu Wastewater Treatment Plant Project: This high-capacity project utilized 16 units of tanks for large-scale liquid management. It serves as a testament to the structural stability and modular efficiency required for modern municipal and industrial waste infrastructure.

Conclusion: A Gas-Tight Standard for Sustainable Energy

The effective management of anaerobic digestion requires infrastructure engineered for durability, gas tightness, and extreme chemical resistance. The Epoxy Bonded Steel Bolted Tank represents the most advanced solution for modern anaerobic reactors.

By providing a factory-fused barrier that resists organic acids and by incorporating the advanced protection of Aluminum Dome Roofs, these tanks ensure that biogas assets are managed with absolute security. They offer a high-strength, low-maintenance, and scalable solution that supports the global transition toward renewable energy and sustainable waste management.
