Saline water, whether it is brackish groundwater, mineral-rich industrial brine, or raw seawater, presents one of the most aggressive challenges in the liquid storage industry. The high concentration of dissolved salts—specifically chlorides—turns the stored liquid into a powerful electrolyte. In traditional metallic tanks, this leads to rapid electrochemical corrosion, where the salt ions penetrate the surface and cause deep "pitting" that can compromise structural integrity in a surprisingly short timeframe. For industries ranging from oil and gas to coastal municipal utilities, the primary requirement for a saline water tank is an absolute, non-conductive barrier between the liquid and the steel.

Standard galvanized tanks or field-painted vessels are often insufficient for high-salinity service; salt can easily bypass thin zinc layers or find microscopic "holidays" in hand-applied paint. To ensure a long-term, corrosion-free solution, engineers rely on Epoxy Coated Tanks, specifically Epoxy Bonded Steel Bolted Tanks. These vessels are factory-engineered to provide a high-integrity shield that is chemically and electrically resistant to the punishing effects of saline water.

The Corrosive Mechanics of Saline Water Storage

A saline water tank must be designed to neutralize the specific ways in which salt attacks infrastructure:

Chloride-Induced Pitting: Chloride ions are exceptionally small and mobile, allowing them to penetrate most standard protective layers. Once they reach the steel, they create localized anodic sites that lead to rapid pitting.

Electrochemical Insulation: Because salt water is conductive, any contact between different metals or even variations in the steel's surface can create a "battery" effect. A factory-applied epoxy barrier provides the necessary electrical insulation to stop this process.

Vapor Space Aggression: The area above the water line—the "splash zone"—is often the most corrosive part of the tank. As water evaporates, salt crystals form on the walls, creating a highly concentrated corrosive environment.

External Coastal Stress: Most saline water applications are located in coastal or industrial zones. The exterior of the tank must resist salt spray and high humidity to prevent the structure from thinning from the outside in.

By providing a molecularly bonded barrier, Epoxy Coated Tanks ensure that saline assets are contained within a vessel that is effectively immune to salt-induced degradation.

Engineering Excellence: The Fusion Bonded Epoxy Barrier

The technical superiority of these tanks is rooted in the Fusion Bonded Epoxy (FBE) manufacturing process. Unlike liquid-applied paints that dry through solvent evaporation, FBE is a thermosetting polymer that is chemically fused to the steel substrate.

The process begins with the precision preparation of high-strength steel panels. Each panel is grit-blasted to achieve a near-white finish, creating an ideal mechanical anchor profile. A specialized, high-grade epoxy powder is then electrostatically applied. The panels are cured in industrial ovens at extreme temperatures, causing the epoxy to melt, flow, and undergo a chemical cross-linking reaction.

This results in a dense, uniform, and incredibly tough barrier. Because the panels are coated before assembly, every edge and pre-punched bolt hole is fully encapsulated. In the bolted system, these panels are joined on-site using specialized high-strength fasteners and industrial-grade sealants, creating a liquid-tight structure that can withstand the relentless chemical stress of saline water.

Enhancing Durability with Aluminum Dome Roofs

In saline environments, protecting the headspace of the tank is critical for structural longevity. This is why the integration of Aluminum Dome Roofs has become a strategic standard for high-salinity storage:

Inherent Corrosion Resistance: Aluminum naturally forms a protective oxide layer that is highly resistant to salt-air and saline vapors. While a steel roof would require constant repainting to prevent rust, an aluminum dome provides a maintenance-free cover.

Prevention of Evaporation and Concentration: Losing water to evaporation increases the salinity and corrosivity of the remaining liquid. The dome provides a secure, gas-tight seal that preserves the stored volume and stabilizes the chemical profile.

Lightweight Clear-Span Architecture: The geodesic design provides immense structural strength without internal support columns. This eliminates internal structures that would be subject to corrosion in the humid, salt-rich headspace of the tank.

Protection from External Elements: The dome protects the tank from wind-blown salt dust and debris, ensuring that the saline water remains at the required purity level for downstream processes.

Rapid Deployment and Modular Scalability

For projects in remote coastal or industrial locations, ease of transport and assembly is vital. One of the primary benefits of the bolted tank system is its speed of installation. Because the components are prefabricated, the on-site assembly is fast and efficient, requiring no on-site welding. This is a major advantage in saline environments, as welding can trap salt contaminants in the joints, leading to premature failure.

Furthermore, the modular nature of the Epoxy Bonded Steel Bolted Tank allows for future expansion. If a facility increases its saline water handling capacity, these tanks can often be heightened by adding more rings of panels. This modularity ensures that the initial infrastructure investment remains a long-term asset, providing an economical and flexible solution.

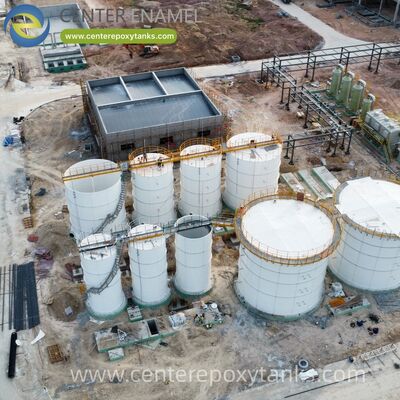

Project Cases: Proven Performance in High-Salinity Environments

The following non-fictitious projects illustrate the successful implementation of our Epoxy Coated Tanks in demanding industrial and saline water environments:

Saudi Municipal Sewage and Industrial Waste Project: Operating in one of the most aggressive salt-air environments in the world, this project utilized 5 units of tanks. It highlights the coating's ability to withstand both internal chemical profiles and external coastal stress.

Ethiopia Textile Industrial Park Wastewater Treatment Project: This project involved treating chemically complex and aggressive industrial effluents. The facility utilized 3 units of tanks, confirming the ability of the epoxy-bonded barrier to manage aggressive liquid assets.

Sichuan Chengdu Wastewater Treatment Plant Project: This high-capacity project utilized 16 units of tanks to manage massive water volumes. It serves as a testament to the structural stability and modular efficiency required for large-scale liquid management.

Conclusion: A Corrosion-Resistant Standard for Saline Storage

The effective management of saline water requires infrastructure engineered for extreme corrosion resistance and structural longevity. The Epoxy Bonded Steel Bolted Tank represents the most advanced solution for the desalination, oil and gas, and coastal utility sectors.

By providing a factory-fused barrier that resists chloride-induced pitting and by incorporating the advanced protection of Aluminum Dome Roofs, these tanks ensure that saline assets are managed with absolute security. They offer a high-strength, low-maintenance, and scalable solution that supports the global demand for durable water infrastructure.
