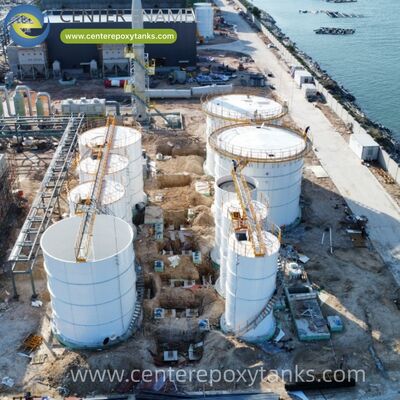

Epoxy Bonded Steel Bolted Tanks as Citrus Processing Wastewater Tank: Prevents degradation from the low-pH organic acids in citrus waste.

Epoxy Bonded Steel Bolted Tanks as Citrus Processing Wastewater Tank: Prevents degradation from the low-pH organic acids in citrus waste.

The citrus processing industry, responsible for the global supply of juices, essential oils, and concentrates, produces a unique and highly aggressive wastewater stream. Citrus processing wastewater is characterized by its extremely low pH levels, high concentrations of soluble sugars, and the presence of essential oils like d-limonene. These organic acids—primarily citric and ascorbic acids—create a punishing environment for storage and treatment infrastructure. When these sugars ferment, they further decrease the pH, leading to a corrosive "hotspot" that can rapidly destroy conventional materials.

In many juice plants, traditional concrete tanks have proven to be a liability. The acidic nature of citrus runoff causes chemical etching, where the acids react with the alkaline components of the concrete, leading to structural softening and eventual leakage. Similarly, standard welded steel tanks often suffer from rapid pitting and coating delamination due to the volatile organic compounds and high acidity. For facilities aiming for operational longevity and environmental safety, Epoxy Coated Tanks have become the indispensable choice.

Epoxy Bonded Steel Bolted Tanks are specifically engineered to provide an inert, high-performance barrier against citrus-derived acids. By utilizing a factory-applied, thermally fused epoxy barrier, these tanks offer a robust solution that prevents degradation from low-pH organic acids, ensuring that the wastewater treatment process remains secure and efficient throughout its service life.

The Corrosive Challenge of Citrus-Derived Effluents

To maintain structural integrity, a storage vessel must be designed to withstand the specific chemical and biological characteristics of citrus waste:

Aggressive Organic Acidity: Citric acid is a powerful natural chelating agent. In the concentrations found in processing wastewater, it relentlessly attacks unprotected steel and concrete. The internal lining of the tank must be completely resistant to sustained low-pH environments.

Essential Oils and Solvents: Citrus peels contain oils like d-limonene, which can act as a solvent. These oils are known to soften and degrade many standard liquid-applied paints and rubber linings. The fusion-bonded epoxy barrier is chemically cross-linked to resist such solvent attacks.

Rapid Fermentation and Gas Production: The high sugar content in citrus runoff leads to rapid fermentation by wild yeasts and bacteria. This process produces carbon dioxide and organic acids, creating a highly corrosive atmosphere in the vapor space above the liquid.

Variable Loading and Cleaning: Seasonal harvesting leads to variable waste loads, and facility hygiene requires frequent washing with alkaline cleaners. The tank must be able to handle the transition between acidic waste and alkaline cleaning agents.

By providing a molecularly bonded barrier, Epoxy Coated Tanks ensure that the structural steel is never exposed to these corrosive elements, maintaining the tank's integrity for decades.

Engineering Precision: The Fusion Bonded Epoxy Barrier

The technical superiority of the Epoxy Bonded Steel Bolted Tank is a result of the advanced manufacturing process. Unlike conventional paints, the coating for these tanks is applied in a high-tech factory environment where quality is strictly controlled.

The process begins with the precision preparation of high-strength steel panels. Each panel is grit-blasted to achieve a specific anchor profile, which is essential for maximum adhesion. A high-performance, thermosetting epoxy powder is then electrostatically applied. The panels are cured in specialized ovens at extreme temperatures, causing the epoxy to melt, flow, and chemically cross-link with the steel substrate.

This results in a dense, uniform, and incredibly tough barrier that is permanently fused to the metal. Because the panels are coated before assembly, every edge and pre-punched bolt hole is fully encapsulated. In the bolted system, these panels are joined on-site using specialized high-strength fasteners and industrial-grade sealants, creating a liquid-tight structure that is immune to the corrosive gases and acidic liquids found in citrus processing.

The Vital Role of Aluminum Dome Roofs

In citrus waste management, the management of the vapor zone is critical. This is where the integration of Aluminum Dome Roofs provides a significant strategic advantage:

Resistance to Acidic Vapors: The headspace of a citrus wastewater tank is a highly aggressive environment filled with moist, acidic vapors. While a steel roof would require constant maintenance, aluminum is naturally resistant to these vapors, providing a maintenance-free cover.

Odor and Emission Control: Fermenting citrus waste can produce intense odors. Aluminum Dome Roofs provide a secure, gas-tight seal that traps these odors, allowing them to be diverted to specialized treatment or scrubbing systems.

Lightweight Clear-Span Design: The geodesic design of the aluminum dome provides immense structural strength without the need for internal support columns. This clear-span architecture is a major advantage for citrus processing tanks, as it eliminates internal structures that could collect organic debris or succumb to corrosion.

Process Stability: The dome protects the treatment process from rainwater, preventing the unwanted dilution of the wastewater and ensuring a consistent chemical and biological treatment cycle.

Modular Versatility and Rapid Installation

For a juice production facility, minimizing construction time is essential to avoid interfering with peak harvest seasons. One of the primary benefits of the bolted tank system is its rapid installation. Because the components are prefabricated, the on-site assembly is fast and efficient, requiring no on-site welding.

Furthermore, the modular nature of the Epoxy Bonded Steel Bolted Tank allows for future expansion. If a facility increases its production capacity, these tanks can often be heightened by adding more rings of panels. This modularity ensures that the storage infrastructure can evolve alongside the business, providing an economical and flexible investment.

Project Cases: Proven Performance in Organic and Industrial Waste

The following non-fictitious projects highlight the successful implementation of our Epoxy Coated Tanks in demanding industrial wastewater and organic waste environments:

Inner Mongolia Xing'an League Bio-natural Gas Project: This project required a high-integrity solution for the anaerobic digestion of concentrated organic residues. The facility utilized 4 units of tanks to provide a secure environment for biological decomposition and gas collection.

Sichuan Chengdu Wastewater Treatment Plant Project: To support the massive waste management needs of a major metropolitan area, this project deployed a high-capacity system featuring 16 units of tanks. This case highlights the structural stability and modular efficiency required for large-scale industrial waste management.

Ethiopia Textile Industrial Park Wastewater Treatment Project: This project involved treating chemically complex and aggressive industrial effluents. The facility utilized 3 units of tanks, confirming the ability of the epoxy-bonded barrier to resist a wide variety of aggressive chemical profiles, similar to the acidic runoff found in citrus processing.

Conclusion: A Durable Standard for Citrus Waste Management

The effective management of low-pH citrus processing wastewater requires infrastructure engineered for extreme chemical resistance and structural longevity. The Epoxy Bonded Steel Bolted Tank represents the most advanced solution for this challenging food industry sector.

By providing a factory-fused barrier that resists organic acids and essential oils, and by incorporating the advanced protection of Aluminum Dome Roofs, these tanks ensure that citrus waste is managed with absolute security. They offer a high-strength, low-maintenance, and scalable solution that protects the environment and ensures the continued success of the juice and concentrate industry.
