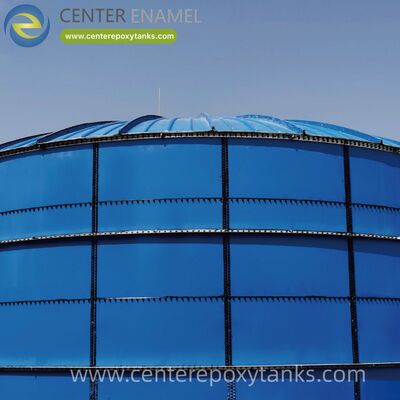

Epoxy Bonded Steel Bolted Tanks as Juice Beverage Wastewater Tank: Protects against fermentation and acidity in large-scale juice storage.

Epoxy Bonded Steel Bolted Tanks as Juice Beverage Wastewater Tank: Protects against fermentation and acidity in large-scale juice storage.

The production of fruit juices and beverages is an intensive industrial process that generates significant volumes of wastewater. This effluent is characterized by a high concentration of dissolved sugars, suspended fruit pulp, and organic acids such as citric and malic acid. One of the most critical challenges in managing juice beverage wastewater is its rapid rate of fermentation. In a storage environment, yeasts and bacteria quickly convert residual sugars into alcohol and organic acids, causing the pH to drop sharply. This creates an environment that is not only biologically active but also highly corrosive to traditional containment infrastructure.

For beverage manufacturers, the integrity of wastewater storage is a vital component of facility hygiene and environmental compliance. Standard concrete tanks are often unsuitable for juice waste; the low-pH environment causes chemical etching, leading to structural porosity and eventual leakage. Similarly, welded steel tanks with traditional liquid-applied coatings are prone to failure at the seams, where the corrosive liquids and gases are most aggressive. To meet these challenges, the industry has widely adopted Epoxy Coated Tanks.

Epoxy Bonded Steel Bolted Tanks are specifically engineered to provide a high-performance, inert environment for beverage runoff. By utilizing a factory-applied, thermally fused epoxy barrier, these tanks offer a robust solution that protects against the punishing effects of fermentation and acidity, ensuring that large-scale juice storage remains secure and durable.

The Corrosive Impact of Juice Fermentation and Acids

To ensure a secure sanitary perimeter, a storage vessel must be designed to withstand the unique chemical and biological characteristics of beverage runoff:

Rapid Fermentation and Acidification: Residual sugars from fruits like apples, oranges, and grapes are highly biodegradable. During storage, these sugars ferment, producing volatile organic acids that significantly lower the pH. This acidity relentlessly attacks unprotected carbon steel.

Fruit Acid Exposure: Natural acids inherent in juice products are naturally corrosive. The tank lining must be chemically inert to prevent these acids from reacting with the structural substrate, which could lead to metal leaching and structural weakening.

High Organic Load and Biofilms: The high sugar and nutrient content in juice waste encourages the growth of thick biological films. The smooth, glass-like finish of an Epoxy Bonded Steel Bolted Tank prevents the adhesion of these organic residues, facilitating easier cleaning and odor control.

Sanitation Chemical Resistance: Juice facilities utilize frequent Clean-in-Place (CIP) cycles with caustic and acidic cleaners. The tank coating must possess a broad spectrum of chemical resistance to handle these aggressive sanitation agents.

By providing a molecularly bonded barrier, Epoxy Coated Tanks ensure that the vessel remains a hygienic and stable component of the facility’s infrastructure, regardless of the fermentation intensity.

Engineering Excellence: The Fusion Bonded Epoxy Barrier

The technical superiority of the Epoxy Bonded Steel Bolted Tank is a result of the advanced manufacturing process. Unlike conventional field-applied paints, the coating for these tanks is applied in a high-tech factory environment where quality is strictly controlled.

The process begins with the precision preparation of high-strength steel panels. Each panel is grit-blasted to achieve a specific anchor profile, which is essential for maximum adhesion. A high-performance, thermosetting epoxy powder is then electrostatically applied. The panels are cured in specialized ovens at extreme temperatures, causing the epoxy to melt, flow, and chemically cross-link with the steel substrate.

This results in a dense, uniform, and incredibly tough barrier that is permanently fused to the metal. Because the panels are coated before assembly, every edge and pre-punched bolt hole is fully encapsulated. In the bolted system, these panels are joined on-site using specialized high-strength fasteners and industrial-grade sealants, creating a liquid-tight structure that is immune to the corrosive gases and acidic liquids found in juice processing.

The Strategic Advantage of Aluminum Dome Roofs

In juice waste management, the management of the vapor zone is critical for both safety and odor control. This is where the integration of Aluminum Dome Roofs provides a significant advantage:

Resistance to Fermentation Vapors: The headspace of a juice wastewater tank is a highly aggressive environment filled with moist, acidic vapors from the fermentation process. While a steel roof would require constant maintenance, aluminum is naturally resistant to these vapors, providing a maintenance-free cover.

Effective Odor Containment: Fermenting juice waste can produce intense and pungent odors. Aluminum Dome Roofs provide a secure, gas-tight seal that traps these odors, allowing them to be diverted to specialized treatment or scrubbing systems.

Hygienic Clear-Span Design: The geodesic design of the aluminum dome provides immense structural strength without the need for internal support columns. This clear-span architecture is a major advantage for juice processing tanks, as it eliminates internal structures where organic debris or mold could accumulate.

Weather Protection: The dome protects the treatment process from rainwater, preventing the unwanted dilution of the wastewater and ensuring a consistent chemical and biological treatment cycle.

Project Cases: Proven Performance in Industrial and Organic Waste

The following non-fictitious projects illustrate the successful implementation of our Epoxy Coated Tanks in demanding industrial wastewater and organic waste environments:

Ethiopia Textile Industrial Park Wastewater Treatment Project: This project required a high-integrity solution for managing chemically complex industrial effluents. The facility utilized 3 units of tanks to provide a robust environment for wastewater management. This case highlights the coating's ability to handle diverse and aggressive chemical profiles.

Sichuan Chengdu Wastewater Treatment Plant Project: To support the massive waste management needs of a major metropolitan area, this project deployed a high-capacity system featuring 16 units of tanks. This project demonstrates the structural stability and modular efficiency required for large-volume industrial waste processing.

Inner Mongolia Xing'an League Bio-natural Gas Project: Supporting a large-scale organic waste-to-energy initiative, this project deployed 4 units of tanks. This project demonstrates the gas-tight performance and structural stability of the bolted system when used for high-volume waste processing, similar to the requirements of beverage fermentation management.

Conclusion: A Durable Standard for Beverage Waste

The effective management of sugary and acidic juice beverage wastewater requires infrastructure engineered for hygiene, chemical resistance, and structural longevity. The Epoxy Bonded Steel Bolted Tank represents the most advanced solution for this challenging beverage industry sector.

By providing a factory-fused barrier that resists organic acids and by incorporating the advanced protection of Aluminum Dome Roofs, these tanks ensure that juice waste is managed with absolute security. They offer a high-strength, low-maintenance, and scalable solution that protects the environment and ensures the continued success of the juice and beverage production industry.
