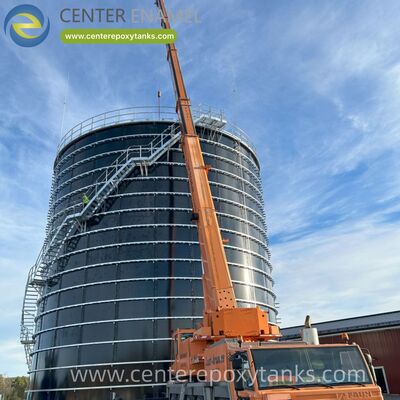

Epoxy Bonded Steel Bolted Tanks as Paper Mill Wastewater Tank: Engineered to withstand high fiber content and abrasive pulp residues.

Epoxy Bonded Steel Bolted Tanks as Paper Mill Wastewater Tank: Engineered to withstand high fiber content and abrasive pulp residues.

The pulp and paper industry is one of the most water-intensive sectors in the global economy, generating massive volumes of wastewater that contain a complex array of organic and inorganic constituents. Paper mill effluent is uniquely challenging; it is characterized by high concentrations of suspended solids, residual wood fibers, lignins, and various chemical additives used in the bleaching and sizing processes. These waste streams are not only chemically aggressive due to fluctuating acidity levels but also physically abrasive because of the grit and pulp residues they carry.

In a paper mill environment, containment vessels are subjected to constant wear and chemical attack. Traditional concrete tanks often suffer from surface erosion and cracking, while standard field-welded steel tanks can experience rapid localized corrosion at the seams, where the mechanical stress of mixing and the chemical load are most intense. To ensure a durable and reliable waste management system, modern mills have shifted toward Epoxy Coated Tanks.

Epoxy Bonded Steel Bolted Tanks are specifically engineered to provide a high-strength, inert, and abrasion-resistant environment. By utilizing a factory-applied, thermally fused epoxy barrier, these tanks offer a corrosion-free and robust solution for handling the high fiber content of paper mill runoff. This technology ensures that the structural integrity of the treatment facility remains intact despite the punishing nature of the pulp residues.

The Physical and Chemical Demands of Paper Mill Effluent

Managing wastewater from paper production requires a storage vessel that can address several specific forms of degradation:

Abrasive Pulp and Grit: The high concentration of wood fibers and inorganic fillers in paper mill waste acts as an abrasive medium. During mixing and aeration, these particles can wear down internal coatings. The fusion-bonded epoxy used in these tanks provides a hard, impact-resistant surface that withstands this mechanical wear.

Variable Chemical Load: The pulping and bleaching process involves various chemicals, including sulfides, chlorine compounds, and caustic soda. The resulting wastewater can shift between acidic and alkaline states, necessitating a tank lining with a broad spectrum of chemical resistance.

Lignins and Organic Adhesion: Lignins and other organic compounds in the effluent tend to be sticky and can form thick deposits on tank walls. The smooth, glass-like finish of the epoxy barrier inhibits the adhesion of these fibers, facilitating easier cleaning and more efficient flow.

Thermal Fluctuations: Many paper mill processes involve high temperatures, and the resulting wastewater is often discharged while still warm. The tank coating must possess high thermal stability to maintain its bond with the steel substrate during temperature cycles.

By utilizing Epoxy Coated Tanks, paper mills invest in a solution that is specifically designed to neutralize these physical and chemical threats.

Precision Engineering: The Fusion Bonded Epoxy Process

The reliability of the Epoxy Bonded Steel Bolted Tank is built into the manufacturing process. Unlike conventional paints, the coating for these tanks is applied in a high-tech factory environment where every variable is strictly controlled.

The process begins with the precision preparation of high-strength steel panels. Each panel is grit-blasted to achieve a near-white finish, creating an ideal surface anchor profile for the coating. A high-performance epoxy powder is then electrostatically applied. The panels are cured in high-temperature ovens where the powder melts, flows, and undergoes a chemical cross-linking reaction, molecularly fusing with the steel.

This results in a dense, uniform, and incredibly tough barrier. Because the panels are coated before assembly, every edge and pre-punched bolt hole is fully protected. In the bolted system, these panels are joined on-site using specialized high-strength fasteners and industrial-grade sealants, creating a liquid-tight structure that is immune to the corrosive and abrasive nature of paper mill waste.

Integrating Aluminum Dome Roofs for Enhanced Performance

In the paper industry, managing the atmosphere within the tank is essential for odor control and structural longevity. This is why the integration of Aluminum Dome Roofs has become a standard feature for high-performance wastewater systems:

Corrosion Resistance in the Vapor Space: The humid environment above the wastewater, often containing corrosive gases, is highly aggressive toward standard steel roofs. Aluminum is naturally resistant to these vapors, providing a corrosion-free and maintenance-free cover.

Odor and Emission Control: Paper mill waste can release sulfurous odors and other volatile compounds. Aluminum Dome Roofs provide a secure, gas-tight seal that traps these odors, ensuring the facility complies with environmental regulations and maintains good community relations.

Lightweight Clear-Span Design: The geodesic design of the aluminum dome provides exceptional strength while remaining lightweight. Its clear-span nature means there are no internal support columns that would be exposed to the abrasive and corrosive effluent, simplifying internal maintenance and mixing.

Weather Resilience: The dome protects the treatment process from heavy rainfall and snow, preventing the unwanted dilution of the wastewater and ensuring a consistent treatment cycle.

Modular Versatility and Rapid Installation

For a large-scale paper mill, minimizing construction time is vital. One of the primary advantages of the bolted tank system is its rapid installation. Because the components are prefabricated, the on-site assembly is fast and efficient, requiring no on-site welding or extensive scaffolding.

Furthermore, the modular nature of the Epoxy Bonded Steel Bolted Tank allows for future expansion. If a mill increases its production capacity, these tanks can often be heightened by adding more rings of panels. This makes the system an economical and flexible investment for growing industrial operations.

Project Cases: Proven Performance in Industrial Wastewater

The following non-fictitious projects illustrate the successful implementation of our Epoxy Coated Tanks in demanding industrial and large-scale waste management environments:

Ethiopia Textile Industrial Park Wastewater Treatment Project: This project required a high-integrity solution to handle chemically complex and aggressive industrial effluents. The facility utilized 3 units of tanks to provide a robust and durable environment for wastewater management.

Sichuan Chengdu Wastewater Treatment Plant Project: To support the massive waste management needs of a major metropolitan area, this project deployed a high-capacity system featuring 16 units of tanks. This project demonstrates the structural stability and modular efficiency required for large-volume industrial waste processing.

Saudi Municipal Sewage and Industrial Waste Project: Operating in extreme temperatures, this project required tanks that could resist both internal chemical aggression and external heat. The facility utilized 5 units of tanks, ensuring a secure and corrosion-free solution for handling aggressive waste streams.

Conclusion: A Robust Solution for Pulp and Paper Waste

The effective management of high-fiber and abrasive paper mill wastewater requires infrastructure that is engineered for resilience. The Epoxy Bonded Steel Bolted Tank represents the most advanced solution for this challenging industry.

By providing a factory-fused barrier that resists abrasion and chemical attack, and by incorporating the advanced protection of Aluminum Dome Roofs, these tanks ensure that paper mill waste is managed with absolute security. They offer a high-strength, low-maintenance, and scalable solution that protects the environment and ensures the continued success of the global paper industry.
