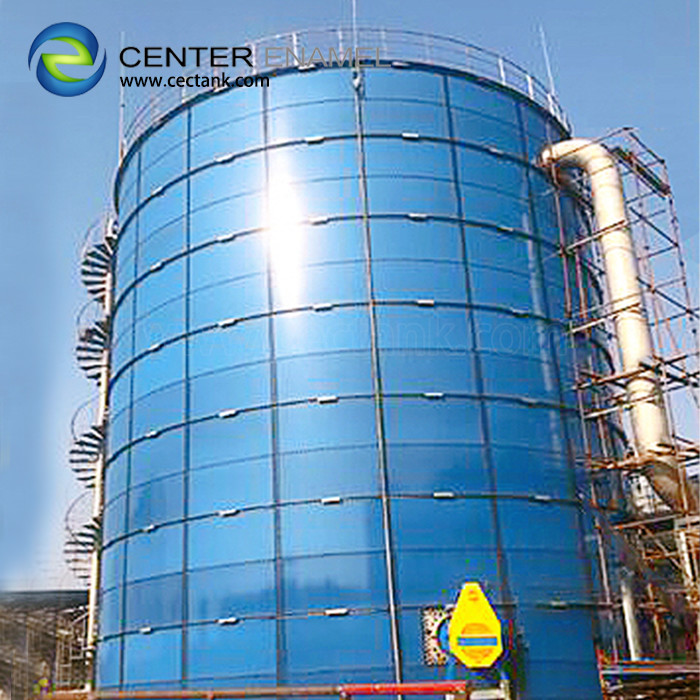

BSCI Bolted Steel Tanks For Chemical Waste Water Treatment Plant

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI
Model Number: W20160831001
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 30 days after deposit received
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI Model Number W20160831001
Foundation: Concrete Or Glass Fused Steel Tank Body: Glass Fused To Steel
Service Life: ≥30 Years Holiday Test: >1500v
Tank Material: Glass Fused To Steel Corrosion Integrity: Excellent
High Light:

BSCI Bolted Steel Tanks

,

Waste Water Treatment Bolted Steel Tanks

,

Glass Fused Bolted Steel Tanks

Product Description

Bolted Steel Tanks for Chemical Waste Water Treatment Plant



Bolted steel tanks are the leader of water storage solutions, which is widely used as Waste Water Storage Tanks for Biogas Plant, chemical wastewater treatment plant, Waste Water Treat Plant (WWTP) etc. With the advantage of both GLASS and STEEL, Glass lined waste water storage tanks can resist corrosion of Waste Water of PH 1 - 14. our glass lined waste water storage tanks engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the glass lined waste water storage tanks structure's adequate security in long-term service life.



Bolted Steel Tanks Specification



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,

salt fox, organic and inorganic compounds





China Bolted Steel Tanks Manufacturer

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.



Products and Accessories



The glass lined waste water storage tanks are delivered as a complete package.

The standard set of glass lined waste water storage tanks include:

1. Glass fused to steel sheets

2. Self - Locking Bolts

3. Sealant



Below are also available accessories / parts for customer’s option:

1. Roofs

2. Manholes

3. Walkways

4. Working Platform

5. Ladders
