The aeration tank uses the activated sludge method for wastewater treatmen

China Shijiazhuang Zhengzhong Technology Co., Ltd certification
China Shijiazhuang Zhengzhong Technology Co., Ltd certification
It is really a great pleasure to work with this company ,I can always get the solution timely and on budget

—— Micheal Jonson

Highly recommend this company ! I am a water and wastewater project contractor ,.I am so glad to find such a trustworthy tank supplier .

—— Martin Jäger

Good service ,very patient to help me find the best solution .I will buy more tanks from them in the near future .

—— William Koh

The GFS tank are very durable and very strong enough. The installation work are very simple and rapid for this work job. Overall, the GFS tank are highly recommend

—— HW Chua

I'm Online Chat Now

The aeration tank uses the activated sludge method for wastewater treatmen

The aeration tank uses the activated sludge method for wastewater treatmen
The aeration tank uses the activated sludge method for wastewater treatmen
video play

Large Image :  The aeration tank uses the activated sludge method for wastewater treatmen

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Adhesion: 3,450N/cm
Service Life: ≥30 Years Steel Grade: ART 310
Size Of Panel: 2.4M * 1.2M Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14
Capactiy Available: 20 M3 To 20,000 M3 Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.
Easy To Cle: Smooth, Glossy, Inert, Anti-adhesion Warranty Period: 2 Years Free Of Charge
Impact Resistance: Excellent Foundation: Concrete Or Glass Fused Steel
Installation: By Jacking Machine Or Steel Pole, Fast In Installation

Aeration Tank

The aeration tank uses the activated sludge method for wastewater treatment, and a certain retention time of wastewater is provided in the tank to meet the oxygen content required by aerobic microorganisms and the mixing conditions for full contact of wastewater and activated sludge. The aeration tank is actually a biochemical reaction tank, where microorganisms, air, and water are in contact and mixed, and the pollutants in the wastewater are decomposed and oxidized by the microorganisms, and then removed, so that the water quality is purified. The aeration tank is mainly composed of three parts: tank body, aeration system, and water inlet and outlet. Aeration is the most critical part of the activated sludge treatment system. The quality of the aeration storage tank design directly affects the quality of wastewater treatment. Sufficient and evenly distributed oxygen supply in the aeration system is the key to rapid, economically feasible, and effective treatment of wastewater.

Aeration Tank


Aeration provides oxygen to bacteria to treat and stabilize wastewater. Bacteria need oxygen to biodegrade. Bacteria in wastewater use the supplied oxygen to decompose carbon-containing organic matter to form carbon dioxide and water. Without enough oxygen, bacteria cannot biodegrade the incoming organic matter within a reasonable time. In the absence of dissolved oxygen, degradation must occur under septic conditions, which are slow, odorous, and produce an incomplete conversion of pollutants. Under septic tank conditions, some biological processes convert hydrogen and sulfur into hydrogen sulfide and carbon into methane. Other carbon will be converted into organic acids, creating low pH conditions in the basin, making the water more difficult to handle, and promoting the formation of odors. The biodegradation of organic matter under anaerobic conditions is a very slow biological process.

Our Storage tanks


Storage tanks Volume Roofs Accessories Application
GFS Tanks
SS Tanks
Steel Tanks
20-20000m³ ADR Roof
GFS Roof
Membrane Roof
FRP Roof
Trough Deck Roof
Three-phase Separator
Biogas Purification System
Wastewater Treatment Project
Drinking Water Project
Municipal Sewage Project
Biogas Project
Fire Water Storage Project
Oil Storage Project



Center Enamel designs, manufactures and installs aeration tanks of 20 cubic meters to 25,000 cubic meters. The aeration tank generally receives pre-treated wastewater, so it is less corrosive than the corresponding original wastewater. However, injecting a large amount of air or oxygen into the aeration tank will aggravate the oxidation phenomenon, so the wastewater storage tank is required to have corrosion resistance. This is why aeration tanks are usually Glass-Fused-to-Steel tanks.

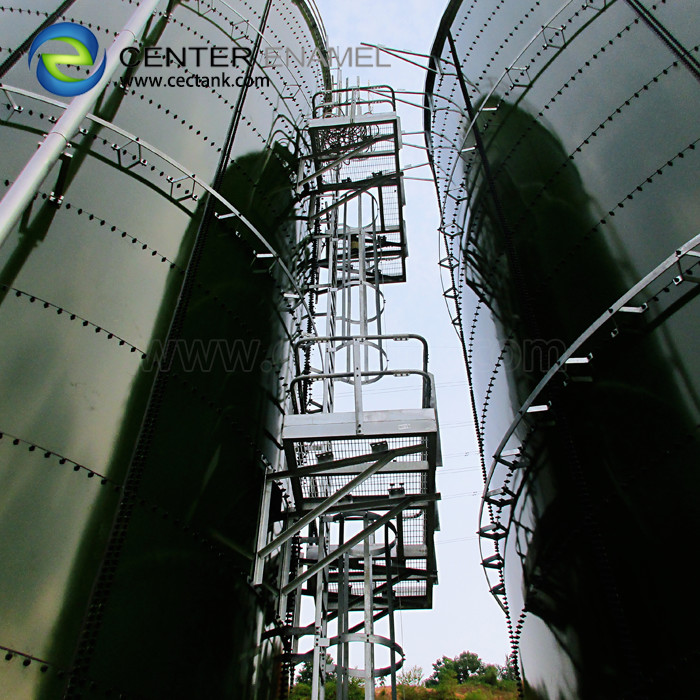

Glass-Fused-to-Steel (GFS) tank, also known as glass-lined steel (GLS) tank, is the best aeration tank option. It has been proven for decades and has more advantages than other types of storage tank construction. After the molten glass is fired at a high temperature of 820°C-930°C, it reacts with the surface of the steel plate to form an inert and inorganic bond, which combines the strength and flexibility of the steel with the excellent corrosion resistance of the glass to create a kind of hardness The inert inorganic coating. Glass-Fused-to-Steel technology is the most advanced technology in the tank market. Center Enamel has more than 30 years in GFS tanks design, manufacturer, and installation. The advantages of GFS tanks include:

Short construction period, cost-effective tank solution

Superior corrosion resistance, service life is more than 30 years

Easy to install, no need for big installation equipment and/or very skilled labors

Tank volume can be easily expanded

It can be dismantled, removed, and relocated

Elegant appearance, tank color can be customized

Center Enamel provides bolted glass fused to steel tanks. Bolted glass fused steel tanks enable us to provide a comprehensive tank solution for all industries to meet the specific needs of each customer. If you have storage tank requirements, send your requirements to our tank specialists.
