Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20171016010 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 10-30 days after deposit received |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20171016010 |
Design Life: | 50years | Capacity: | 20 M3 To 18,000 M3 |
Tank Body Color: | Dark Green / Can Be Customized | Foundation: | Concrete Or Glass Fused Steel |
Size Of Panel: | 2.4M * 1.2M | Usage: | Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect |

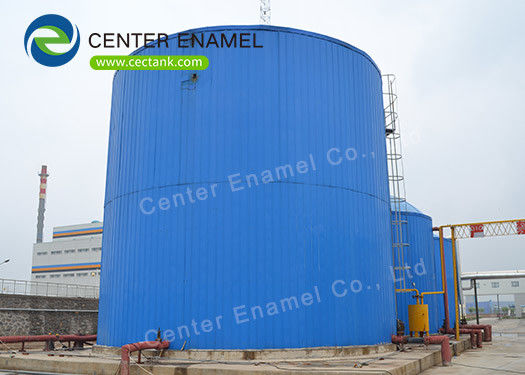

Waste Water Storage Tanks for Waste-to-Energy Technologies with Enamel Roof
What is Waste Water Storage Tanks?
Glass-Fused-to-Steel (GFS), also known as Glass-Lined-Steel (GLS) and Waste Water Storage Tanks, these names all mean the same thing. that the tank panels are fused inside and out with a glass enamel that binds to the metal providing many advantages over standard epoxy coated or welded painted storage tanks.
Waste Water Storage Tanks Specification:
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
GFS Tank Advantages :
- Short construction period, low project cost ;
- Superior corrosion resistance, service life is more than 30 yeas
- Convenient installation, easy construction, good quality
- Tank volume can be easily expanded
- Beautiful appearance, color can be customized
- Not subject to weather conditions
- No need big installation equipment
- Easily expand, dismantle, move
Waste Water Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Waste Water Storage Tanks References
