Bolted Steel Waste Water Storage Tanks And Effluent Holding Tanks For Wastewater Treatment Project

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI
Model Number: W20160831001
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 30 days after deposit received
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI Model Number W20160831001
Foundation: Concrete Or Glass Fused Steel Tank Body: Glass Fused To Steel
Service Life: ≥30 Years Holiday Test: >1500v
Tank Material: Glass Fused To Steel Corrosion Integrity: Excellent
High Light:

AWWA D103 Waste Water Storage Tanks

,

500KN/mm Waste Water Storage Tanks

,

Glass Fused Wastewater Storage Tank

Product Description

Bolted Steel Wastewater Storage Tanks and Effluent Holding Tanks For Wastewater treatment Project



We work with municipal project managers and supervisors to ensure compliance with local, state, and federal regulations, while providing cost-effective solutions that put safety first.



Why the municipal sewage treatment plant choose Bolted Steel Wastewater Storage Tanks and Effluent Holding Tanks?



The service life is more than 30 years with a lower maintenance, Glass-Fused-to-Steel is two materials - Enamel glaze and steel plate surface are fused together after heat treatment at 850-940℃ and then create a tough and inert bond, which combines the strength of steel with the outstanding chemical and physical corrosion resistance of glass. Then it is easy to install , dismantled, removed and relocated,Glass-Fused-To-Steel tank is assembled by Glass-Fused-To-Steel plate and fixed by self - locking bolt. Then the sealing glue is applied to the joint gap and bolt position to improve airtightness of the tank. Also tank’s color can be customized ,which enable Glass Lined Steel Municipal sewage storage tank better integrate with the surrounding environment. That is why so many municipal sewage treatment plant choose Glass-Fused-to-Steel Tank as the municipal sewage storage tank.



Bolted Steel Wastewater Storage Tanks and Effluent Holding Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds



Bolted Steel Wastewater Storage Tanks and Effluent Holding Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass Lined Steel Municipal sewage storage tank manufacturer and supplier in China, but also the most experienced Glass Lined Steel Municipal sewage storage tank manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

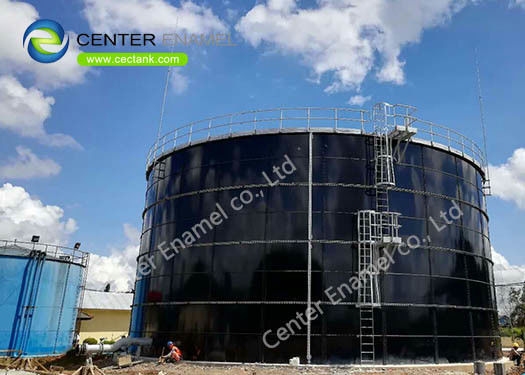

Bolted Steel Wastewater Storage Tanks and Effluent Holding Tanks Project References



Bolted Steel Waste Water Storage Tanks And Effluent Holding Tanks For Wastewater Treatment Project 0
