Bolted Steel Liquid Storage Tanks For Chemical Wastewater Treatment
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160504007 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160504007 |
| Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| Steel Grade: | ART 310 | Roof: | Can Be Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
| Service Life: | Over 30 Years | High Light: | BSCI Bolted Steel Liquid Storage Tanks,25000m3 Liquid Storage Tanks,500KN/mm Liquid Storage Tanks |
Product Description

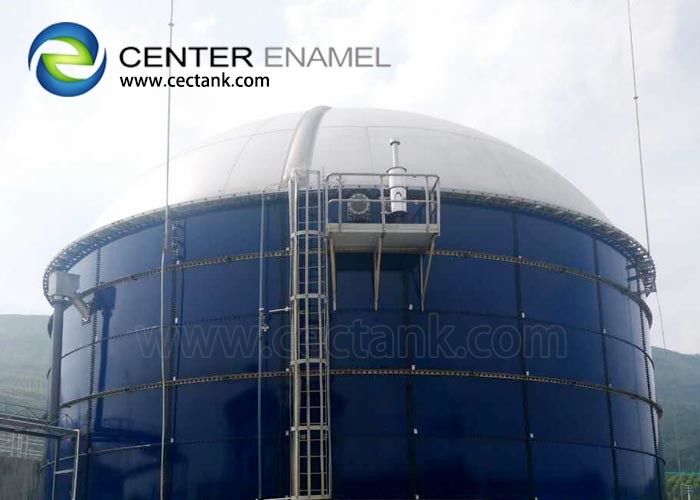

Bolted Steel Liquid Storage Tanks For Chemical wastewater treatment
Center Enamel is your trusted partner for liquid water tanks in China. We specialise in glass fsued to steel tanks with capacities ranging from 20m³ to 25000m³. Our liquid storage tanks are ideal for fire water storage, potable town water storage, commercial rainwater harvesting, stormwater detention, treated water storage for the industrial, mining and agriculture sectors.
We also offer glass fused to steel tanks up to 25000 m³which are an ideal solution for mass storage of treated water, effluent and RO Plants.All our liquid water tanks are quality tested and manufactured in our factory under a quality management system certified to ISO 9001.
Bolted Steel Liquid Storage Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Now our bolted steel liquid storage tanks that meats NSF61 certification to ensure the safety of drinking water, and also the design comply with AWWA D103 – 09, OSHA, Europe standards and Australia standards. We have the most advanced production line in China, which secure the quality and the quantity of our Glass Lined Steel Liquid Storage Tanks. All of our steel sheets is Ti-rich ATR 310 ( Enamel special steel sheet ) greatly improve the corrosion resistance and solve the fish scale of normal steel sheet. Meanwhile, the ATR 310 enamel special steel sheet which is our patent since 2005, working with one of the largest steel company “ Angang ” in china.
Bolted Steel Liquid Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Bolted Steel Liquid Storage Tanks Project References
