Anti Adhesion Bolted Steel Industrial Waste Water Storage Tanks

Anti Adhesion Bolted Steel Industrial Waste Water Storage Tanks
Anti Adhesion Bolted Steel Industrial Waste Water Storage Tanks

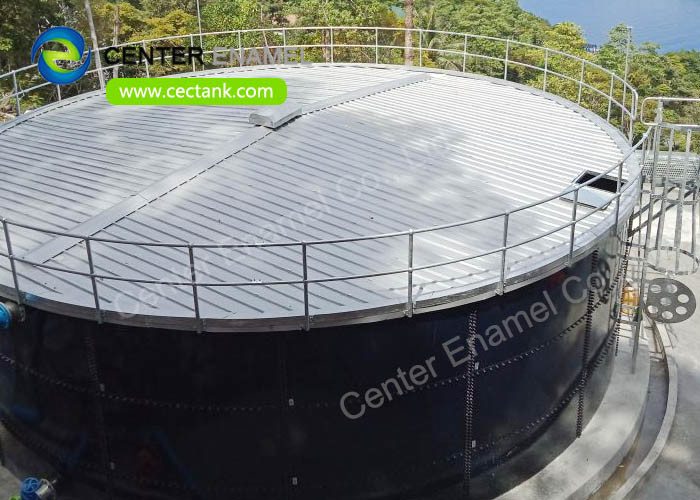

Large Image :  Anti Adhesion Bolted Steel Industrial Waste Water Storage Tanks

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Corrosion Integrity: Excellent Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure
Size Of Panel: 2.4M * 1.2M Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Feature: Eco-friendly, Durability Steel Grade: ART 310
High Light:

3 450N/cm Waste Water Storage Tanks

,

0.4mm Coating Waste Water Storage Tanks

Bolted Steel industrial wastewater storage tank For WasteWater Treatment



Center Enamel has 30 years of experience in designing, manufacturing and installing bolted industrial wastewater tanks. Our bolted industrial wastewater storage tanks are suitable for all stages of wastewater treatment, including mixing tanks, flocculation tanks, sedimentation tanks, etc.



Center Enamel ’s bolted industrial sewage storage tanks can be transported globally in compact, easy-to-manage packaging or containers, thereby reducing freight costs and facilitating handling. Damaged or corroded parts can be easily replaced without expensive tools or equipment.

Bolted Steel industrial wastewater storage tank is assembled by Glass-Fused-To-Steel plate and fixed by self - locking bolt. Then the sealing glue is applied to the joint gap and bolt position to improve airtightness of the tank. The service life of Glass-Fused-To-Steel tank is more than 30 years, because the Enamel glaze and steel plate surface are fused together after heat treatment at 850-940℃ and then create a tough and inert bond, which combines the strength of steel with the outstanding chemical and physical corrosion resistance of glass.



Bolted Steel industrial wastewater storage tank Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds



Bolted Steel industrial wastewater storage tank Manufacturer

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.



Bolted Steel industrial wastewater storage tank Project References



Anti Adhesion Bolted Steel Industrial Waste Water Storage Tanks 0
