500KN/Mm Waste Water Storage Tanks Concrete Or Glass Fused Steel Foundation
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Corrosion Resistance: | Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds | Elastic: | Same As Steel Sheet ,around 500KN /mm |
| Tank Body Color: | Dark Green / Can Be Customized | Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External |
| Foundation: | Concrete Or Glass Fused Steel | Steel Grade: | ART 310 |
| High Light: | Glass Fused Steel Waste Water Storage Tanks,0.25mm Coating Waste Water Storage Tanks,500 KN/Mm Wastewater Storage Tanks |
||
Product Description
Center Enamel provides a reliable, durable and high-quality wastewater storage solution
In recent years, wastewater treatment technology has been rapidly developed. The purpose of the water treatment process is to remove the pollutants present in the water, or reduce the concentration of such pollutants, so that the water is suitable for its desired end use. One of the most important uses is to return the used water to the natural environment without affecting the ecology.
Wastewater storage tanks are not only used to store wastewater, but also widely used in other industries such as light industry, sewage treatment plants, and environmental protection projects. The sewage storage tank is an important part of the sewage treatment system. The flyer steel water tank can be used to store industrial waste water, domestic sewage and biogas.
Center Enamel provides a reliable, durable and high-quality wastewater storage solution.
Center Enamelglass lined steel wastewater storage tank is the best option for wastewater storage. Center Enamel's glass lined steel wastewater storage tank engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our GFS tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc.,
Glass Lined Steel Wastewater Storage Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |

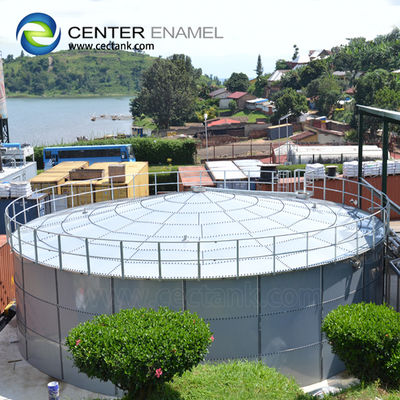

Glass Lined Steel Wastewater Storage Tanks
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Lined Steel Wastewater Storage Tanks Project References
