ART 310 20000m3 Waste Water Storage Tanks Effluent Treatment

ART 310 20000m3 Waste Water Storage Tanks Effluent Treatment
ART 310 20000m3 Waste Water Storage Tanks Effluent Treatment

Large Image :  ART 310 20000m3 Waste Water Storage Tanks Effluent Treatment

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Adhesion: 3,450N/cm
Service Life: ≥30 Years Steel Grade: ART 310
Size Of Panel: 2.4M * 1.2M Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14
Capactiy Available: 20 M3 To 20,000 M3 Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.
Easy To Cle: Smooth, Glossy, Inert, Anti-adhesion Warranty Period: 2 Years Free Of Charge
Impact Resistance: Excellent Foundation: Concrete Or Glass Fused Steel
Installation: By Jacking Machine Or Steel Pole, Fast In Installation
High Light:

20000m3 Waste Water Storage Tanks

,

ART 310 Waste Water Storage Tanks

,

Fused Steel Waste Water Storage Tanks

Center Enamel have supplied wastewater storage tanks for hundreds of wastewater projects applications



Wastewater Storage Tanks



Center Enamel have supplied wastewater storage tanks for hundreds of wastewater projects applications ranging from flow equalization, clarification, biological treatment, and sludge storage to digestion.Center Enamel understands the challenges involved in providing cost-efficient, durable storage tanks that can withstand the rigorous wastewater service requirements. Our quality of construction and ability to adapt special components for each facility’s unique needs are unparalleled.



The best option for wastewater stroage is glass fused to steel tanks, After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market.



wastewater storage tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds



wastewater storage tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

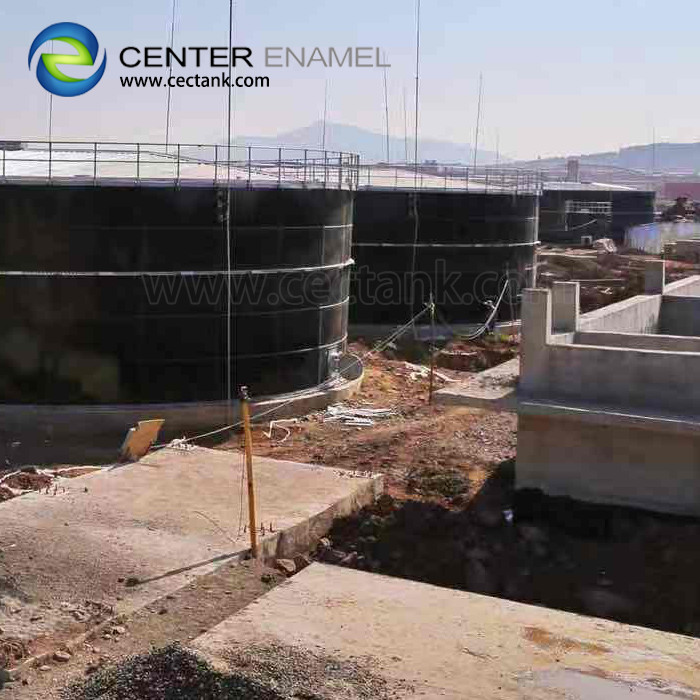

wastewater storage Tanks Project Reference




ART 310 20000m3 Waste Water Storage Tanks Effluent Treatment 0
