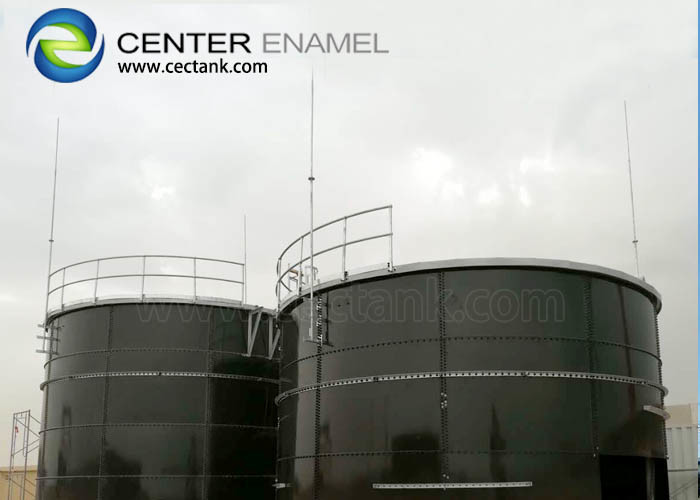

18000m3 Bolted Steel Municipal Wastewater Storage Tank
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161227001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161227001 |
| Adhesion: | 3,450N/cm | Service Life: | ≥30 Years |
| Holiday Test: | >1500v | Elastic: | Same As Steel Sheet ,around 500KN /mm |
| Capacity: | 20 M3 To 18,000 M3 | Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External |
| High Light: | 18000m3 Wastewater Storage Tank,500KN /mm Wastewater Storage Tank |
||
Product Description
Center Enamel Bolted Steel Wastewater Storage Tank For Municipal Water & Wastewater Treatment
Bolted Steel Wastewater Storage Tank is a unique tank finish. Glass fused to steel tanks provide steel strength with corrosion resistant glass, inside and outside.
Bolted Steel Wastewater Storage Tank is not strictly a coating, but a combination of the two materials that provides excellent life protection in almost all water and wastewater applications. It has also been variously described as glass lined steel (GLS), glass coated steel (GCS) or glass enamel steel , but it is nevertheless described as the ultimate solution for tanks and silos.
Center Enamel is internationally recognized as the world's leading manufacturer of Glass-Fused-to-Steel tanks. All inner surfaces are 100% inspected by the factory to further improve product quality. Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments. This system has been proven over many decades on thousands of installations, and is supported by International Standards which cover the design and finish requirements.
Bolted Steel Wastewater Storage Tank Specififcations
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Bolted Steel Wastewater Storage Tank Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Bolted Steel Wastewater Storage Tank Project References
