Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20160504007 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160504007 |
Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
Steel Grade: | ART 310 | Roof: | Can Be Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
Service Life: | Over 30 Years | High Light: | Customized Glass Lined Water Storage Tanks,0.25mm Glass Lined Water Storage Tanks,AWWA glass lined steel tanks |

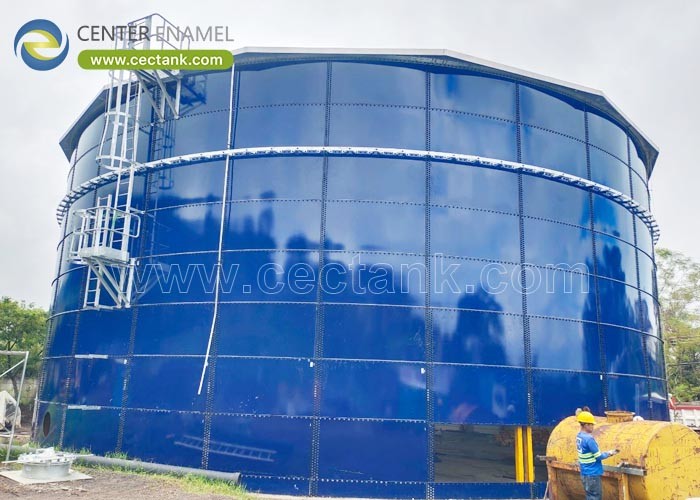

Customized Glass Lined Water Storage Tanks with AWWA D103-09 Design Standard
The glass lined steel tanks, also known as the glass fused to steel tanks, is composed of enamel plate, special sealant, self-locking bolts and so on. Enamels are two materials that are combined by chemical and physical processes. Enamel coating is a traditional anticorrosive process for steel plates. Glass fused steel waste water storage tank beautiful appearance, fine texture. Central Enamel is the first and most experienced manufacturer of glass fused steel tanks in Asia. The quality of our glass molten steel tank has reached the international standard, and has been successfully used in various projects, agricultural sewage, municipal sewage treatment, biogas projects, etc. In water and industrial wastewater treatment and biogas engineering, glass fused steel wastewater storage tank is widely used in various aerobic anaerobic reactors, such as UASB, EGSB, SBR, BAF, USR, CSTR, as well as equalization tank, clarifier, sludge tank, etc.
High quality, safe structure
Through rigorous high pressure testing, it provides "zero defect quality", so all panels are free of substandard enamel thickness, Hoidays and bubbles.
30 years design life
Glass is fused to steel plates at temperatures in excess of 800 degrees Celsius, ensuring the highest levels of performance such as corrosion resistance, acid resistance and strength.
High cost performance, high efficiency, good performance
Of the five different glass coatings, the most appropriate coatings and cost-effectiveness are always selected for a specific application, purpose of use and climatic conditions. The type of roof can also be chosen according to specific applications such as glass-lined steel, PVC and aluminum.
Glass Fused to Steel Wastewater Storage Tanks Specification
Coating Color | Standard dark green and blue or customized |
Coating thickness | 0.25-0.45mm |
Acid and alkalinity proof | Standard PH: 3~11, Special PH:1~14 |
Adhesion | 3.450N/cm |
Hardness | 6.0 (Mohs) |
Service life | ≥30 Years |
Holiday test | >1500V |
Permeability | Gas liquid impermeable |
Easy to clean | Smooth, glossy, inert, anti-adhesion |
Corrosion resistance | Excellent, suitable for wastewater, salt water, sea water, high sulfur crude oil, salt fog organic and inorganic compounds |
Glass Fused to Steel Wastewater Storage Tanks Advantages
1. Short construction times
2. Tank volume can be expanded
3. Superior corrosion resistance
4. Easy to be shipped, relocated, dismantled
5. No need crane or other large equipment for erection
6. Beautiful appearance
7. Low project cost, more cost effective
8. Enameled surface is durable when exposed to the rigid environment
About Center Enamel
Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
