1500v Holiday Test Glass Fused To Steel Liquid Storage Tanks
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Adhesion: | 3,450N/cm |
| Service Life: | ≥30 Years | Steel Grade: | ART 310 |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Size Of Panel: | 2.4M * 1.2M |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
| Capactiy Available: | 20 M3 To 20,000 M3 | Feature: | Eco-friendly, Durability |
| Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Chemical Resistance: | Excellent |
| High Light: | 20 m3 Liquid Storage Tanks,6.0 Mohs Liquid Storage Tanks |
||
Product Description

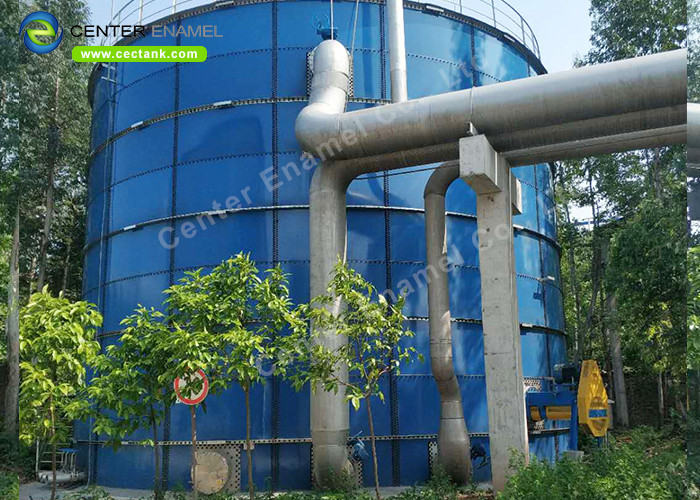

1500v Holiday Test Glass Fused to Steel Liquid Storage Tanks
Our glass fused to steel liquid storage tanks are ideal for many liquid storage applications. Liquid storage tanks can storage liquid safely and conveniently.Choose from glass fused to steel liquid storage tanks that are corrosion resistant, lightweight and durable. Liquid storage tanks mainly consist of glass fused to steel plates. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond. Combing the strength and flexibility of steel and the corrosion resistance of glass, the glass fused to steel plates can resist PH range from 1 to 14, which allows glass fused to steel plates used for various storage applications.
Glass Fused to Steel Liquid Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Our Advantages
Enameling Technology R&D Ability
With more than 30 years experience in the enameling industry
Strict Engineering Design Standard- AWWA D103-09, OSHA
The only GFS tanks manufacturer in China which can enter the US market
Professional Experience with International Market
Successful GFS tanks projects in more than 65 countries worldwide
Cooperate with Well-known Corporations
Coca-Cola, CECEP, Heineken, AbInBev, VEOLIA, Sinopec, Nine Dragons Paper etc.
Glass Fused to Steel Liquid Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 65 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Fused to Steel Liquid Tanks Project
