Bolted Steel Above Ground Storage Tanks For Industrial Wastewater Treatment Plant
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161124013 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161124013 |
| Coating Thickness: | 0.25mm~0.40mm & Double Coating | Service Life: | ≥30 Years |
| Tank Material: | Glass Fused To Steel | Steel Grade: | ART 310 |
| High Light: | water treatment tank,sewage treatment tank |
||
Product Description

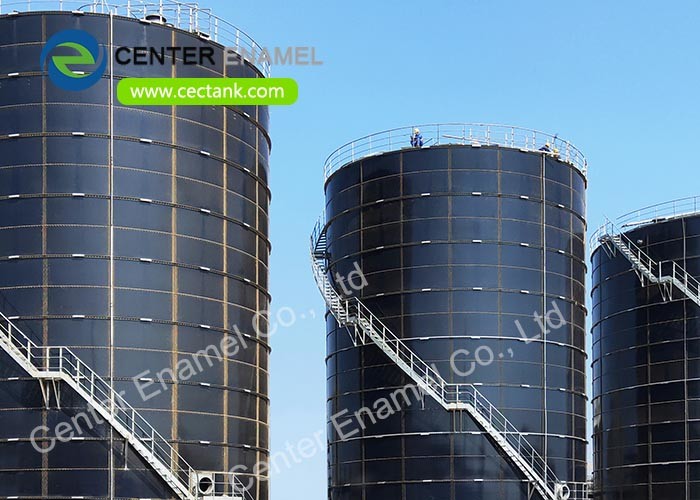

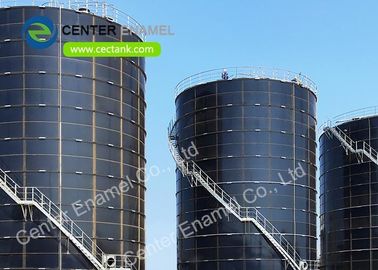

Bolted Steel Above Ground Storage Tanks For Industrial Wastewater Treatment Plant
bolted Steel Above Ground Storage Tanks, also known as Glass Fused to Steel Tank, consists of enamel sheets, special sealants, self-locking bolts. Enamel sheet is two materials combined together by chemical and physical processing. Enamel coating is the traditional anti-corrosion technology for steel plate. bolted Steel Above Ground Storage Tanks have beautiful appearance, delicate texture. Center Enamel is the first and most experienced Glass-Fused-to-Steel Tanks manufacturer in Asia. Our Glass-Fused-to-Steel tank quality can reach international standards, and already have been successfully applied in various engineering, agricultural sewage, urban wastewater treatment and biogas engineering. In water and industrial wastewater treatment and biogas project, bolted Steel Above Ground Storage tanks have been widely used as various aerobic and anaerobic reactors of UASB,EGSB,SBR,BAF,USR,CSTR, and equalization tank, clarifier, sludge holding tank, etc.
Center Enamel bolted Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC bolted Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel bolted Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
bolted Steel Above Ground Storage Tanks Specification
| Coating Color | Standard dark green and blue or customized |
| Coating thickness | 0.25-0.45mm |
| Acid and alkalinity proof | Standard PH: 3~11, Special PH:1~14 |
| Adhesion | 3.450N/cm |
| Hardness | 6.0 (Mohs) |
| Service life | ≥30 Years |
| Holiday test | >1500V |
| Permeability | Gas liquid impermeable |
| Easy to clean | Smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | Excellent, suitable for wastewater, salt water, sea water, high sulfur crude oil, salt fog organic and inorganic compounds |
bolted Steel Above Ground Storage Tanks Advantages
1. Short construction times
2. Tank volume can be expanded
3. Superior corrosion resistance
4. Easy to be shipped, relocated, dismantled
5. No need crane or other large equipment for erection
6. Beautiful appearance
7. Low project cost, more cost-effective
8. Enameled surface is durable when exposed to the rigid environment
