Bolted Steel Potable Water Storage Tanks AWWA D103-09 Standard

Bolted Steel Potable Water Storage Tanks AWWA D103-09 Standard
Bolted Steel Potable Water Storage Tanks AWWA D103-09 Standard

Large Image :  Bolted Steel Potable Water Storage Tanks AWWA D103-09 Standard

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20161124014
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Adhesion: 3,450N/cm Hardness: 6.0Mohs
Holiday Test: >1500v Permeability: Gas / Liquid Impermeable
High Light:

bolted steel water storage tanks

,

welded steel tanks

AWWA D103-09 Design Standard Bolted Steel Potable Water Storage Tanks



Center Enamel's bolted steel potable water storage tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our bolted steel tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life. The steel round (cylindrical) shell of the tank is built from two-layer enameled sheets coated on both sides. The sheets are attached with special high-grade bolts and sealed by constantly flexible silicone (sealant). The surface of connecting material and the shell itself are properly treated. It has been recognized that glass fused tank as an excellent tank for water and wastewater treatment



Bolted potable water tanks are made Glass-Fused-to-Steel that are manufactured and finished offsite, greatly reducing the time and labor involved in the field. Once delivered, each section is erected, sealed with gaskets and bolted to adjacent sections. This results in an installation process that is quick and easy, far faster than installation of concrete or welded tanks, and it is not subject to the weather delays that often stall the installation of competing designs.



Bolted Steel Potable Water Storage Tanks Specifications



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds









Bolted Steel Potable Water Storage Tanks Manufacturer

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

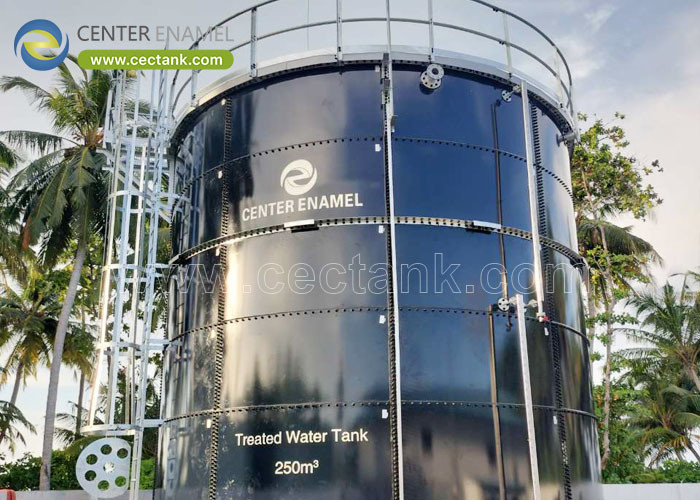

Bolted Steel Potable Water Storage Tanks Project References



Bolted Steel Potable Water Storage Tanks AWWA D103-09 Standard 0
