Liquid Storage Bolted Steel Tanks With Acid And Alkalinity Proof

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Permeability: Gas / Liquid Impermeable Elastic: Same As Steel Sheet ,around 500KN /mm
Capacity: 20 M³ To 20,000 M³ Tank Body Color: Dark Green / Can Be Customized
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Tank Material: Glass Fused To Steel
High Light:

bolted steel water storage tanks

,

welded steel tanks

Product Description



Bolted Steel liquid storage tanks



Center Enamel is the first bolted steel liquid storage tank manufacturer in China. In the past 30 years, We have designed, manufactured and installed our bolted steel liquid storage tanks for more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. Center Enamel is not only the first bolted steel liquid storage tanks manufacturer and supplier in China, but also the most experienced bolted steel liquid storage tanks manufacturer in all of Asia. We offer 30m³ to 20000m³ tanks to meet any kind of industry requirement.

Modular Construction

The bolted steel liquid storage tank is made of Glass-Fused-to-Steel, which combines the strength and flexibility of steel and the corrosion resistance of glass. The modular construction of bolted steel liquid storage tanks allows it to be quickly erected. Normally, the installation is very quick, often requiring less than a third of the time it typically takes to complete a welded or a concrete tank. bolted steel tanks are manufactured and finished in our factory, which allows each section to be formed according to strict structural specifications, with quality bends, welds and surface preparations that are monitored with comprehensive quality control measures. Once the pretreatment for steels are complete, they are powder-coated in a tightly-controlled environment, which results in a durable finish that virtually eliminates corrosion and maintenance issues, unlike field-welded tanks, which must be finished at the installation site, often resulting in an imperfect and inconsistent finished coating that is susceptible to corrosion and other damage.



bolted steel liquid storage tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds







With Center Enamel, our bolted steel liquid storage tank systems are engineered and fabricated to satisfy your unique specifications, including AWWA D103-09. Our professional engineers who have years of design experience in a wide variety of industry-specific standards and applications. our storage tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the bolted steel liquid storage tank structure's adequate security in long-term service life.

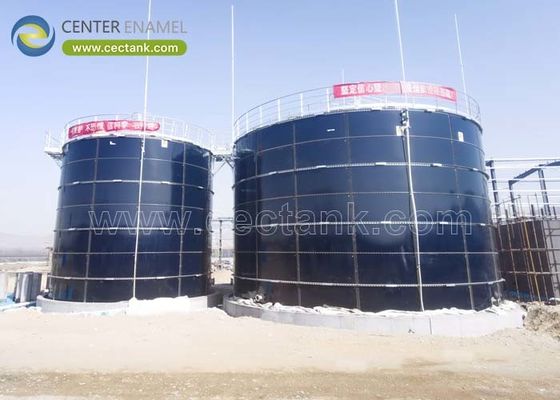

bolted steel Tanks Project Reference



Liquid Storage Bolted Steel Tanks With Acid And Alkalinity Proof 0
